UCFA209-26

Take-up housing unit UCFA209-26

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	41.28 mm	Bore diameter
L	181 mm	Length total
U	52.2 mm	Total height unit
≈m	2.062 kg	Weight

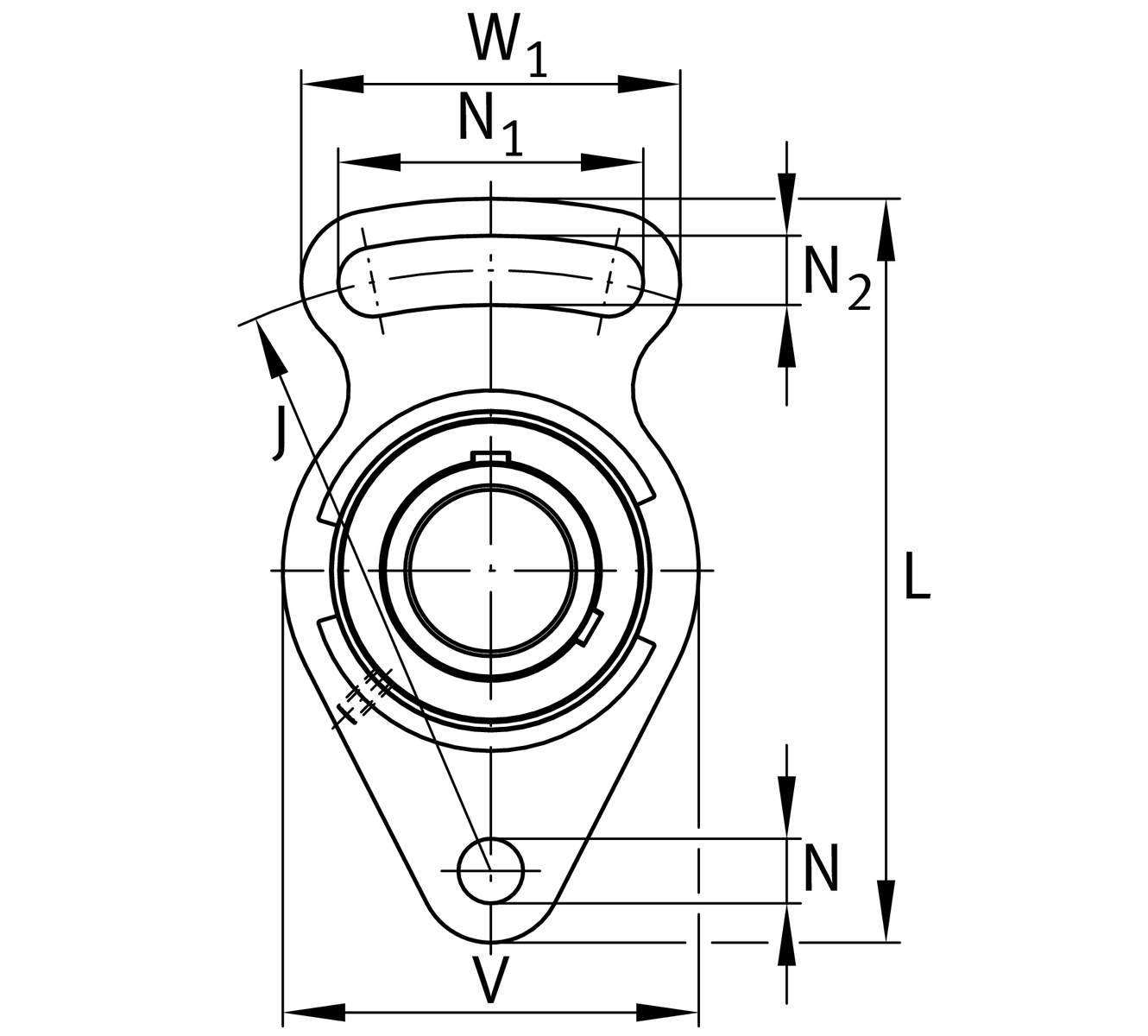

Mounting dimensions

N	16 mm	Fixing bore
N₁	72 mm	Length (slot)
N₂	16 mm	Width (slot)
J	148 mm	Distance fixing bore

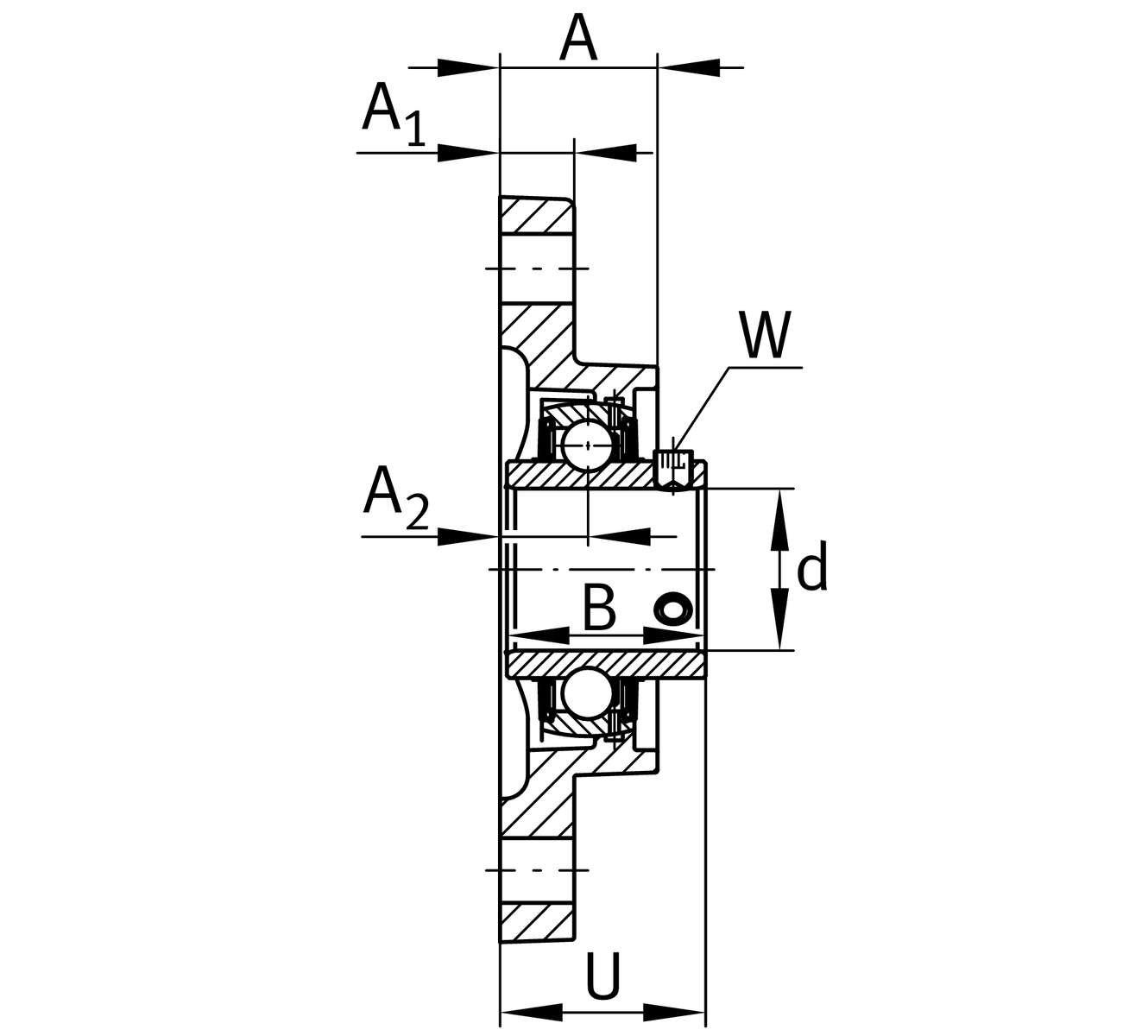

Dimensions

A₁	18 mm	Thickness of flange
A₂	22 mm	Distance raceway
A	38 mm	Height housing
V	108 mm	Shoulder diameter housing
W	90 mm	Width housing slot side
Q	M6	Connection thread for lubrication

Additional information

	FA209	Housing
	UC209-26	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
