GNE40-XL-KRR-B
Radial insert ball bearing GNE40-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
DSP
90 mm
Outside diameter
B
41 mm
Width
Cur
1,360 N
Fatigue load limit, radial
B1
54.6 mm
Locking collar total width
Cr
47,000 N
Basic dynamic load rating, radial
C0r
26,000 N
Basic static load rating, radial
≈m
1.02 kg
Weight

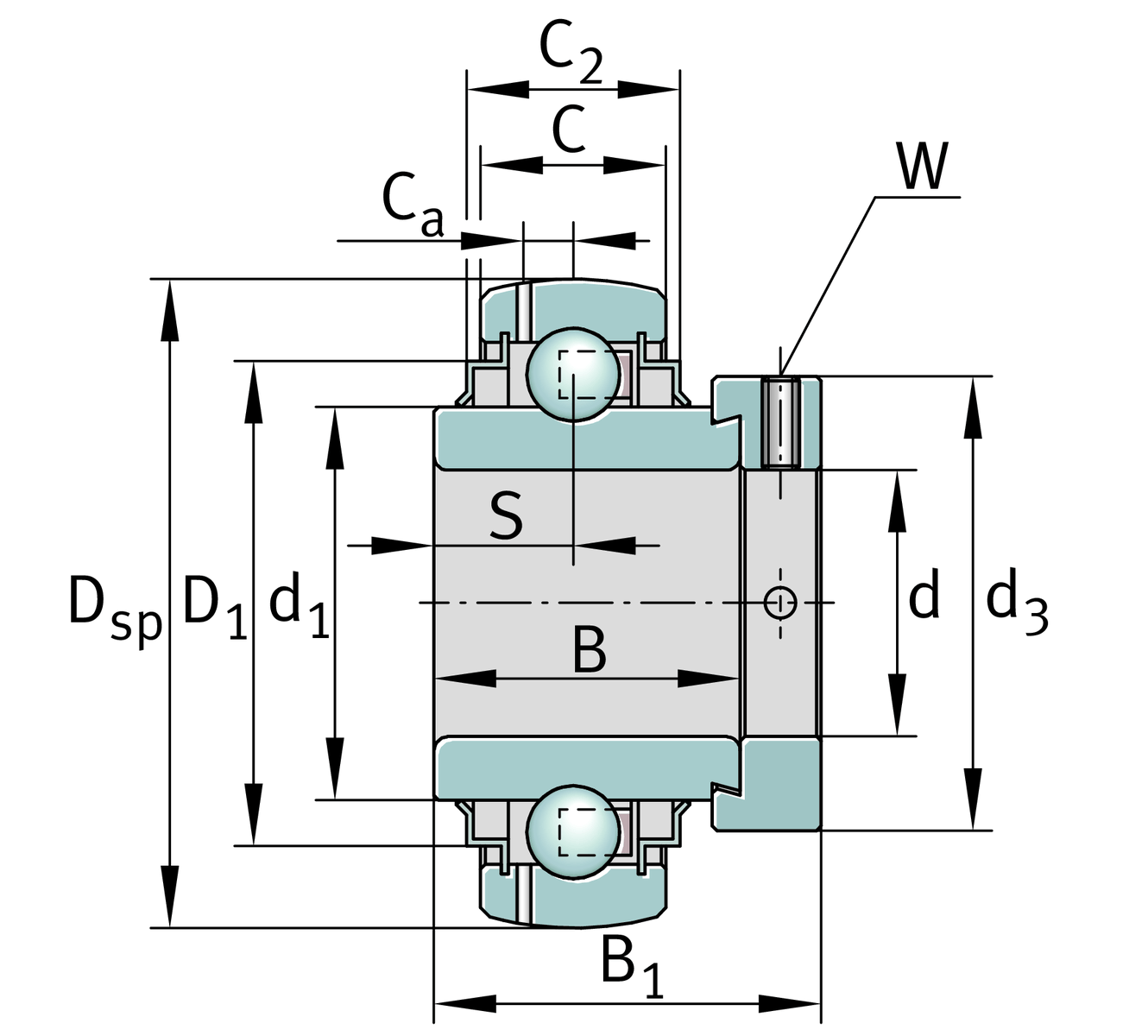

Dimensions
C
23 mm
Width, outer ring
C2
26 mm
Sealing total width
S
18 mm
Distance raceway
d1
53.8 mm
Rib diameter inner ring
D1
74.5 mm
Outside diameter seal
Ca
7.5 mm
Distance to lubrication hole
d3
63 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
12.9
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
