FAG INA Schaeffler
INA
GNE35-XL-KRR-B
Radial insert ball bearing GNE35-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
35 mm
Bore diameter
DSP
80 mm
Outside diameter
B
38.1 mm
Width
Cur
1,090 N
Fatigue load limit, radial
B1
51.6 mm
Locking collar total width
Cr
39,000 N
Basic dynamic load rating, radial
C0r
20,900 N
Basic static load rating, radial
≈m
0.74 kg
Weight

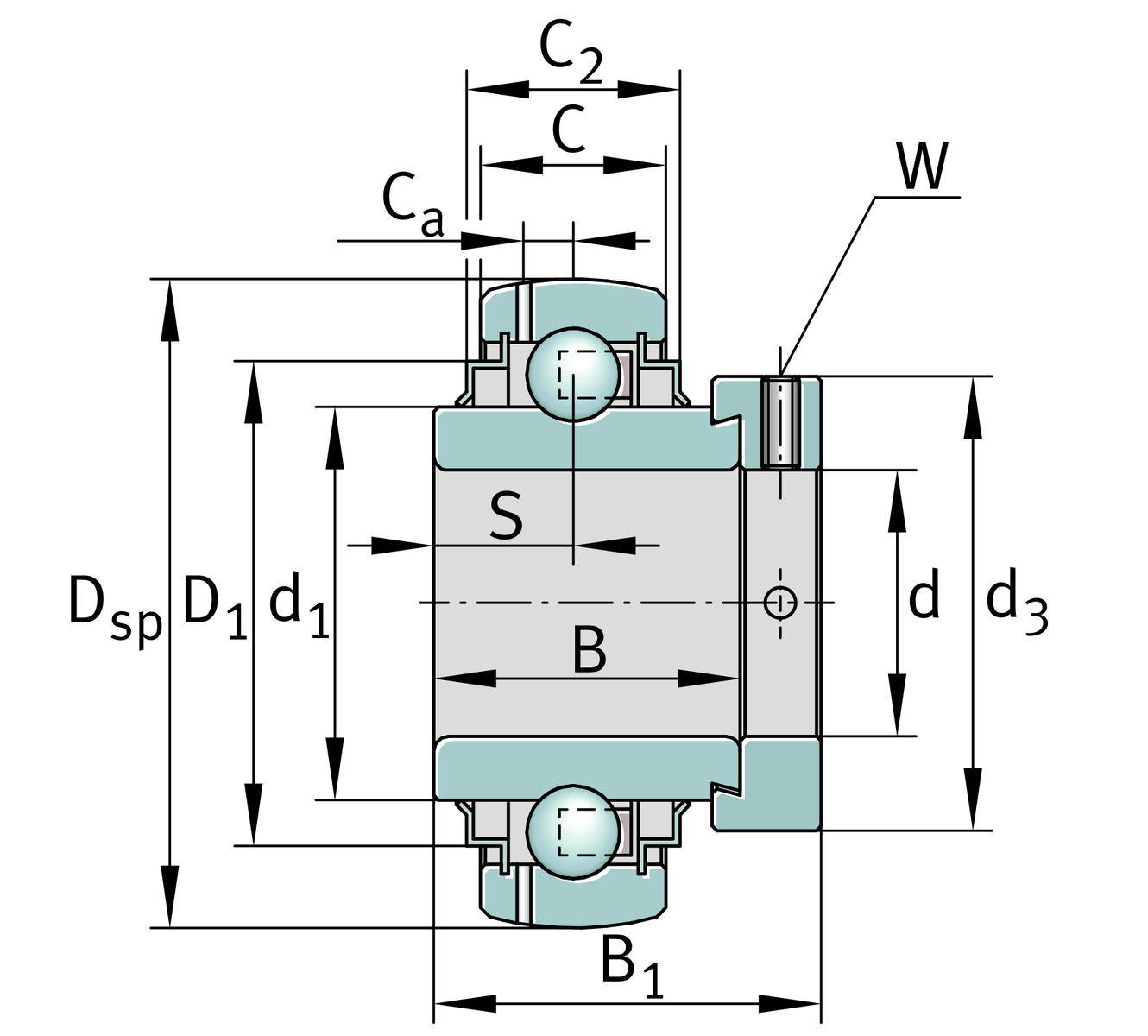

Dimensions
C
22 mm
Width, outer ring
C2
25 mm
Sealing total width
S
18.3 mm
Distance raceway
d1
48 mm
Rib diameter inner ring
D1
66.6 mm
Outside diameter seal
Ca
6.9 mm
Distance to lubrication hole
d3
55 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
12.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
