GNE30-XL-KRR-B
Radial insert ball bearing GNE30-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
72 mm
Outside diameter
B
36.6 mm
Width
Cur
870 N
Fatigue load limit, radial
B1
50.2 mm
Locking collar total width
Cr
29,500 N
Basic dynamic load rating, radial
C0r
16,700 N
Basic static load rating, radial
≈m
0.63 kg
Weight

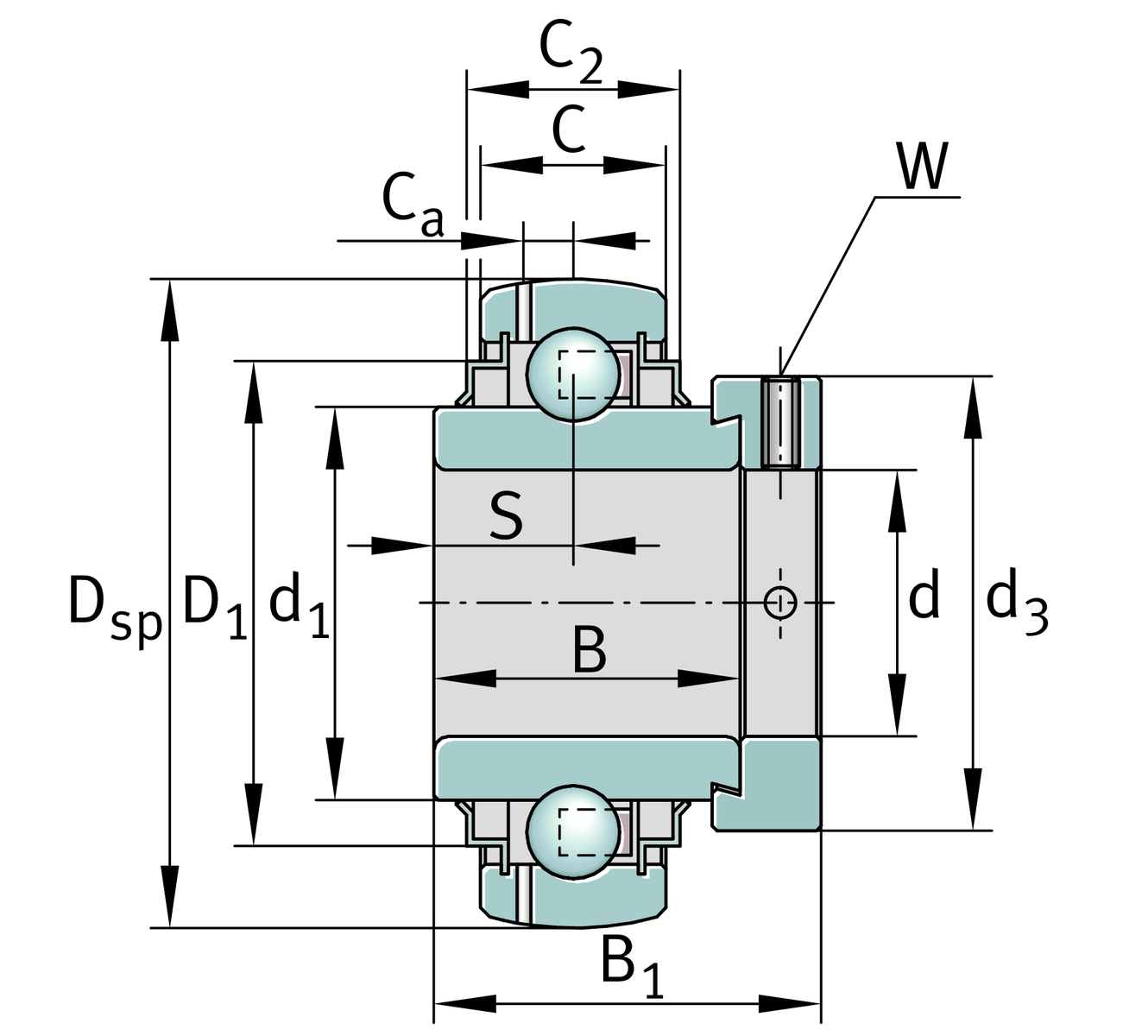

Dimensions
C
20 mm
Width, outer ring
C2
24 mm
Sealing total width
S
17.5 mm
Distance raceway
d1
44 mm
Rib diameter inner ring
D1
60.2 mm
Outside diameter seal
Ca
6.2 mm
Distance to lubrication hole
d3
51 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
12.9
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
