GNE100-XL-KRR-B
Radial insert ball bearing GNE100-XL-KRR-B
Thêm vào yêu cầu báo giá

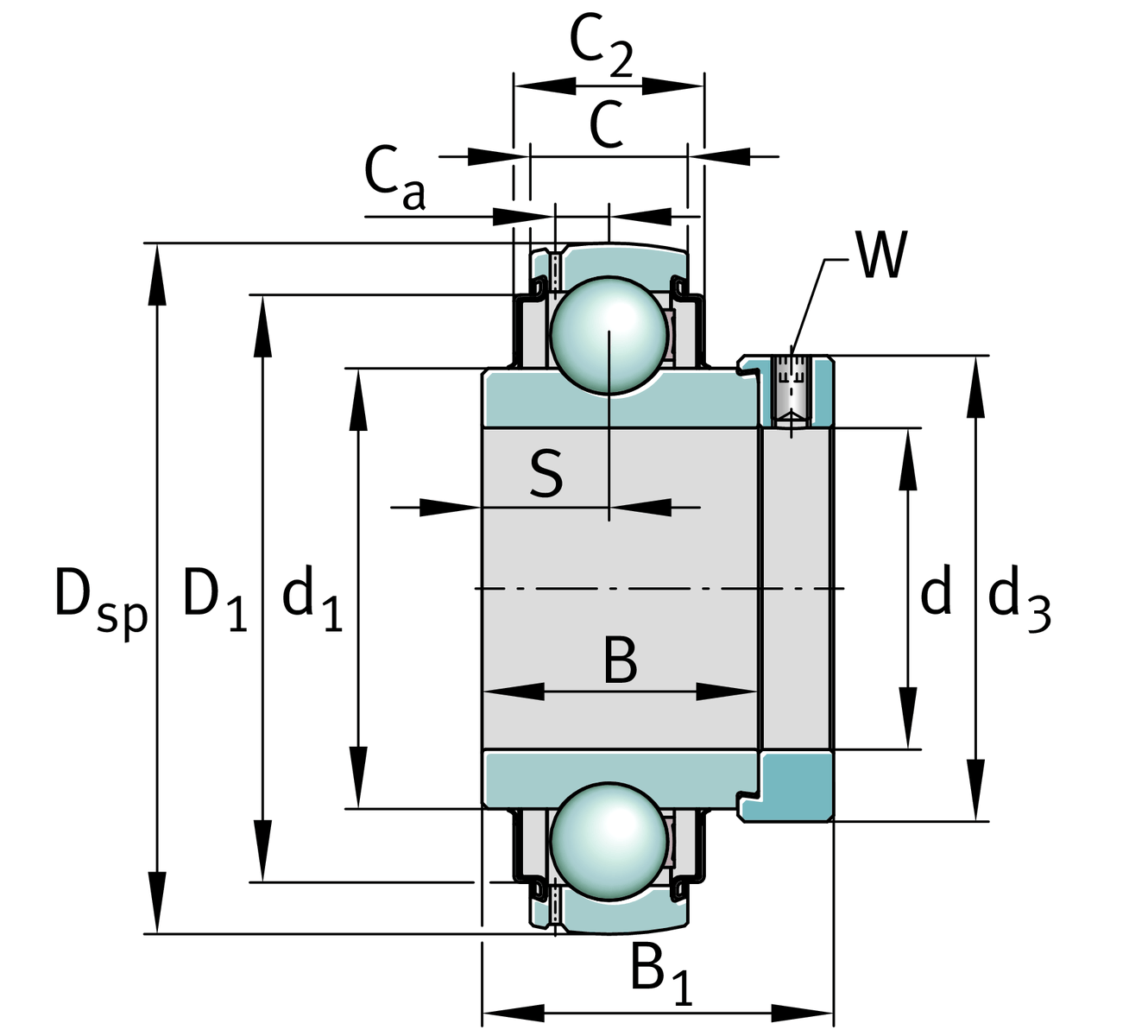

Main Dimensions & Performance Data
d
100 mm
Bore diameter
DSP
215 mm
Outside diameter
B
86 mm
Width
Cur
5,800 N
Fatigue load limit, radial
B1
109.4 mm
Locking collar total width
Cr
174,000 N
Basic dynamic load rating, radial
C0r
140,000 N
Basic static load rating, radial
≈m
11.41 kg
Weight

Dimensions
C
49 mm
Width, outer ring
C2
59.4 mm
Sealing total width
S
39.5 mm
Distance raceway
d1
137.1 mm
Rib diameter inner ring
D1
182.8 mm
Outside diameter seal
Ca
16.7 mm
Distance to lubrication hole
d3
145 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
