Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| DSP | 125 mm | Outside diameter |
| B | 68.2 mm | Width |
| Cur | 2,300 N | Fatigue load limit, radial |
| Cr | 62,000 N | Basic dynamic load rating, radial |
| C0r | 44,000 N | Basic static load rating, radial |
| ≈m | 1.89 kg | Weight |

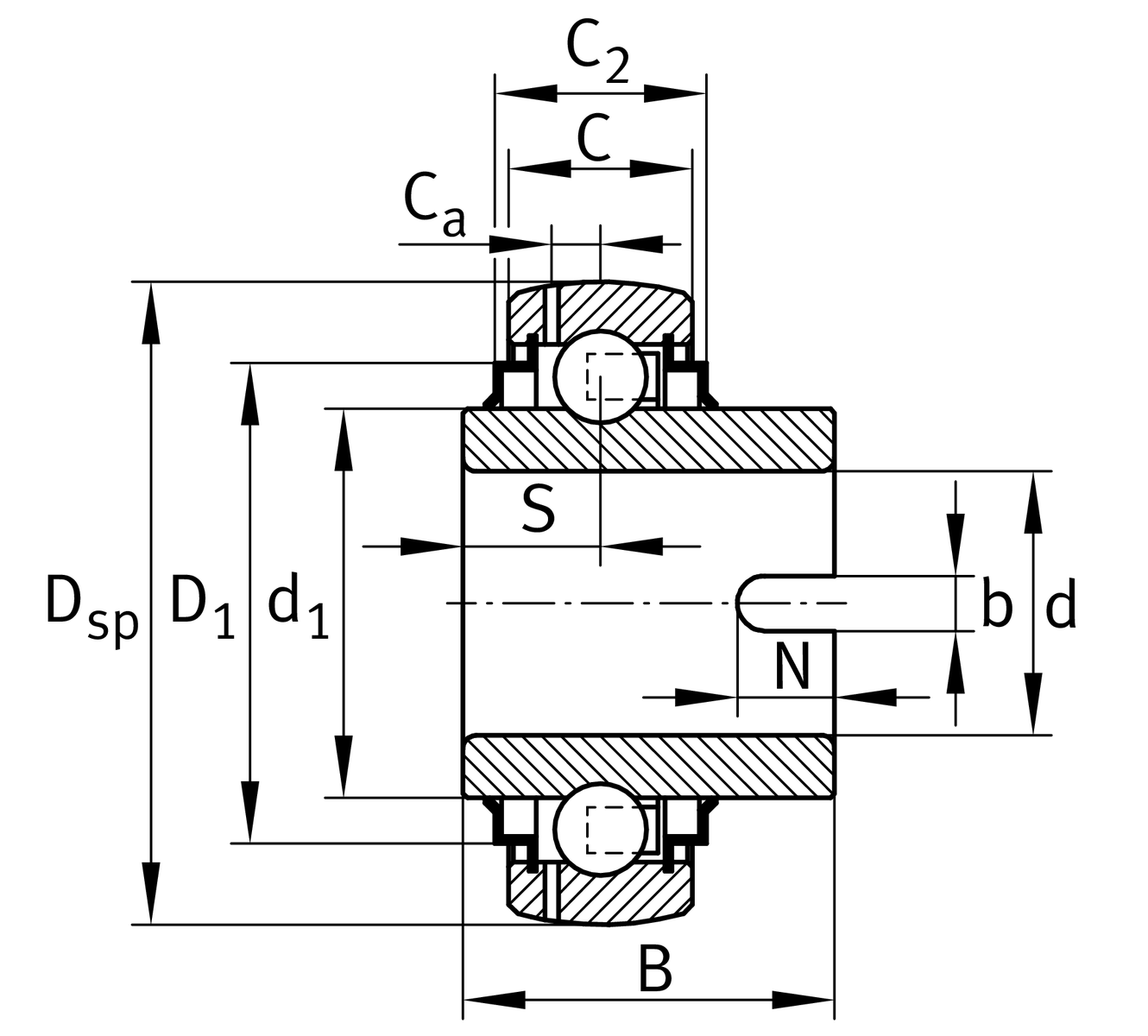

Dimensions
| C | 28 mm | Width, outer ring |
| C2 | 32 mm | Sealing total width |
| S | 27 mm | Distance raceway |
| d1 | 85.2 mm | Rib diameter inner ring |
| D1 | 109 mm | Outside diameter seal |
| Ca | 8.9 mm | Distance to lubrication hole |
| N | 12 mm | Hight retaining slot |
| b | 9 mm | Width retaining slot |
H11 | Width retaining slot clearance |
Calculation factors
| f0 | 14.4 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
