GNE60-XL-KRR-B
Radial insert ball bearing GNE60-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
60 mm
Bore diameter
DSP
130 mm
Outside diameter
B
52 mm
Width
Cur
2,460 N
Fatigue load limit, radial
B1
68 mm
Locking collar total width
Cr
82,000 N
Basic dynamic load rating, radial
C0r
52,000 N
Basic static load rating, radial
≈m
2.642 kg
Weight

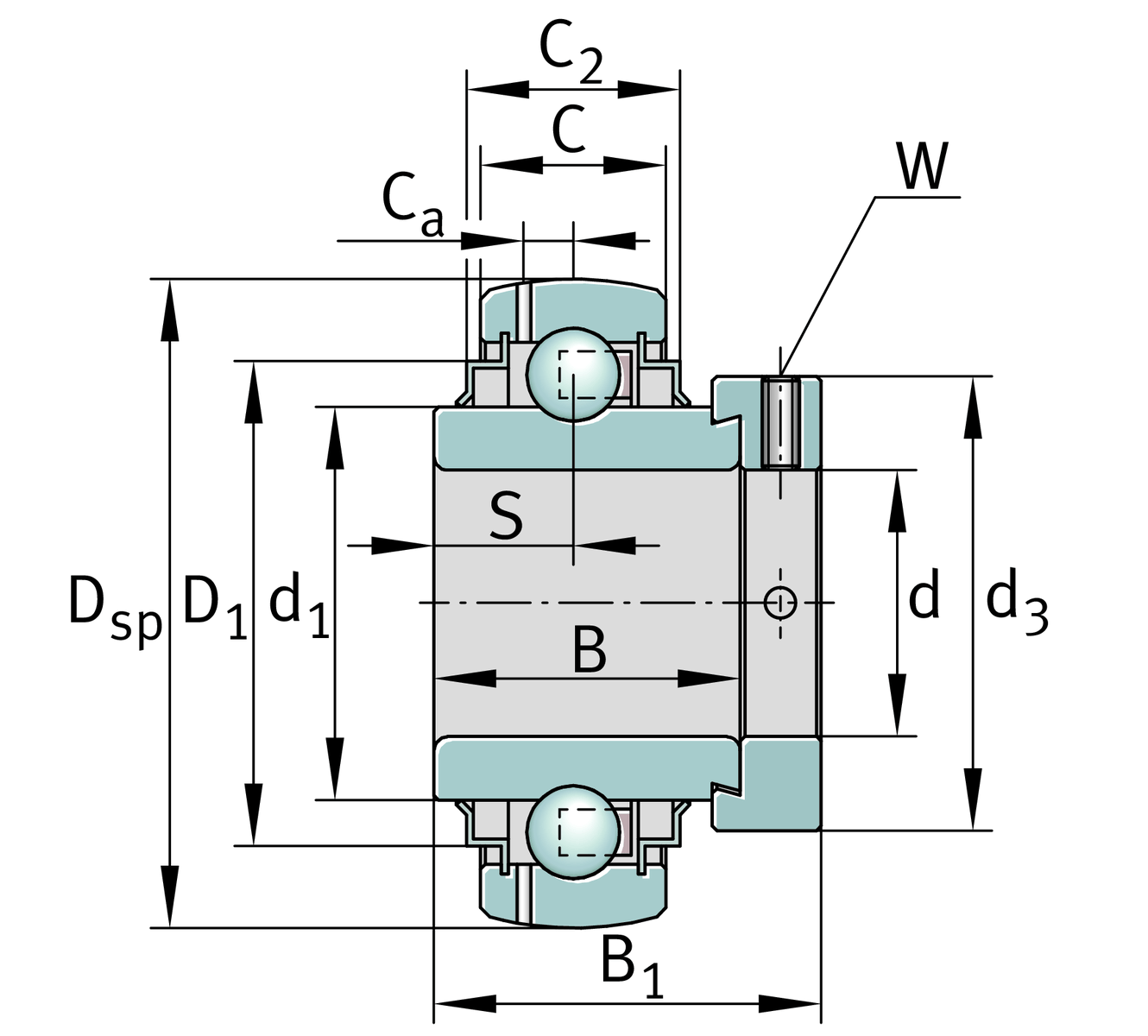

Dimensions
C
33 mm
Width, outer ring
C2
37.2 mm
Sealing total width
S
23 mm
Distance raceway
d1
79.4 mm
Rib diameter inner ring
D1
109 mm
Outside diameter seal
Ca
11.2 mm
Distance to lubrication hole
d3
89 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
13.2
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
