GNE60-XL-KRR-B-OSE
Radial insert ball bearing GNE60-XL-KRR-B-OSE
Thêm vào yêu cầu báo giá

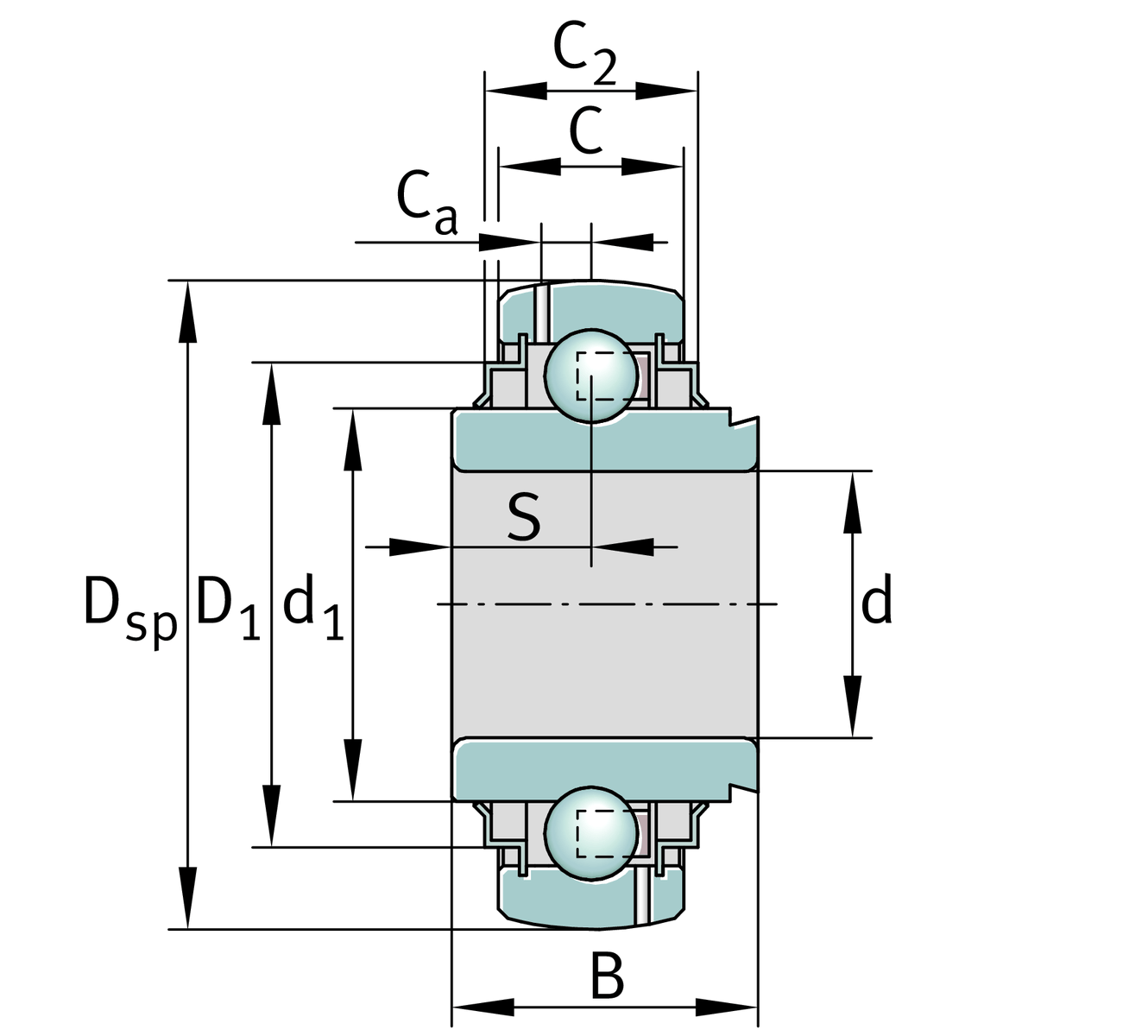

Main Dimensions & Performance Data
d
60 mm
Bore diameter
DSP
130 mm
Outside diameter
B
52 mm
Width
Cur
2,460 N
Fatigue load limit, radial
Cr
82,000 N
Basic dynamic load rating, radial
C0r
52,000 N
Basic static load rating, radial
≈m
2.02 kg
Weight

Dimensions
C
33 mm
Width, outer ring
C2
37.2 mm
Sealing total width
S
23 mm
Distance raceway
d1
79.4 mm
Rib diameter inner ring
D1
109 mm
Outside diameter seal
Ca
11.2 mm
Distance to lubrication hole

Calculation factors
f0
13.2
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
