Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| DSP | 150 mm | Outside diameter |
| B | 58 mm | Width |
| Cur | 3,400 N | Fatigue load limit, radial |
| B1 | 75.5 mm | Locking collar total width |
| Cr | 104,000 N | Basic dynamic load rating, radial |
| C0r | 68,000 N | Basic static load rating, radial |
| ≈m | 4.059 kg | Weight |

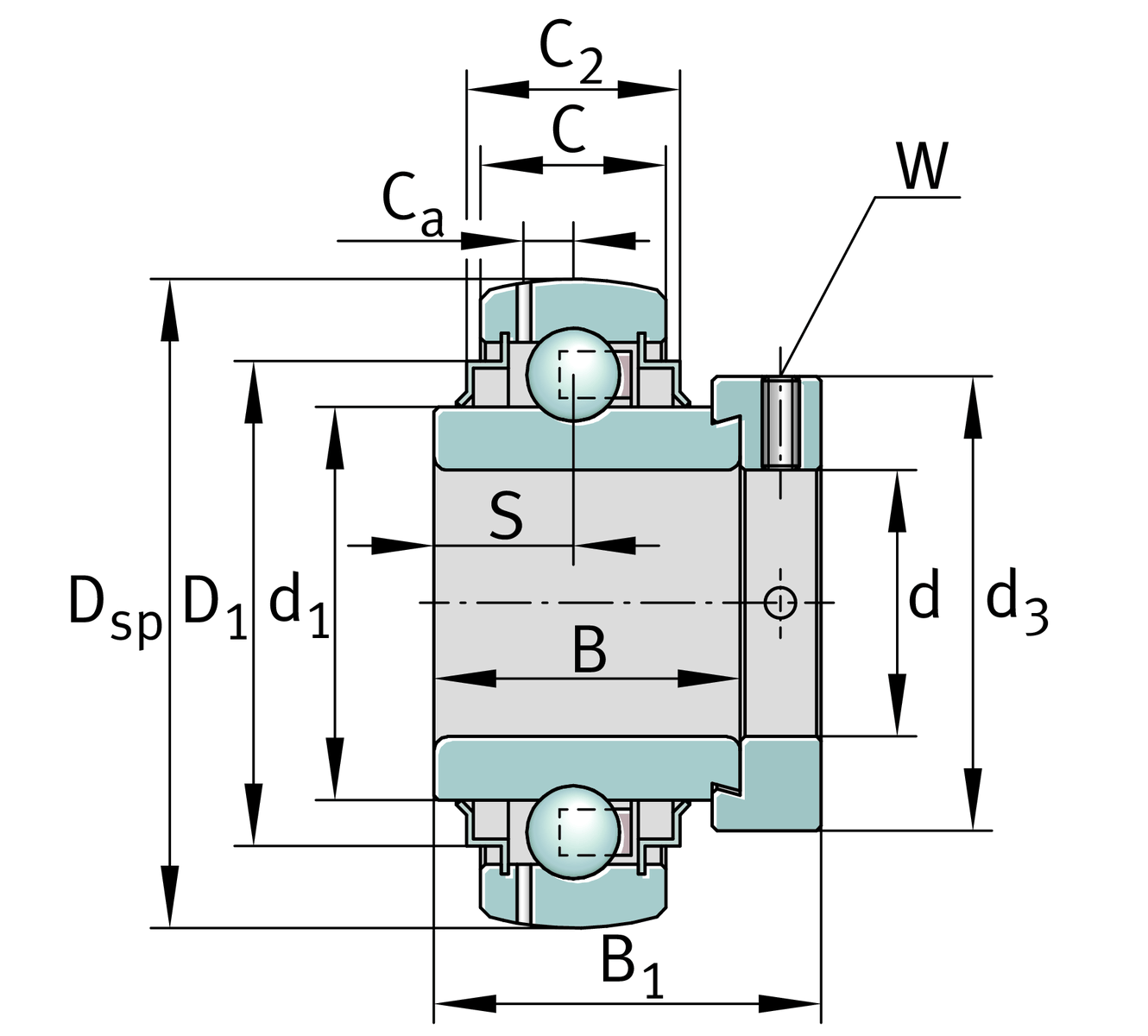

Dimensions
| C | 37 mm | Width, outer ring |
| C2 | 41 mm | Sealing total width |
| S | 26 mm | Distance raceway |
| d1 | 92.2 mm | Rib diameter inner ring |
| D1 | 127 mm | Outside diameter seal |
| Ca | 12 mm | Distance to lubrication hole |
| d3 | 102 mm | Outside diameter locking collar/locknut |
| W | 6 mm | Width of flats |
Calculation factors
| f0 | 13.2 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
