Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| DSP | 170 mm | Outside diameter |
| B | 73 mm | Width |
| Cur | 4,050 N | Fatigue load limit, radial |
| B1 | 93.6 mm | Locking collar total width |
| Cr | 123,000 N | Basic dynamic load rating, radial |
| C0r | 87,000 N | Basic static load rating, radial |
| ≈m | 7.1 kg | Weight |

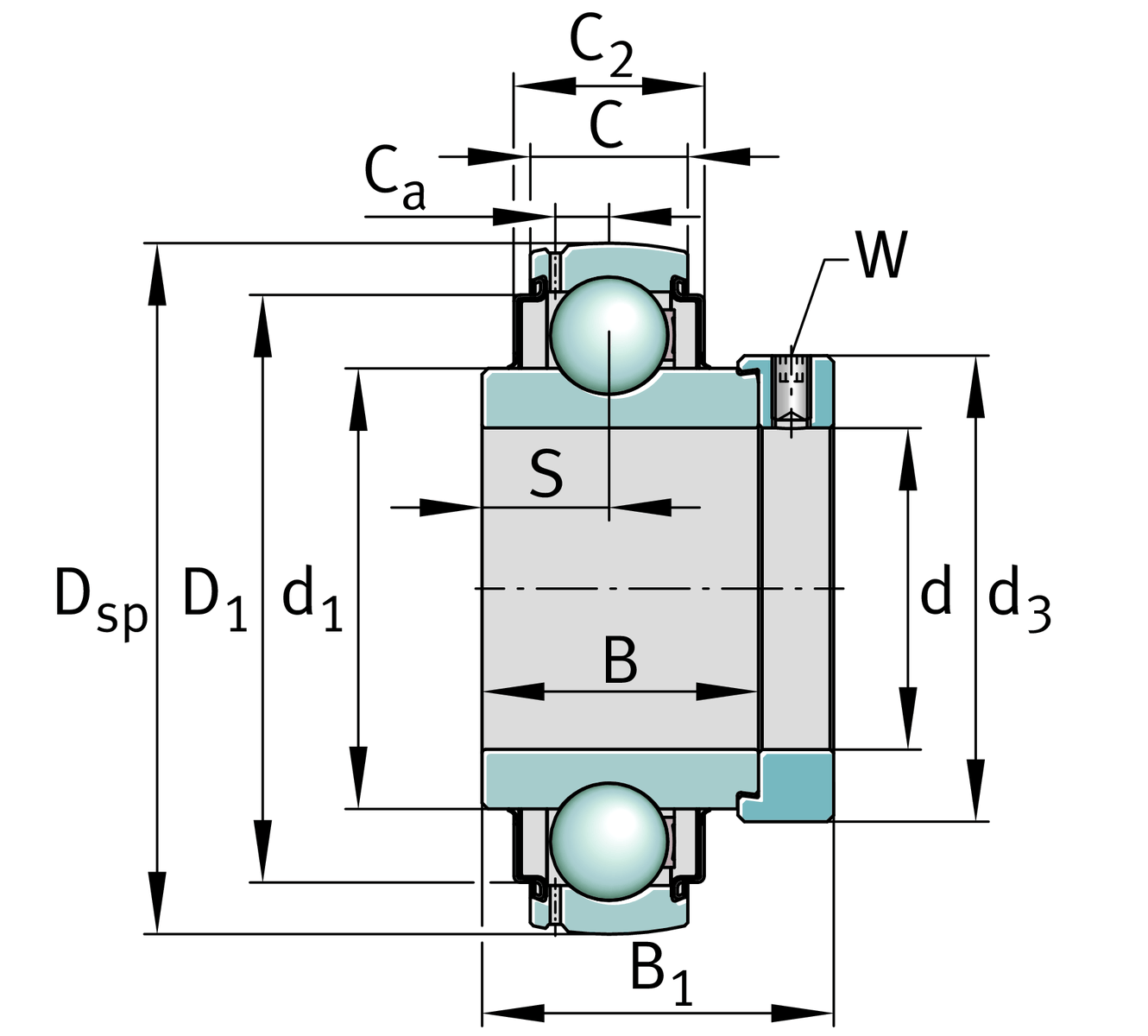

Dimensions
| C | 41 mm | Width, outer ring |
| C2 | 51 mm | Sealing total width |
| S | 34 mm | Distance raceway |
| d1 | 109 mm | Rib diameter inner ring |
| D1 | 142.8 mm | Outside diameter seal |
| Ca | 13.2 mm | Distance to lubrication hole |
| d3 | 118 mm | Outside diameter locking collar/locknut |
| W | 6 mm | Width of flats |
Calculation factors
| f0 | 13.3 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
