GNE90-XL-KRR-B
Radial insert ball bearing GNE90-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
DSP
190 mm
Outside diameter
B
77.5 mm
Width
Cur
3,850 N
Fatigue load limit, radial
B1
101 mm
Locking collar total width
Cr
143,000 N
Basic dynamic load rating, radial
C0r
107,000 N
Basic static load rating, radial
≈m
8.07 kg
Weight

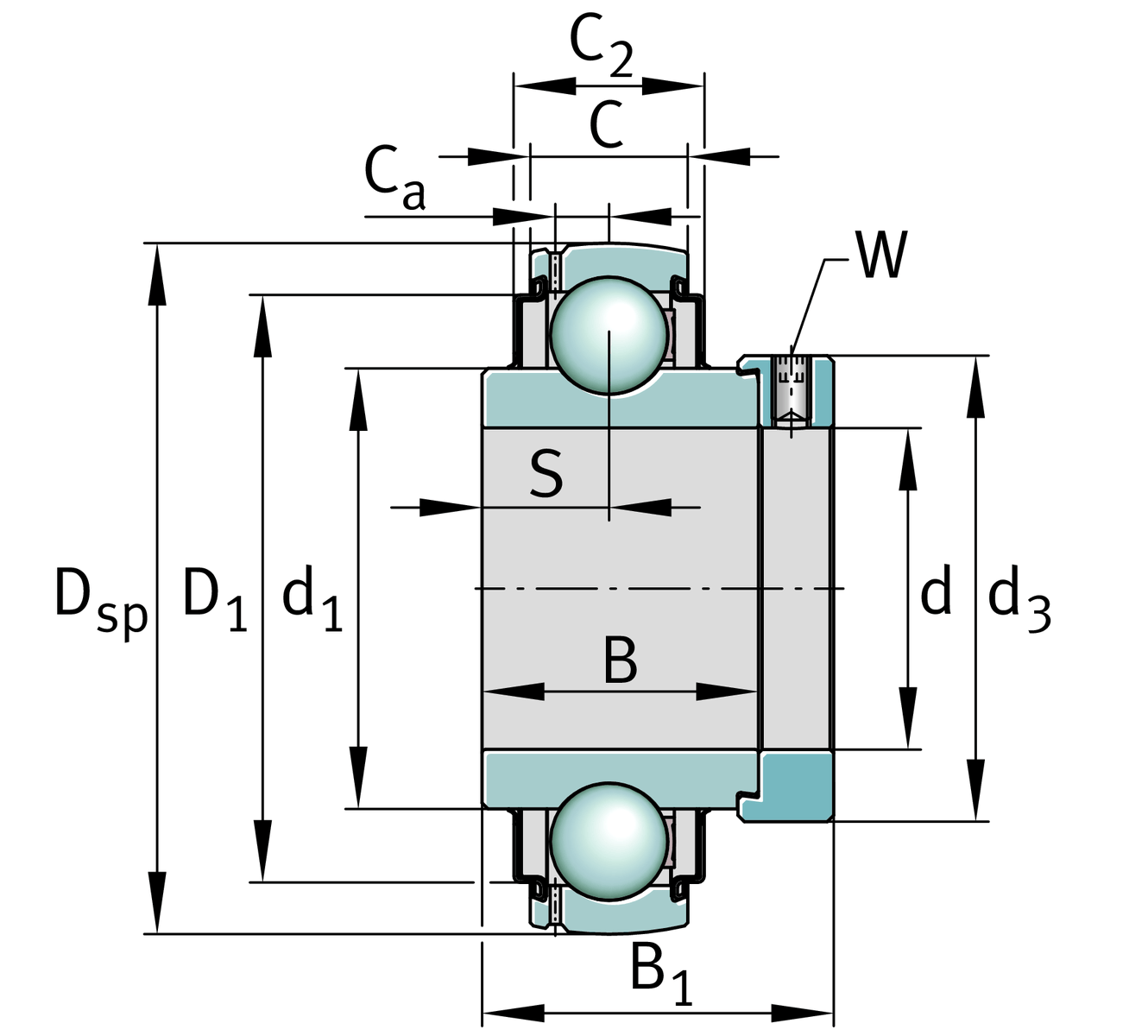

Dimensions
C
45 mm
Width, outer ring
C2
52.6 mm
Sealing total width
S
35.5 mm
Distance raceway
d1
122.2 mm
Rib diameter inner ring
D1
161.3 mm
Outside diameter seal
Ca
14.3 mm
Distance to lubrication hole
d3
132 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
13.3
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
