FAG INA Schaeffler
FAG
SNW11X0115
Adapter sleeve SNW11X0115
Thêm vào yêu cầu báo giá

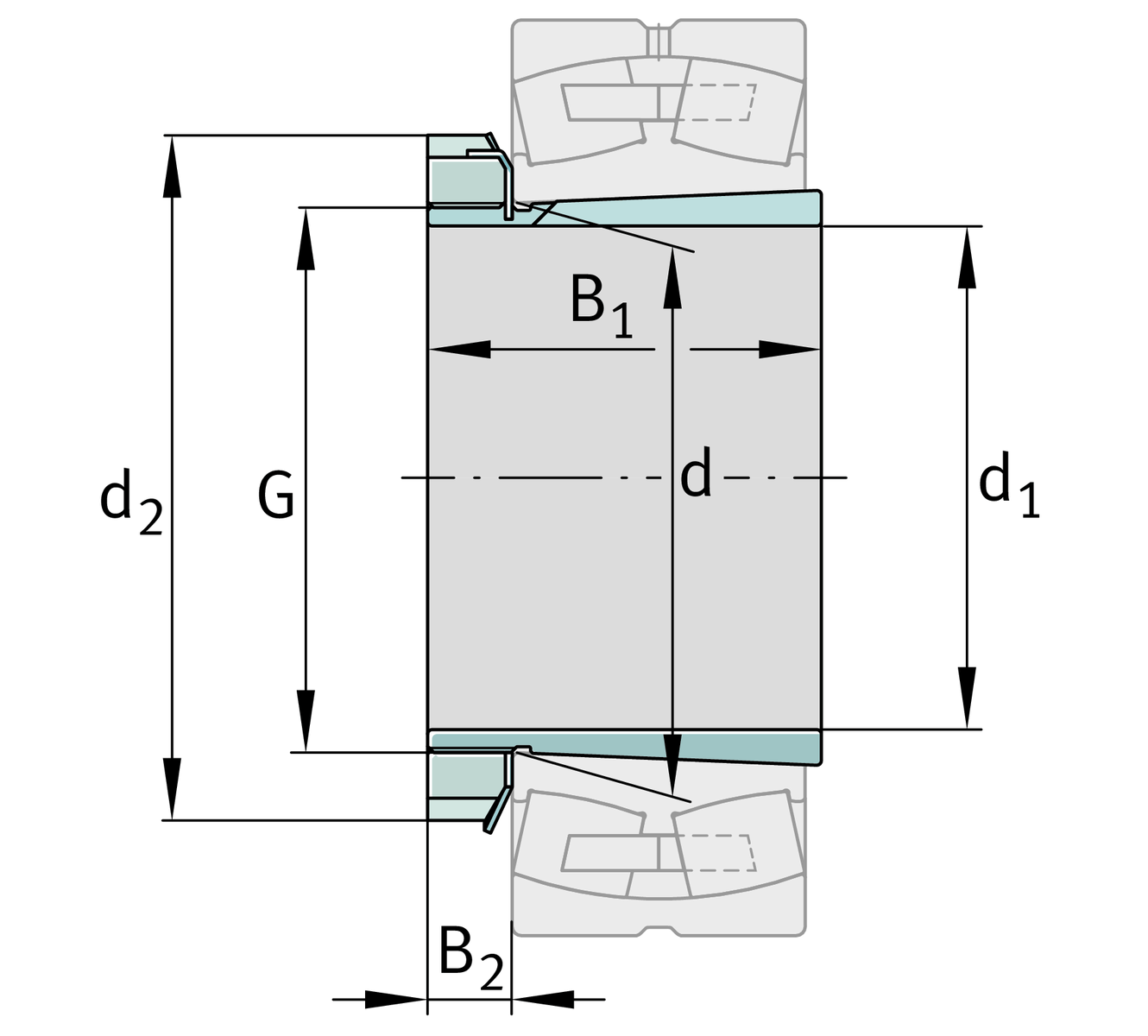

Main Dimensions & Performance Data
d1
1.9375 in
bore diameter (Inch)
G
2,157
Thread
18
Threads per inch
B1
1.835 in
sleeve length (Inch)
d2
2.974 in
Outside diameter nut (Inch)
≈m
12.346 oz
Weight

Dimensions
d
2.1654 in
Bore diameter bearing (Inch)
B2
1.86 in
Width nut and lock (Inch)

Additional information
N-11
Locknut
W-11
Fuse
1:12
Taper
