FAG INA Schaeffler
FAG
SNW13X0203
Adapter sleeve SNW13X0203
Thêm vào yêu cầu báo giá

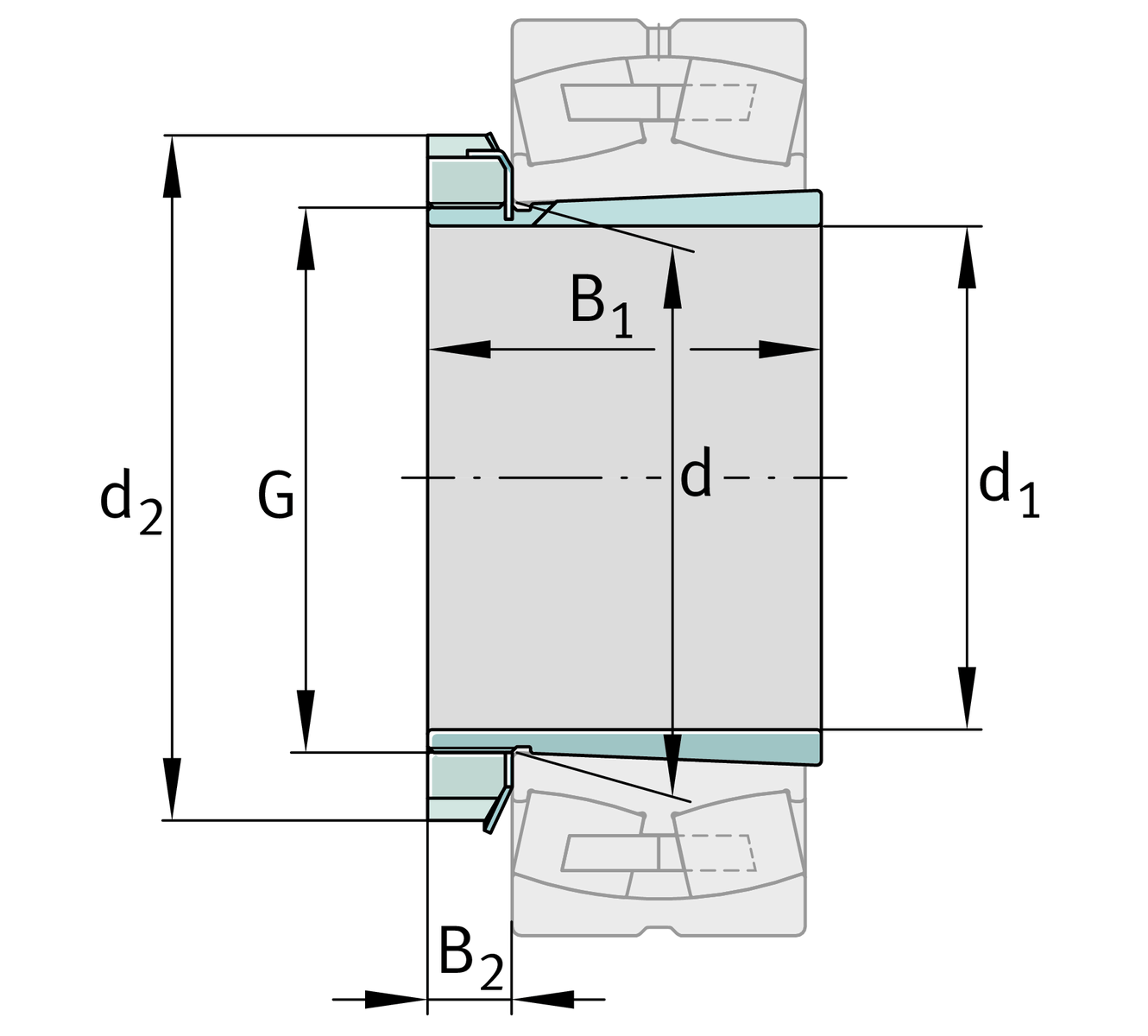

Main Dimensions & Performance Data
d1
2.1875 in
bore diameter (Inch)
G
2,54
Thread
18
Threads per inch
B1
2.09 in
sleeve length (Inch)
d2
3.38 in
Outside diameter nut (Inch)
≈m
2.227 lbs
Weight

Dimensions
d
2.5591 in
Bore diameter bearing (Inch)
B2
1.923 in
Width nut and lock (Inch)

Additional information
N-13
Locknut
W-13
Fuse
1:12
Taper
