FAG INA Schaeffler
FAG
SNW15X0207
Adapter sleeve SNW15X0207
Thêm vào yêu cầu báo giá

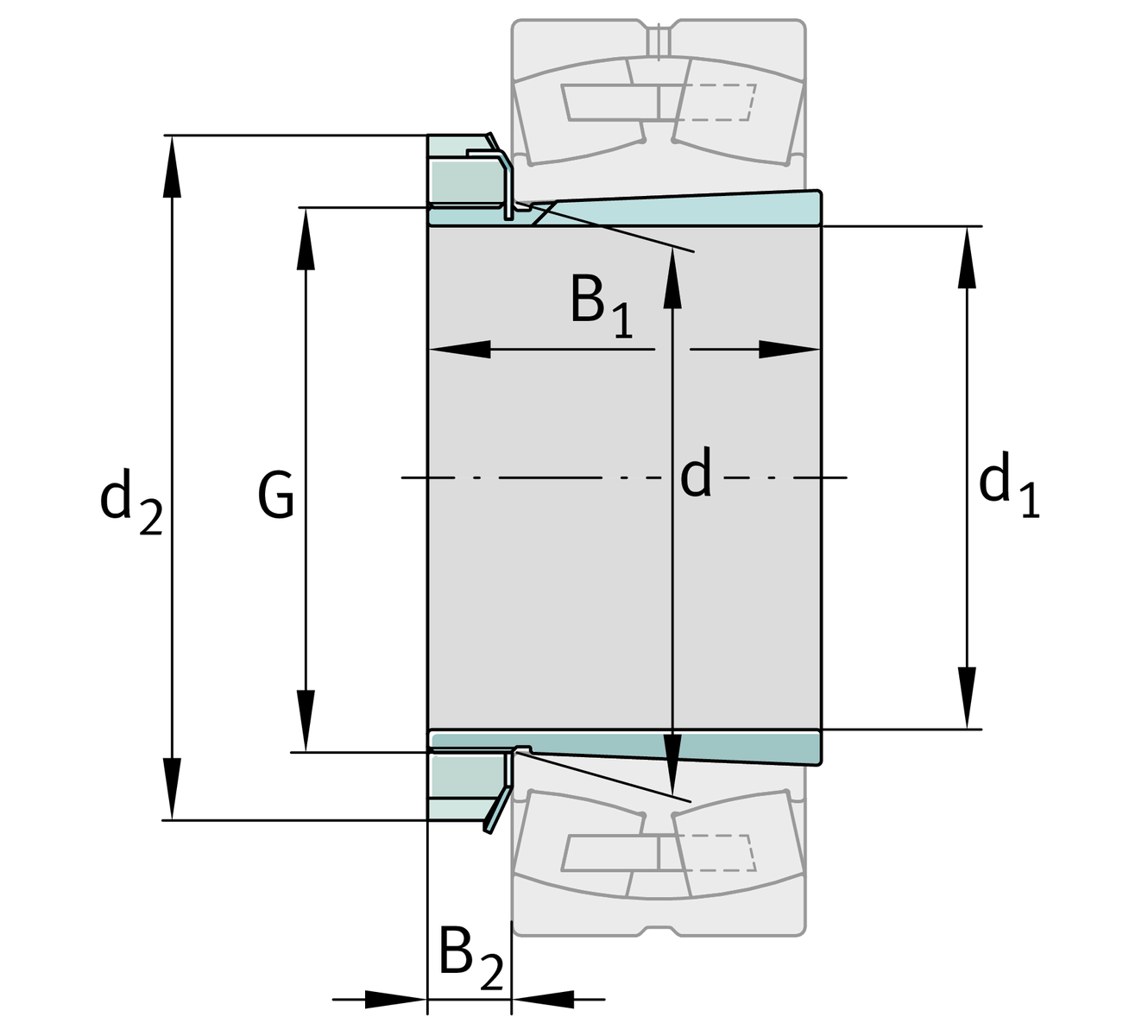

Main Dimensions & Performance Data
d1
2.4375 in
bore diameter (Inch)
G
2,933
Thread
12
Threads per inch
B1
2.286 in
sleeve length (Inch)
d2
3.88 in
Outside diameter nut (Inch)
≈m
1.832 lbs
Weight

Dimensions
d
2.9528 in
Bore diameter bearing (Inch)
B2
2.174 in
Width nut and lock (Inch)

Additional information
AN-15
Locknut
W-15
Fuse
1:12
Taper
