FAG INA Schaeffler
FAG
SNW16X0211
Adapter sleeve SNW16X0211
Thêm vào yêu cầu báo giá

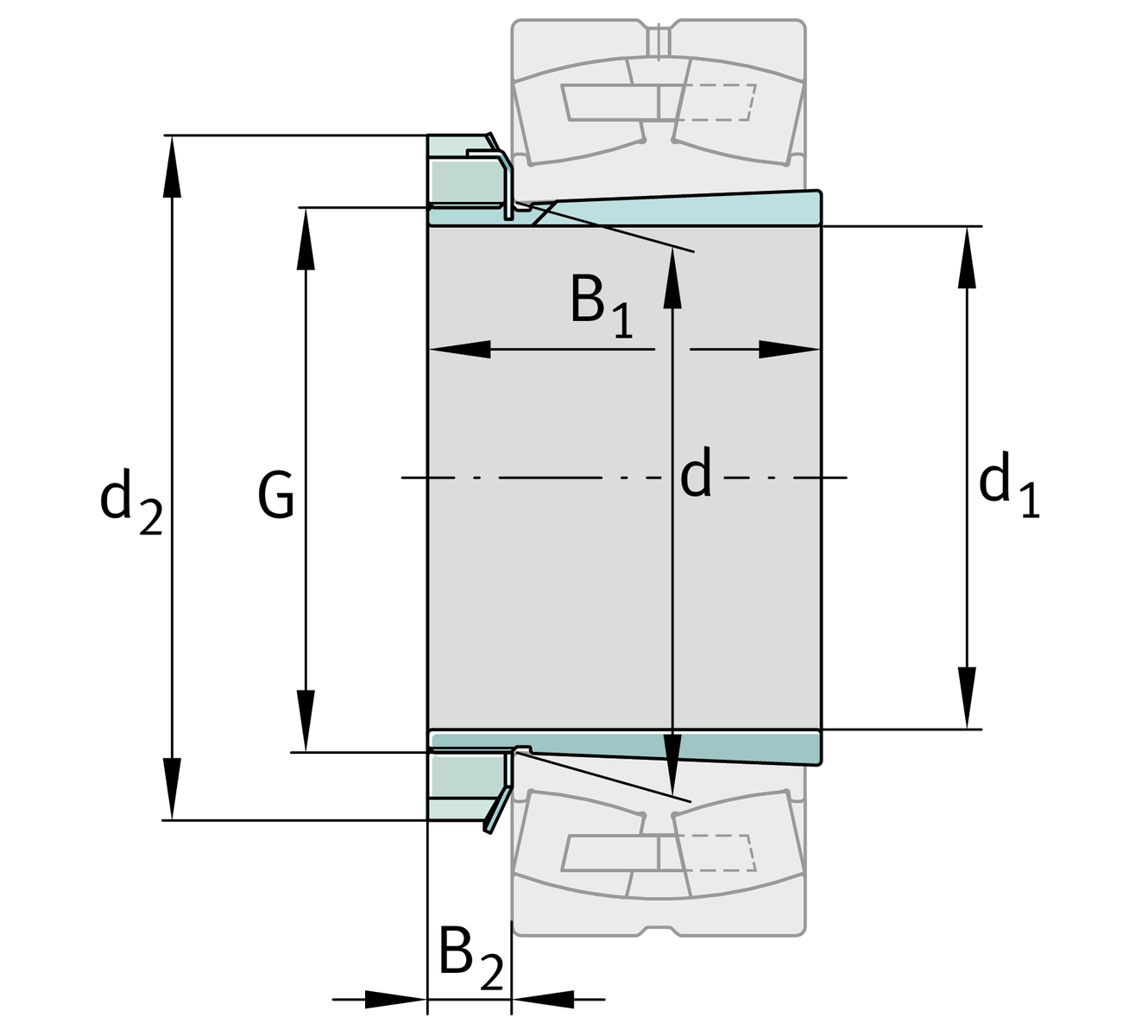

Main Dimensions & Performance Data
d1
2.6875 in
bore diameter (Inch)
G
3,137
Thread
12
Threads per inch
B1
2.366 in
sleeve length (Inch)
d2
4.161 in
Outside diameter nut (Inch)
≈m
2.273 lbs
Weight

Dimensions
d
3.1496 in
Bore diameter bearing (Inch)
B2
2.174 in
Width nut and lock (Inch)

Additional information
AN-16
Locknut
W-16
Fuse
1:12
Taper
