SNW17X0215
Adapter sleeve SNW17X0215
Thêm vào yêu cầu báo giá

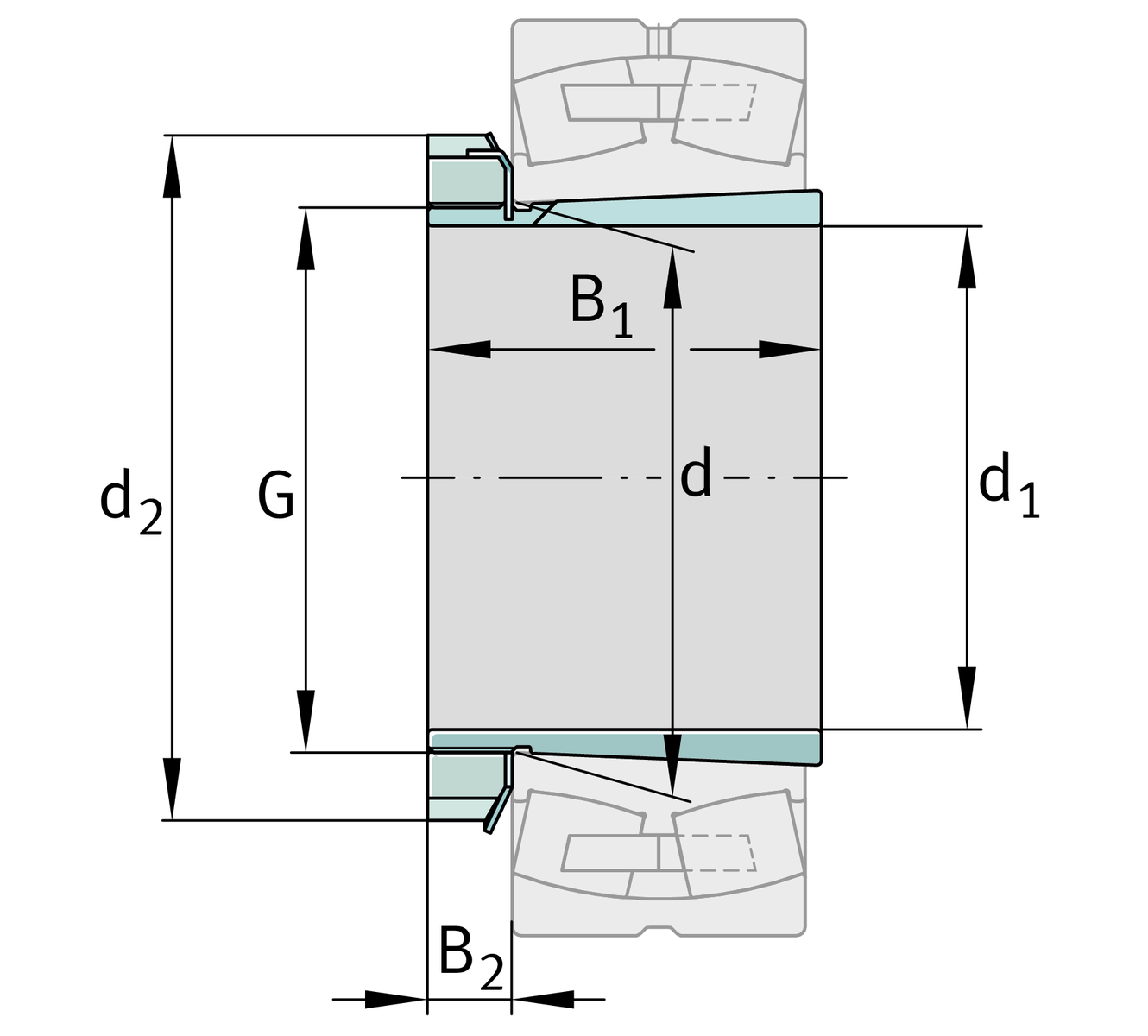

Main Dimensions & Performance Data
d1
2.9375 in
bore diameter (Inch)
G
3,34
Thread
12
Threads per inch
B1
2.476 in
sleeve length (Inch)
d2
4.411 in
Outside diameter nut (Inch)
≈m
2.866 lbs
Weight

Dimensions
d
3.3465 in
Bore diameter bearing (Inch)
B2
2.205 in
Width nut and lock (Inch)

Additional information
AN-17
Locknut
W-17
Fuse
1:12
Taper
