SNW10X0111
Adapter sleeve SNW10X0111
Thêm vào yêu cầu báo giá

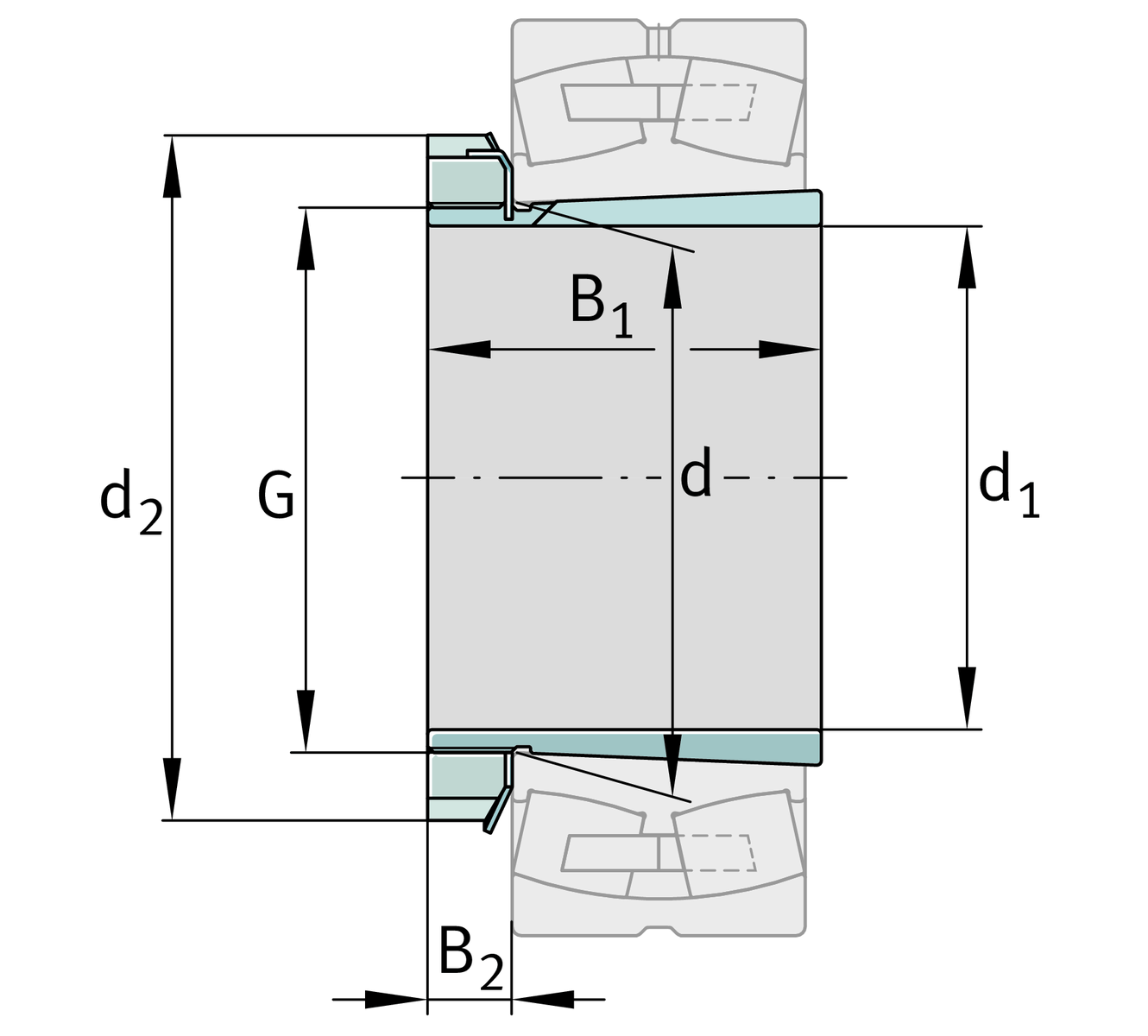

Main Dimensions & Performance Data
d1
1.6875 in
bore diameter (Inch)
G
1,967
Thread
18
Threads per inch
B1
1.755 in
sleeve length (Inch)
d2
2.693 in
Outside diameter nut (Inch)
≈m
0.728 lbs
Weight

Dimensions
d
1.9685 in
Bore diameter bearing (Inch)
B2
1.73 in
Width nut and lock (Inch)

Additional information
N-10
Locknut
W-10
Fuse
1:12
Taper
