SAFD540X0703U
Plummer block housings, split, SAF SAFD540X0703U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
182.563 mm
Shaft diameter inch
d1
182.5625 mm
Shaft diameter
a
749.3 mm
Length foot
h1
419.1 mm
Total height
g
279.4 mm
Width housing body
≈m
154.4 kg
Weight

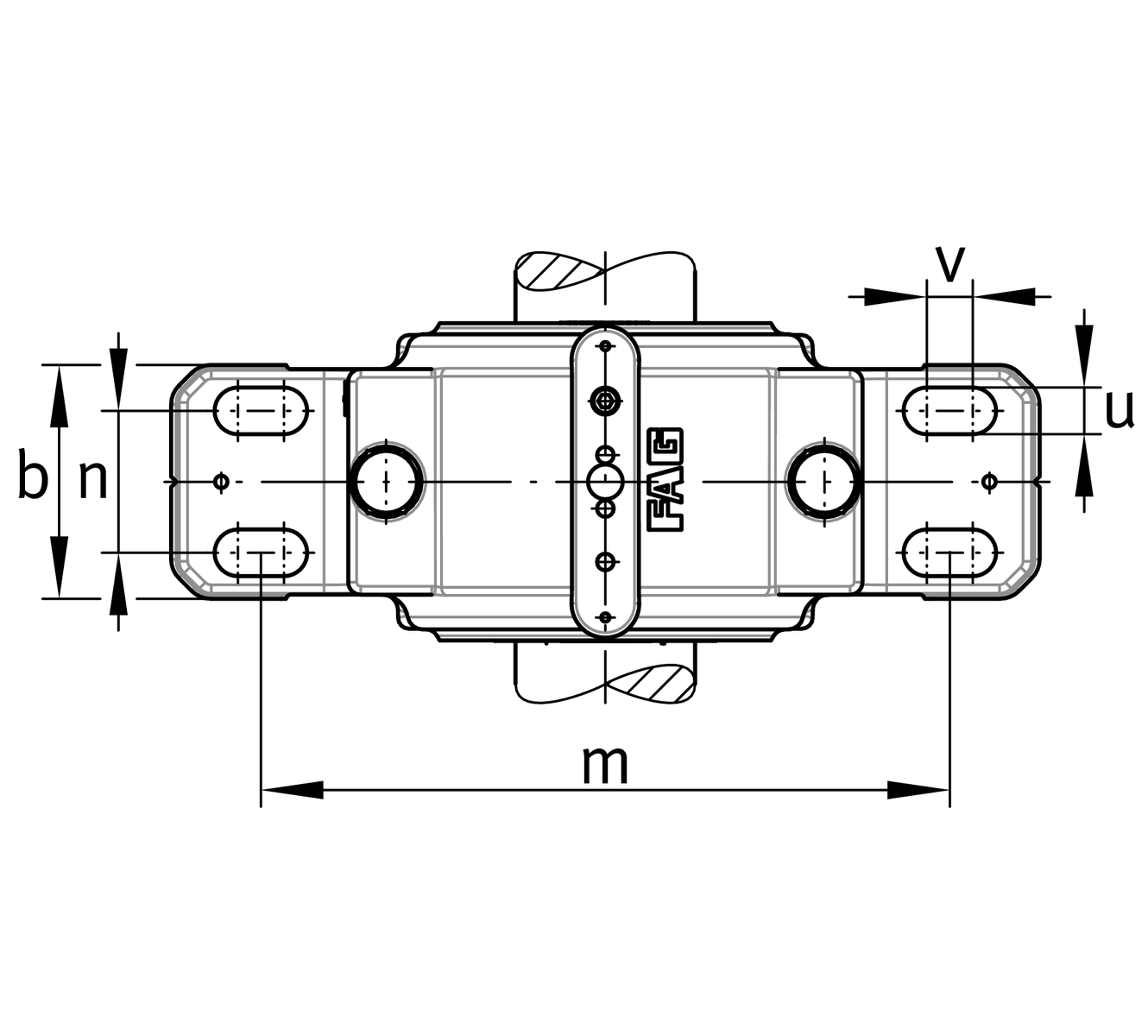

Dimensions
b
203.2 mm
Width foot
c
85.725 mm
Height foot
D
360 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
209.55 mm
Distance shaft axis
k
107.8 mm
Width bearing seat
m
603.25 mm
Distance mounting holes
n
127 mm
Width bore spacing
s
31.75 mm
screw size
v
34.925 mm
Width oblong hole
v
31.75 mm
Length oblong hole
