SAFD544X0715U
Plummer block housings, split, SAF SAFD544X0715U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
201.612 mm
Shaft diameter inch
d1
201.6125 mm
Shaft diameter
a
831.85 mm
Length foot
h1
473.075 mm
Total height
g
298.45 mm
Width housing body
≈m
201.9 kg
Weight

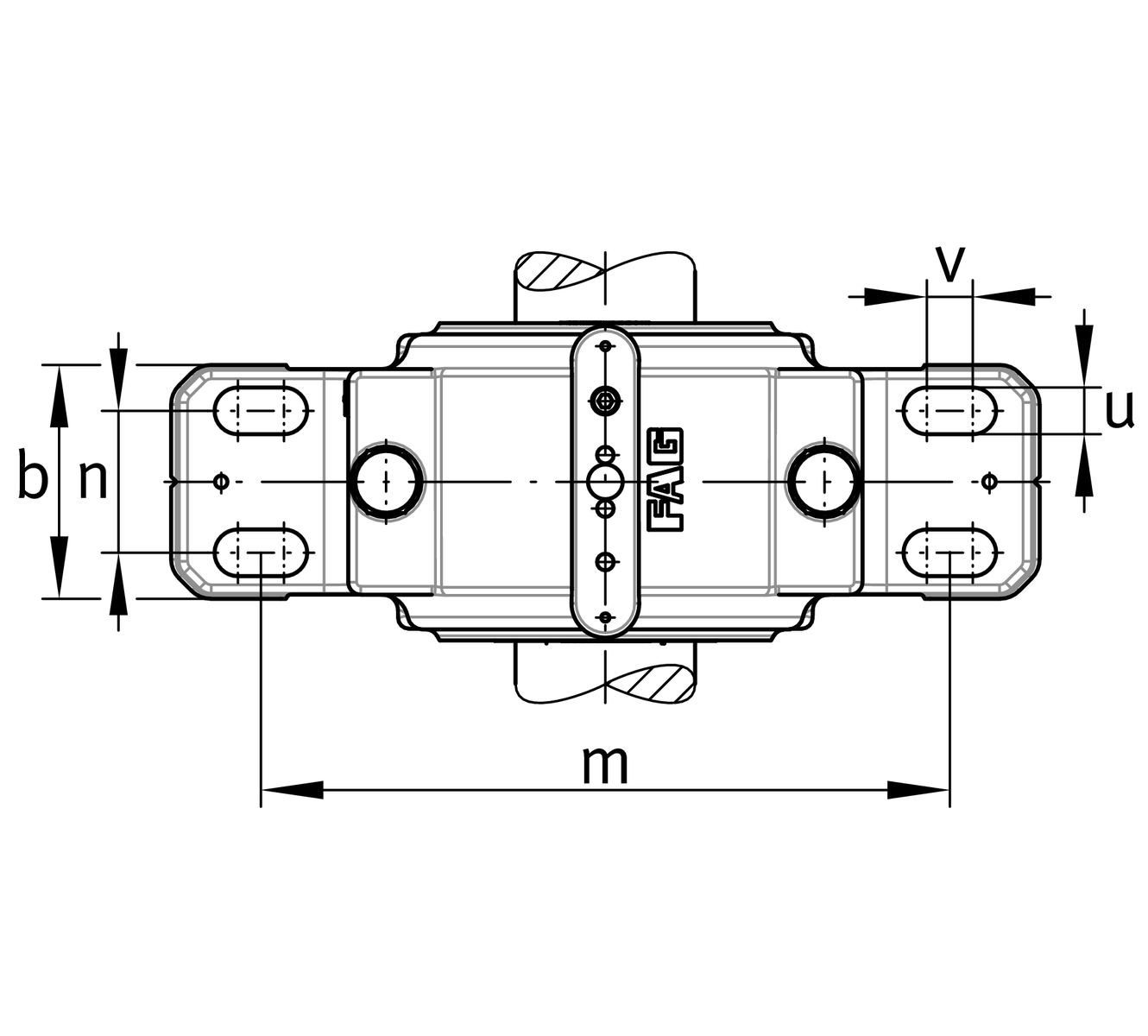

Dimensions
b
222.25 mm
Width foot
c
95.25 mm
Height foot
D
400 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
241.3 mm
Distance shaft axis
k
117.8 mm
Width bearing seat
m
668.337 mm
Distance mounting holes
n
133.35 mm
Width bore spacing
s
38.1 mm
screw size
v
41.275 mm
Width oblong hole
v
39.688 mm
Length oblong hole
