SAFD538X0615U
Plummer block housings, split, SAF SAFD538X0615U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
176.212 mm
Shaft diameter inch
d1
176.2125 mm
Shaft diameter
a
711.2 mm
Length foot
h1
395.287 mm
Total height
g
266.7 mm
Width housing body
≈m
123.4 kg
Weight

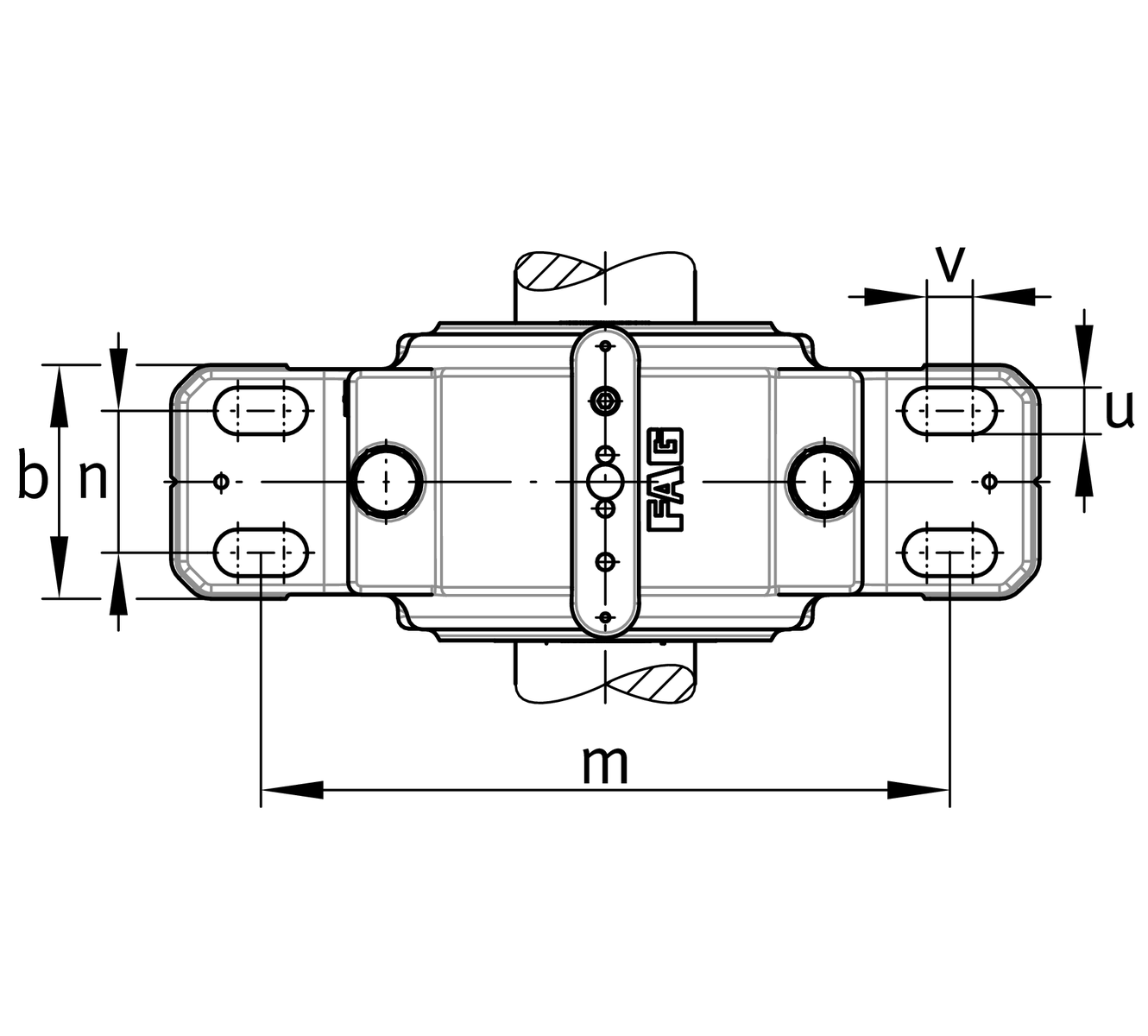

Dimensions
b
190.5 mm
Width foot
c
79.375 mm
Height foot
D
340 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
200.025 mm
Distance shaft axis
k
101.8 mm
Width bearing seat
m
584.2 mm
Distance mounting holes
n
114.3 mm
Width bore spacing
s
31.75 mm
screw size
v
34.925 mm
Width oblong hole
v
34.925 mm
Length oblong hole
