SAFD536X0607U
Plummer block housings, split, SAF SAFD536X0607U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
163.512 mm
Shaft diameter inch
d1
163.5125 mm
Shaft diameter
a
679.45 mm
Length foot
h1
377.825 mm
Total height
g
244.475 mm
Width housing body
≈m
106.5 kg
Weight

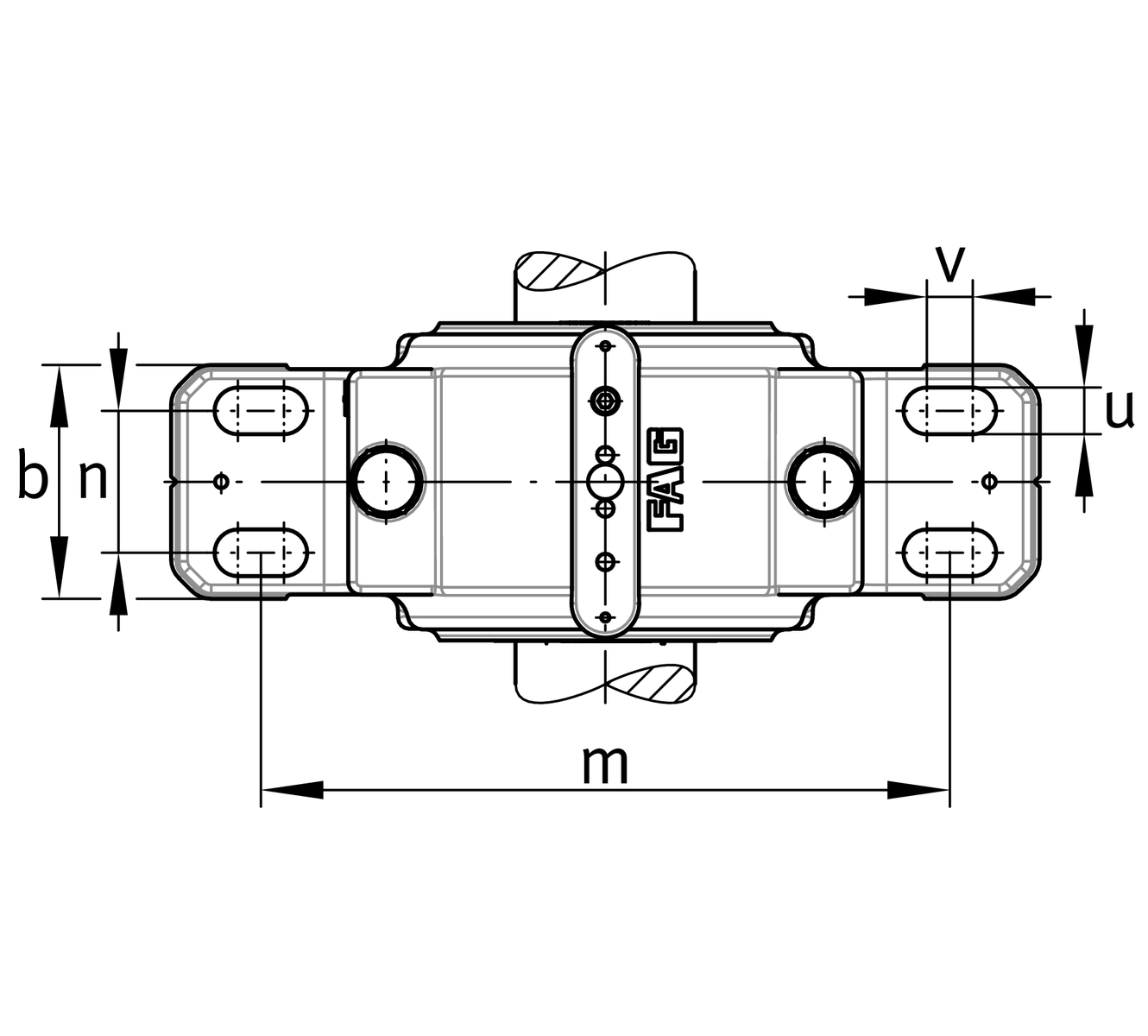

Dimensions
b
180.975 mm
Width foot
c
76.2 mm
Height foot
D
320 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
190.5 mm
Distance shaft axis
k
95.8 mm
Width bearing seat
m
565.15 mm
Distance mounting holes
n
117.475 mm
Width bore spacing
s
25.4 mm
screw size
v
28.575 mm
Width oblong hole
v
34.925 mm
Length oblong hole
