SAFD511X0115U
Plummer block housings, split, SAF SAFD511X0115U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
49.212 mm
Shaft diameter inch
d1
49.2125 mm
Shaft diameter
a
244.475 mm
Length foot
h1
133.35 mm
Total height
g
95.25 mm
Width housing body
≈m
5.3 kg
Weight

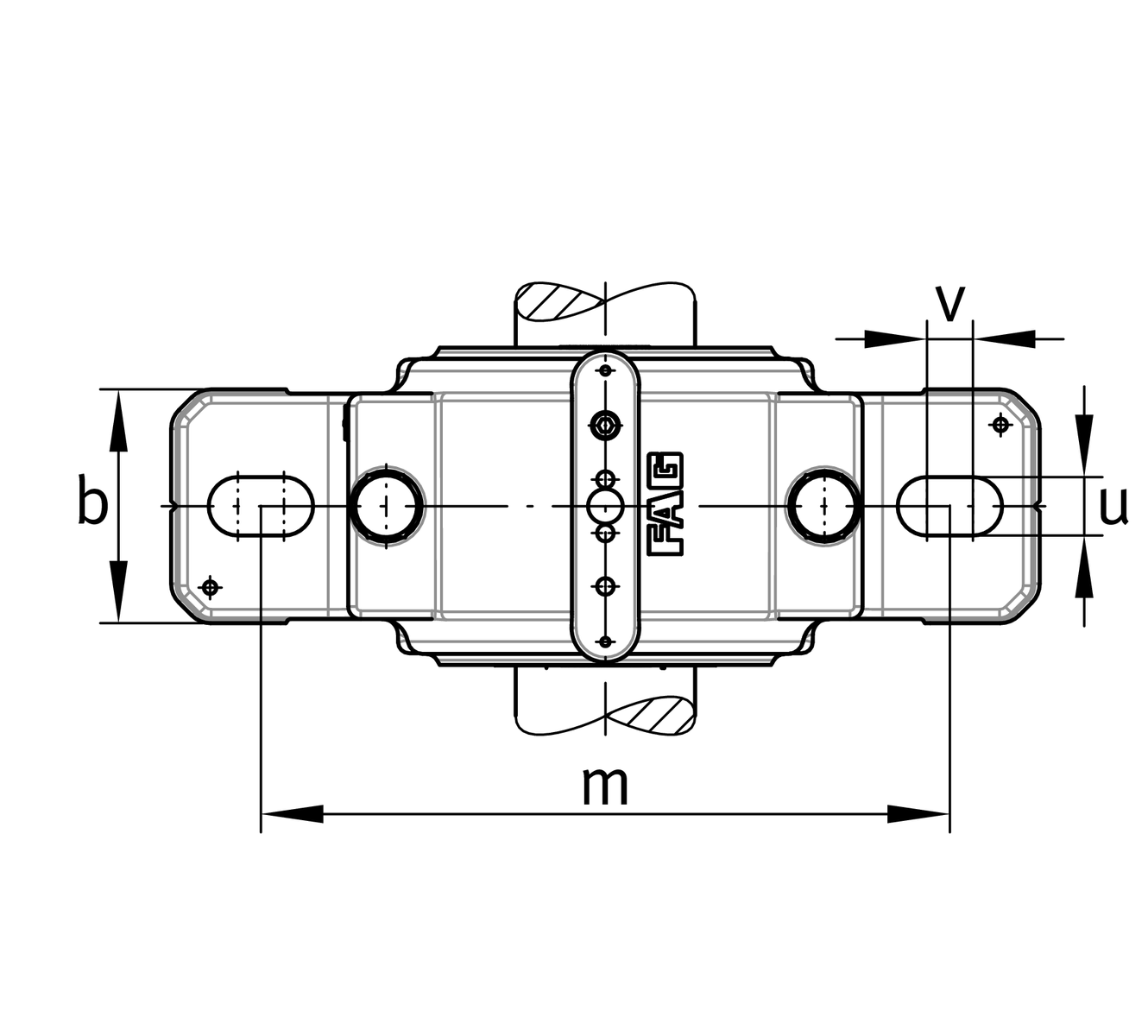

Dimensions
b
69.85 mm
Width foot
c
23.813 mm
Height foot
D
100 mm
Outside diameter bearing
e
2.54 mm
Offset Bearing centre
h
69.85 mm
Distance shaft axis
k
30.8 mm
Width bearing seat
m
193.675 mm
Distance mounting holes
s
15.875 mm
screw size
v
19.05 mm
Width oblong hole
v
6.35 mm
Length oblong hole
