SAFD510X0111U
Plummer block housings, split, SAF SAFD510X0111U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
42.862 mm
Shaft diameter inch
d1
42.8625 mm
Shaft diameter
a
209.55 mm
Length foot
h1
120.65 mm
Total height
g
87.313 mm
Width housing body
≈m
4.05 kg
Weight

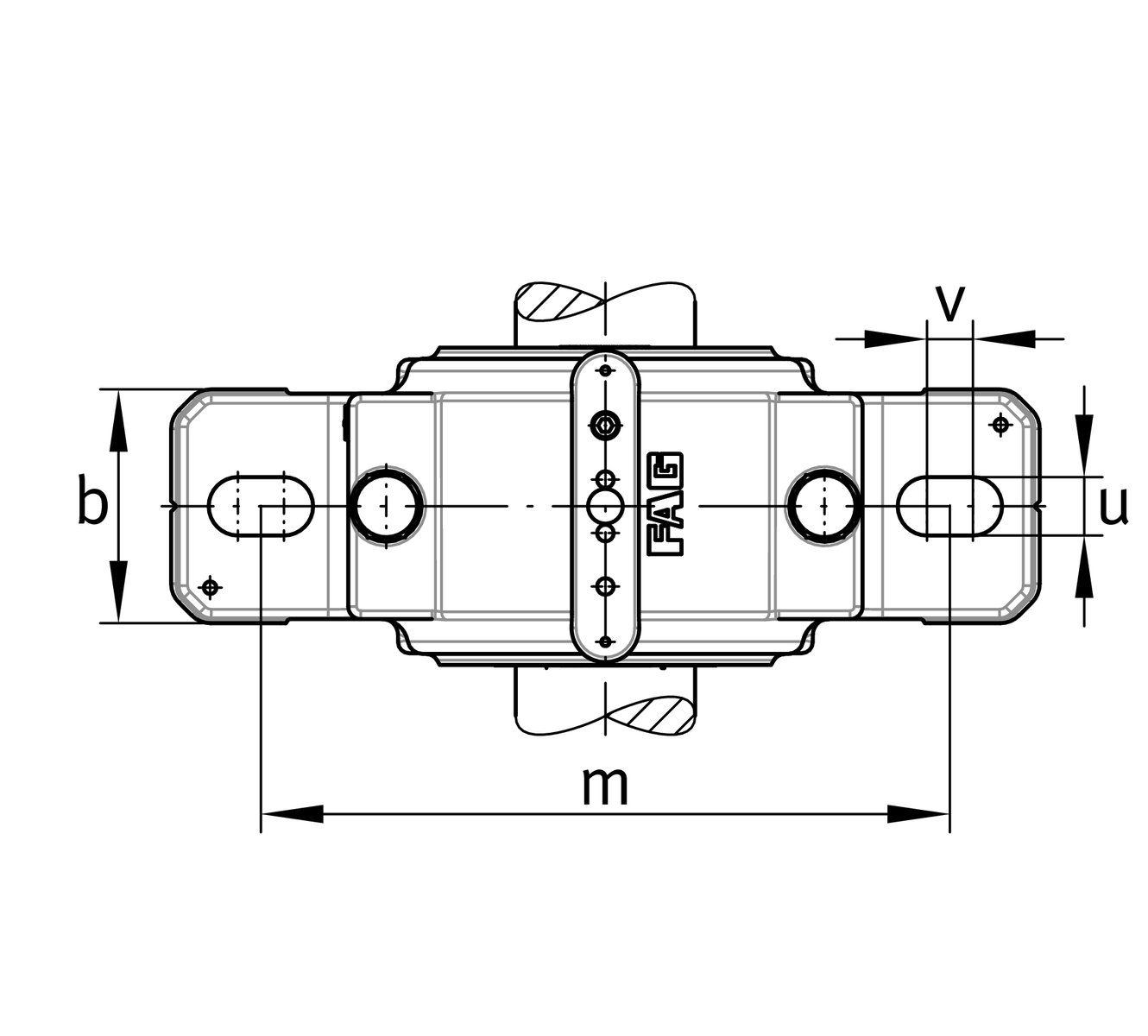

Dimensions
b
60.325 mm
Width foot
c
23.813 mm
Height foot
D
90 mm
Outside diameter bearing
e
2.54 mm
Offset Bearing centre
h
63.5 mm
Distance shaft axis
k
29.8 mm
Width bearing seat
m
171.45 mm
Distance mounting holes
s
12.7 mm
screw size
v
15.875 mm
Width oblong hole
v
6.35 mm
Length oblong hole
