Main Dimensions & Performance Data
| d | 35 mm | Bore diameter |
| H | 135 mm | Height flange |
| B1 | 51.3 mm | Locking collar total width |
| U | 31.3 mm | Total height unit |
| Cr | 27,500 N | Basic dynamic load rating, radial |
| C0r | 15,300 N | Basic static load rating, radial |
| Cur | 800 N | Fatigue load limit, radial |
| ≈m | 1.33 kg | Weight |

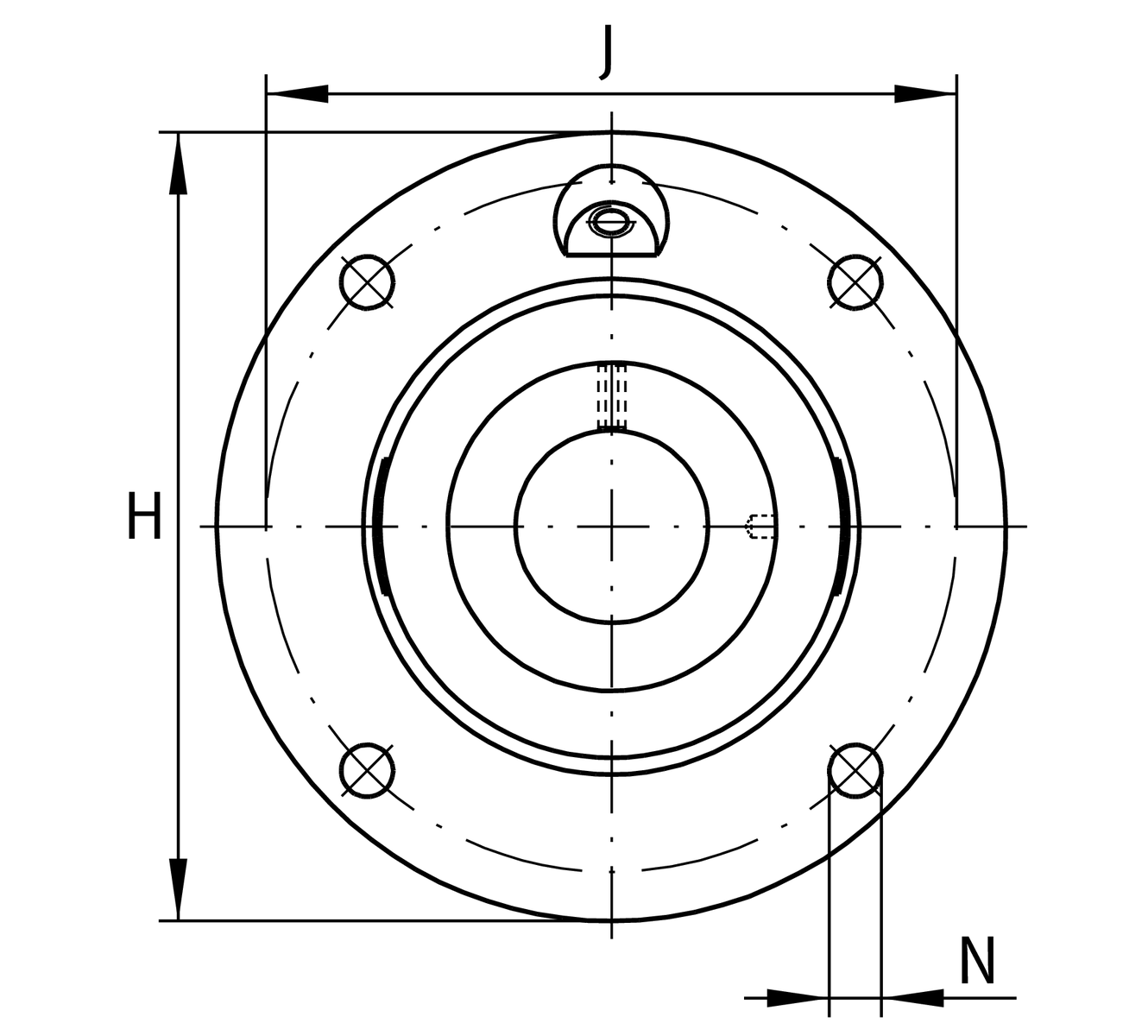

Mounting dimensions
| J | 110 mm | Pitch circle diameter (holes) |
| N | 11.5 mm | Fixing bore |
| Z | 90 mm | Diameter spigot |
h8 | Diameter spigot clearance | |
| n | 4 | Number of screwing holes |

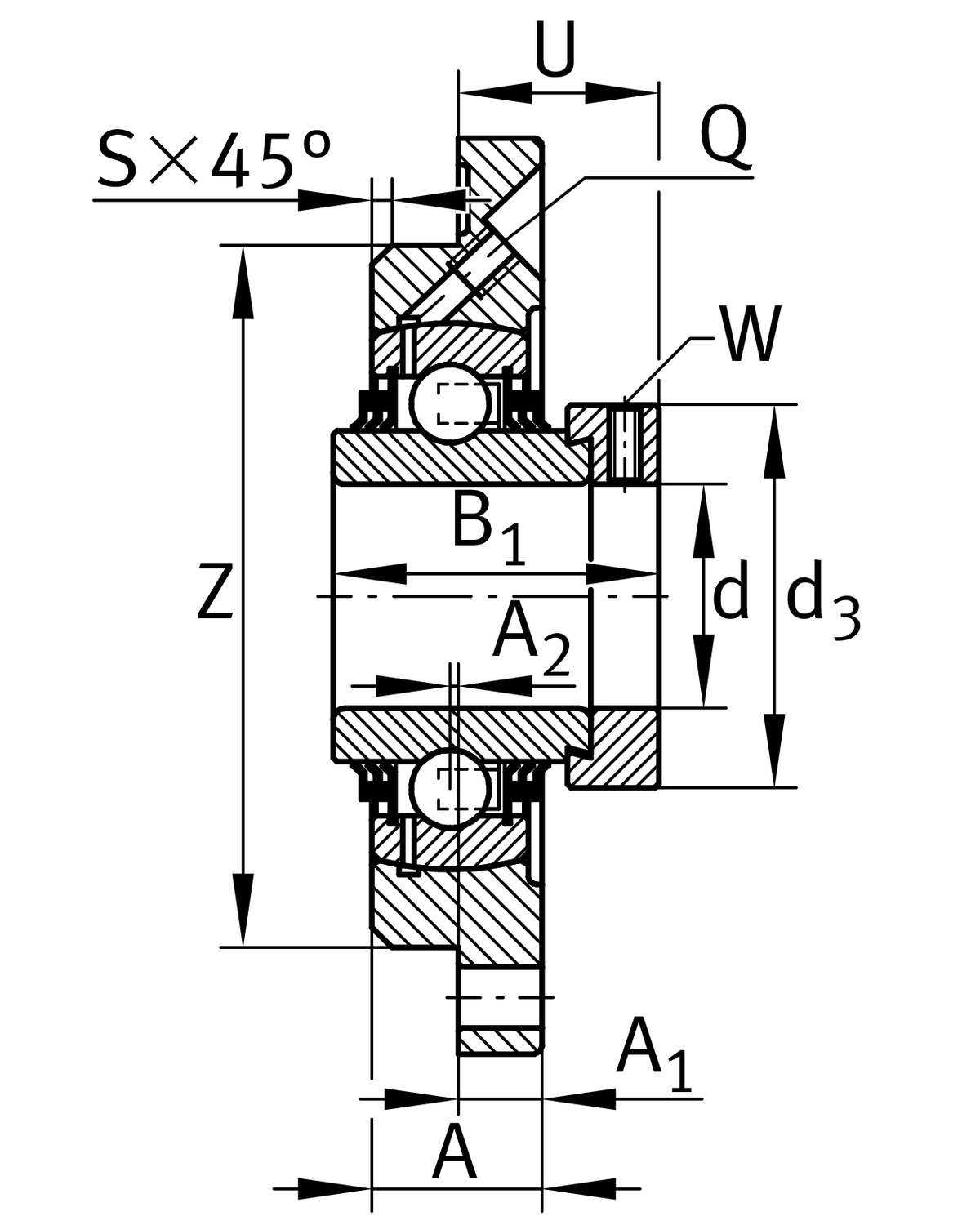

Dimensions
| A | 20.5 mm | Height housing |
| A1 | 10 mm | Thickness of flange |
| A2 | 1 mm | Distance raceway |
| B | 37.7 mm | Width |
| S | 2 mm | Chamfer width |
| Q | M6 | Connection thread for lubrication |
Additional information
1 | Number of housings | |
GG.ME07 | Housing | |
GE35-XL-KTT-B | Bearing designation | |
KASK07 | Protecting cap |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
