TME40-XL-N
Flanged housing unit TME40-XL-N
Thêm vào yêu cầu báo giá

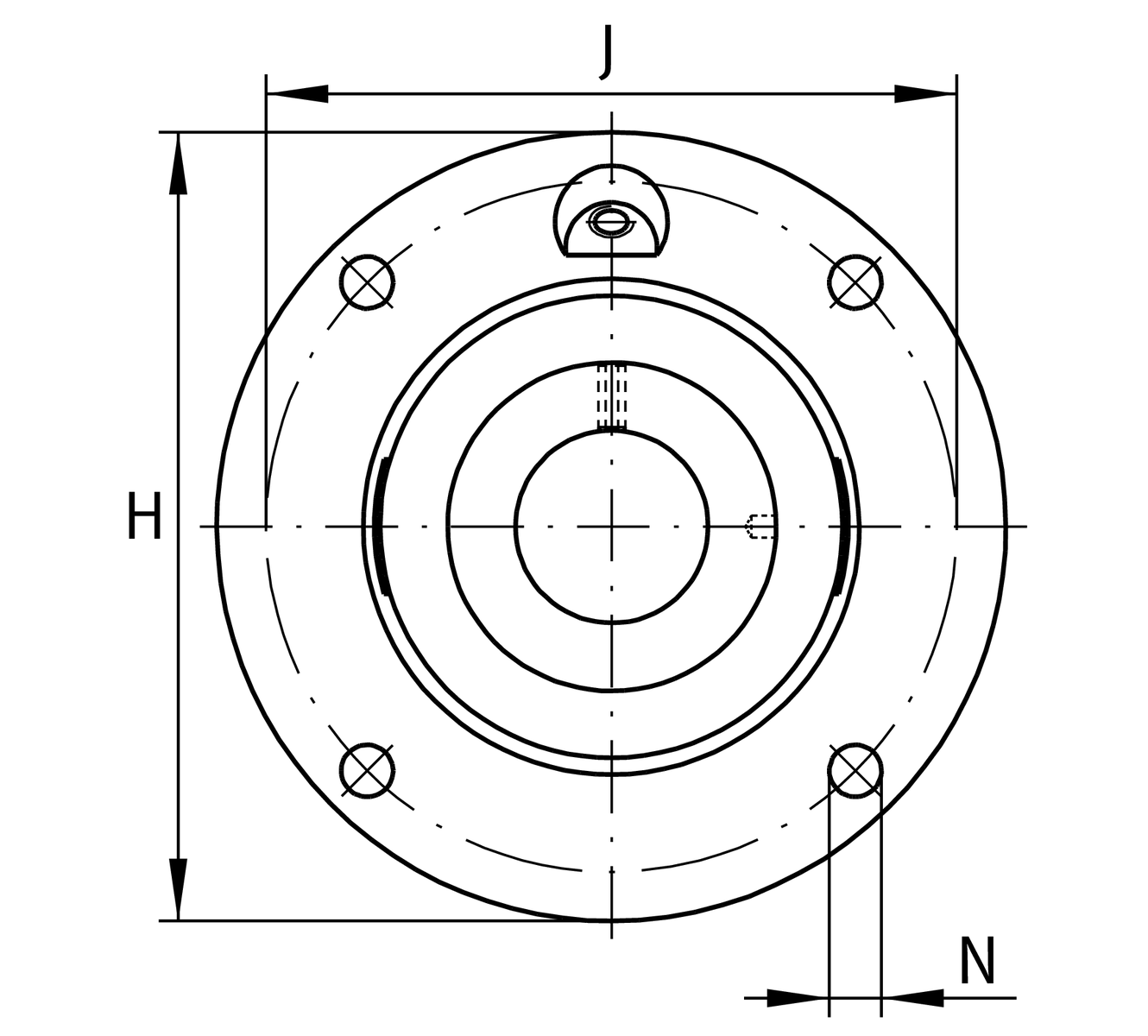

Main Dimensions & Performance Data
d
40 mm
Bore diameter
H
145 mm
Height flange
B1
56.5 mm
Locking collar total width
U
33.9 mm
Total height unit
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
840 N
Fatigue load limit, radial
≈m
1.74 kg
Weight

Mounting dimensions
J
120 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore
Z
100 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

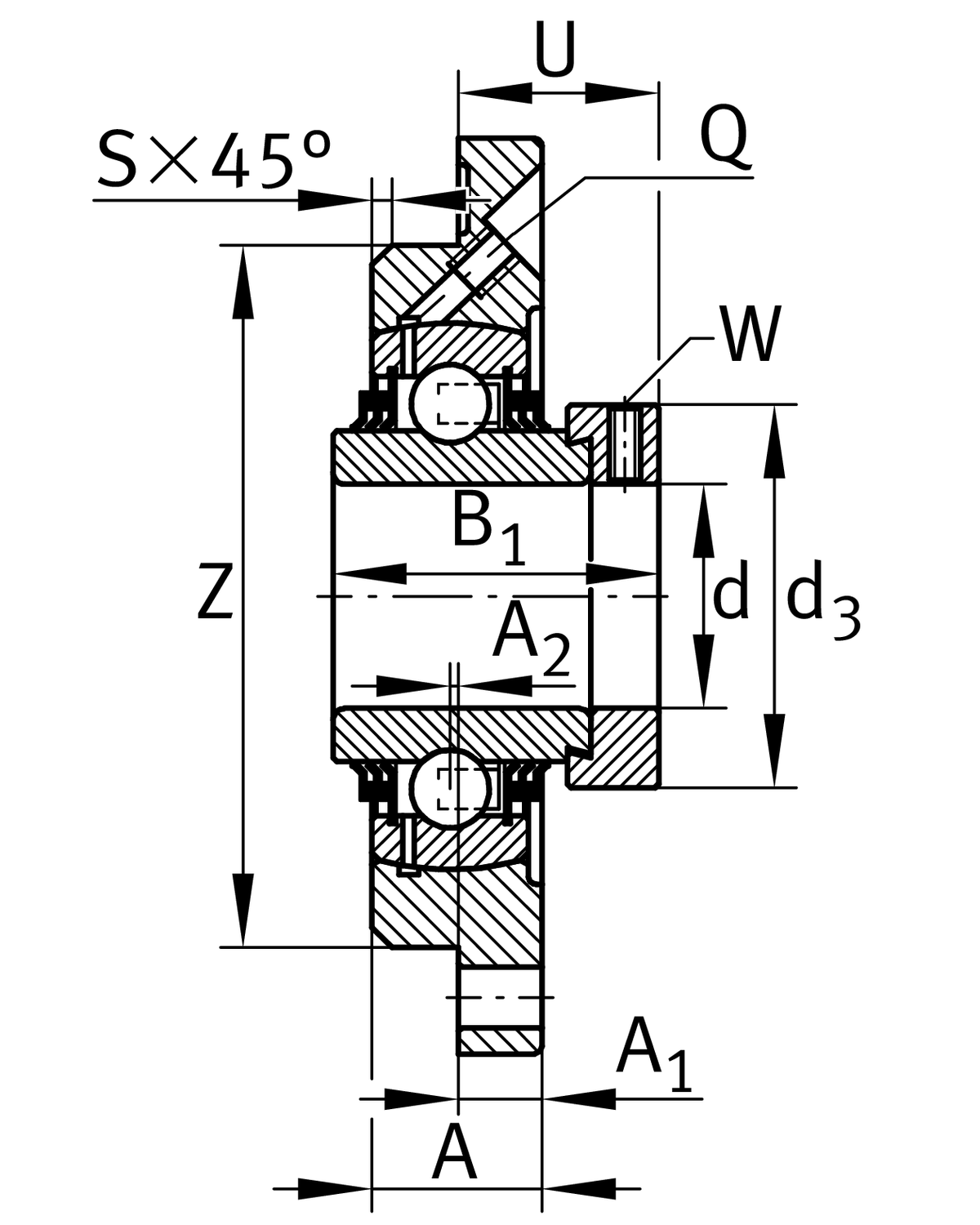

Dimensions
A
23 mm
Height housing
A1
11.5 mm
Thickness of flange
A2
1 mm
Distance raceway
S
2 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME08-G
Housing
GE40-XL-KTT-B
Bearing designation
KASK08
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
