TME30-XL-N
Flanged housing unit TME30-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
H
125 mm
Height flange
B1
48.5 mm
Locking collar total width
U
28.1 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
590 N
Fatigue load limit, radial
≈m
1.03 kg
Weight

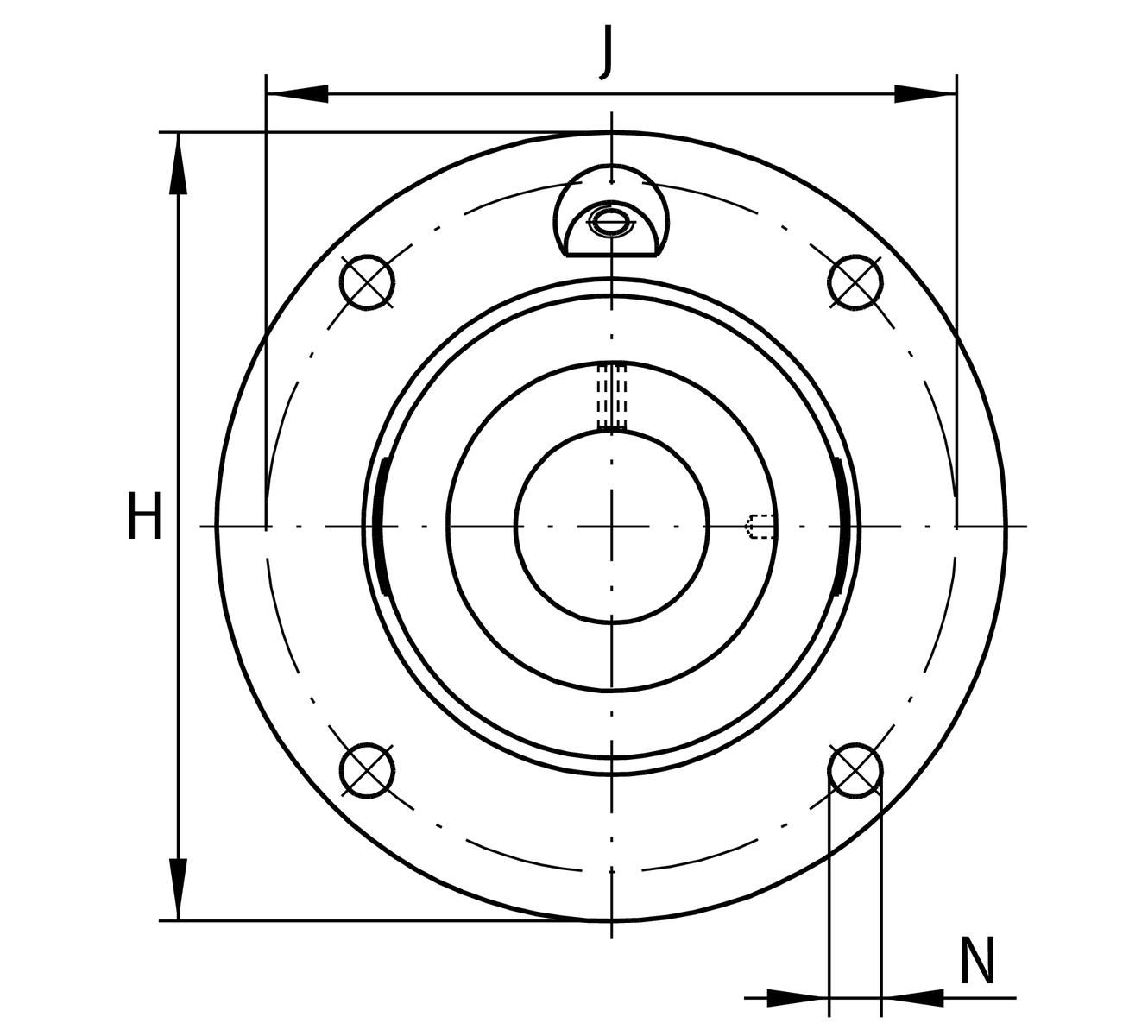

Mounting dimensions
J
100 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore
Z
80 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

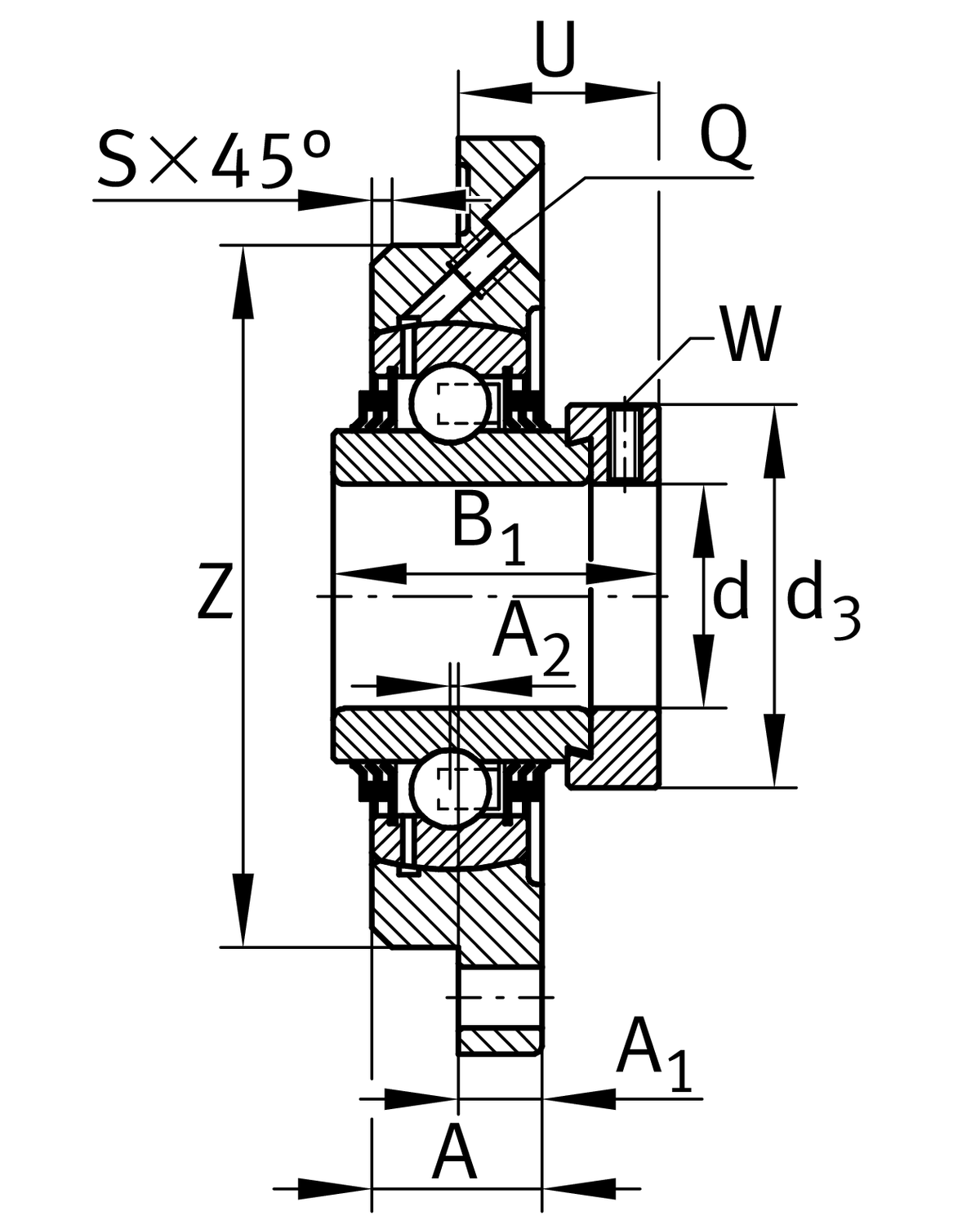

Dimensions
A
20.5 mm
Height housing
A1
9.5 mm
Thickness of flange
A2
2 mm
Distance raceway
S
2 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME06-N
Housing
GE30-XL-KTT-B
Bearing designation
KASK06
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
