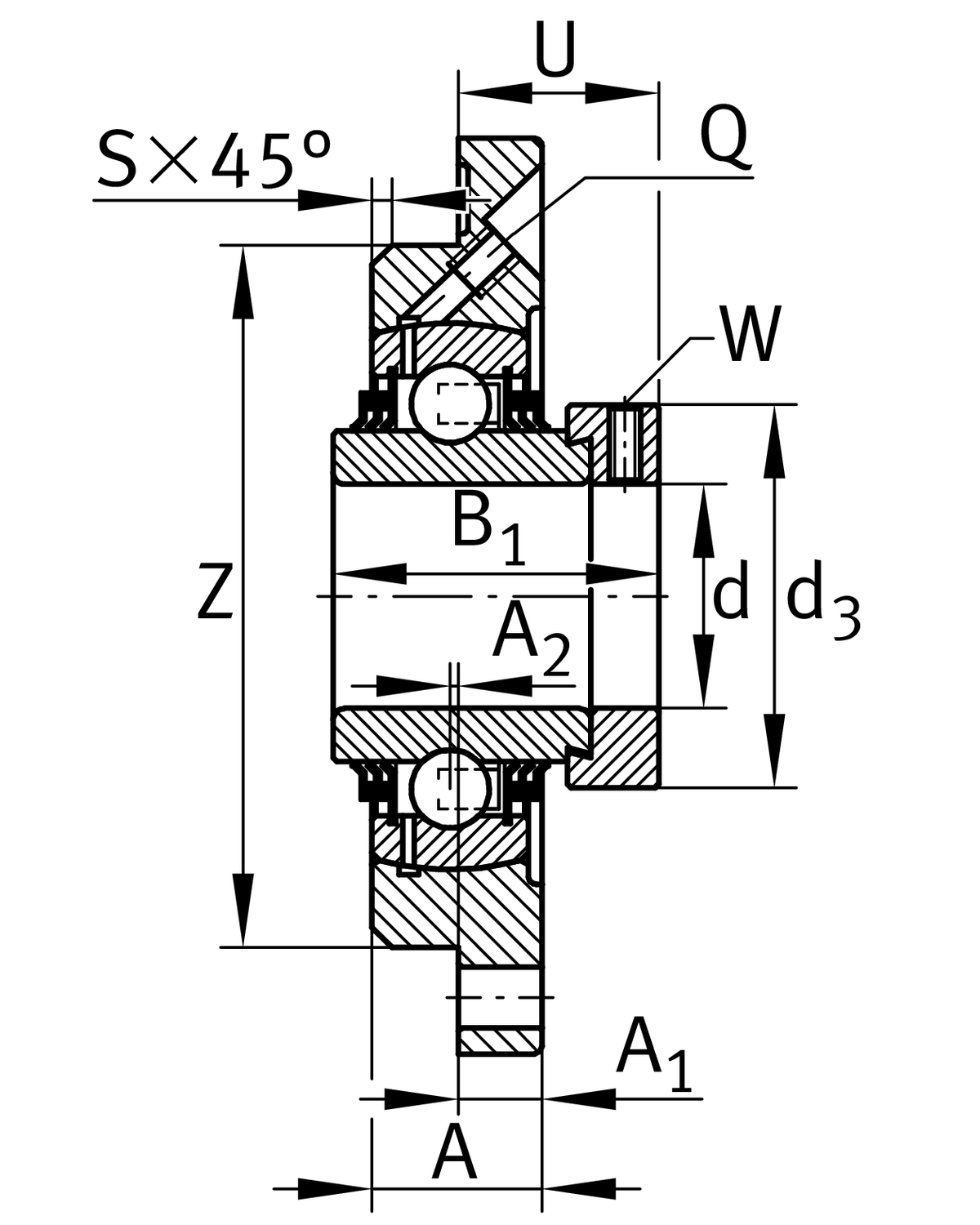

Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| H | 115 mm | Height flange |
| B1 | 44.5 mm | Locking collar total width |
| U | 24.4 mm | Total height unit |
| Cr | 14,900 N | Basic dynamic load rating, radial |
| C0r | 7,800 N | Basic static load rating, radial |
| Cur | 410 N | Fatigue load limit, radial |
| ≈m | 0.8 kg | Weight |
Mounting dimensions
| J | 90 mm | Pitch circle diameter (holes) |
| N | 9 mm | Fixing bore |
| Z | 70 mm | Diameter spigot |
h8 | Diameter spigot clearance | |
| n | 4 | Number of screwing holes |
Dimensions
| A | 19 mm | Height housing |
| A1 | 9 mm | Thickness of flange |
| A2 | 2.5 mm | Distance raceway |
| B | 34.9 mm | Width |
| S | 2 mm | Chamfer width |
| Q | M6 | Connection thread for lubrication |
Additional information
1 | Number of housings | |
GG.ME05-N | Housing | |
GE25-XL-KTT-B | Bearing designation | |
KASK05 | Protecting cap |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
