TME20-XL-N
Flanged housing unit TME20-XL-N
Thêm vào yêu cầu báo giá

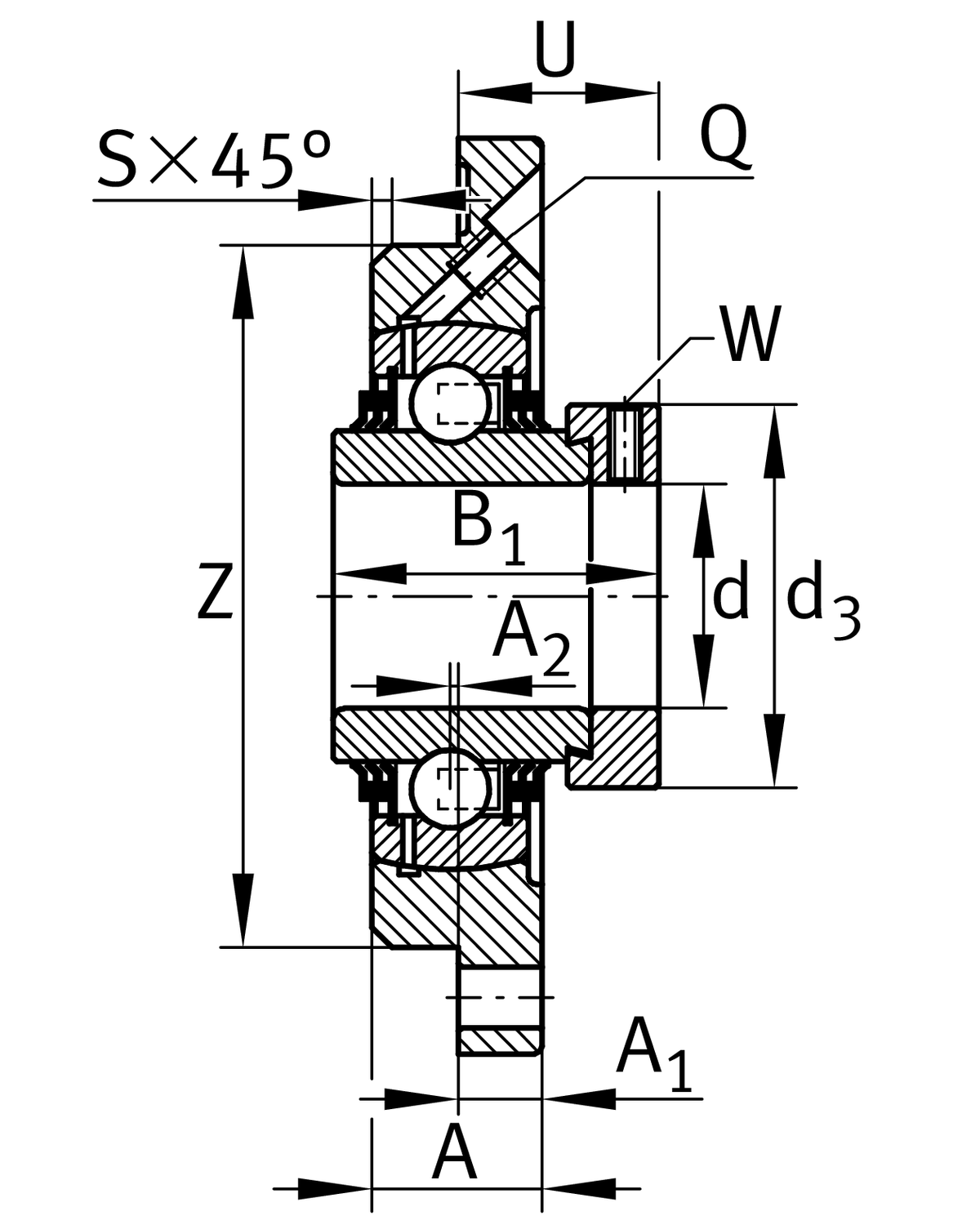

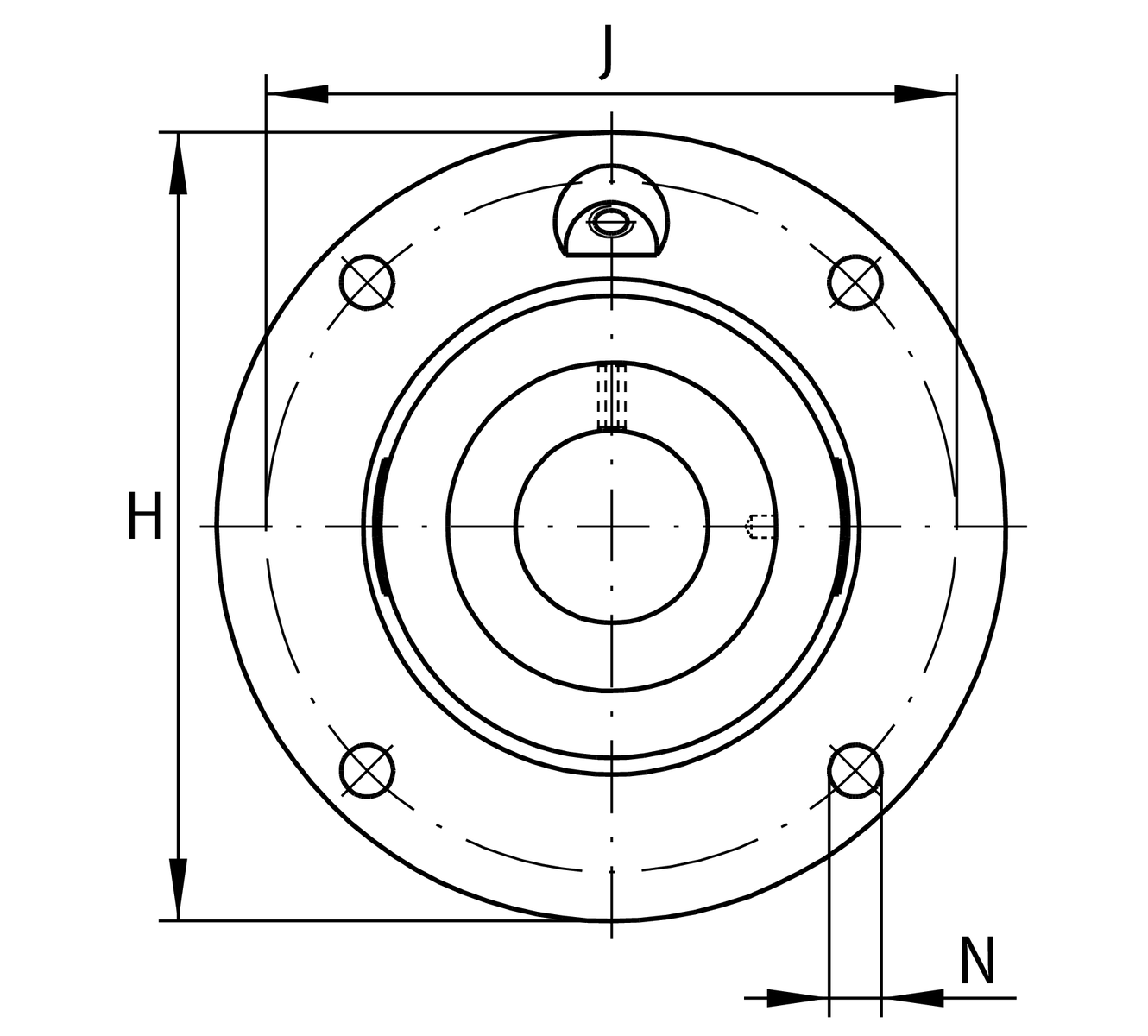

Main Dimensions & Performance Data
d
20 mm
Bore diameter
H
100 mm
Height flange
B1
43.7 mm
Locking collar total width
U
24.6 mm
Total height unit
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
0.57 kg
Weight

Mounting dimensions
J
78 mm
Pitch circle diameter (holes)
N
9 mm
Fixing bore
Z
62 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

Dimensions
A
17 mm
Height housing
A1
8 mm
Thickness of flange
A2
2 mm
Distance raceway
S
2 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME04-N
Housing
GE20-XL-KTT-B
Bearing designation
KASK04
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
