GLCTE40-TV-FA125.5
Flanged housing unit GLCTE40-TV-FA125.5
Thêm vào yêu cầu báo giá

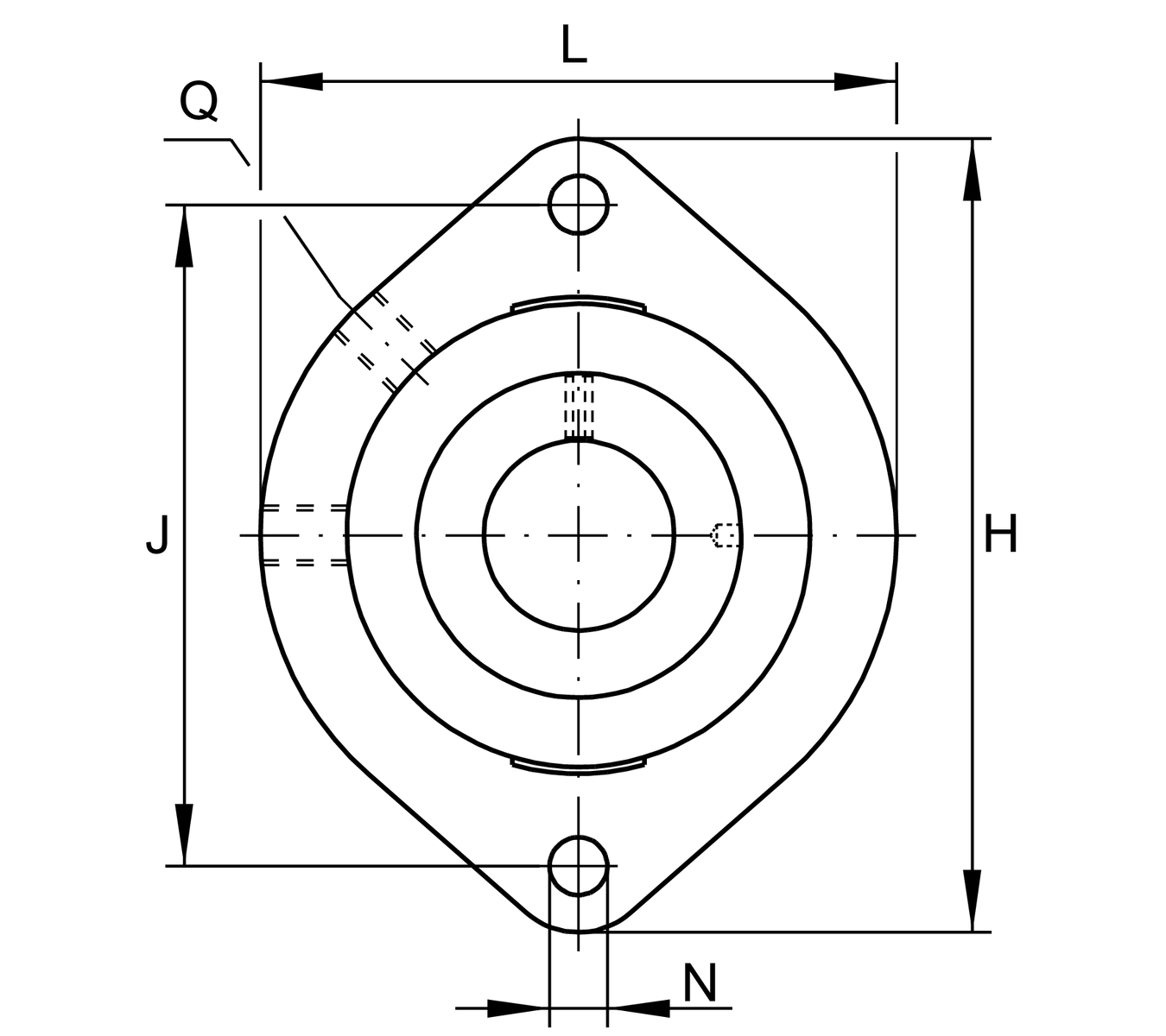

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
46.3 mm
Total height unit
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
C0r G
12,800 N
Load carrying capacity (housing)
≈m
0.86 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore
n
2
Number of screwing holes

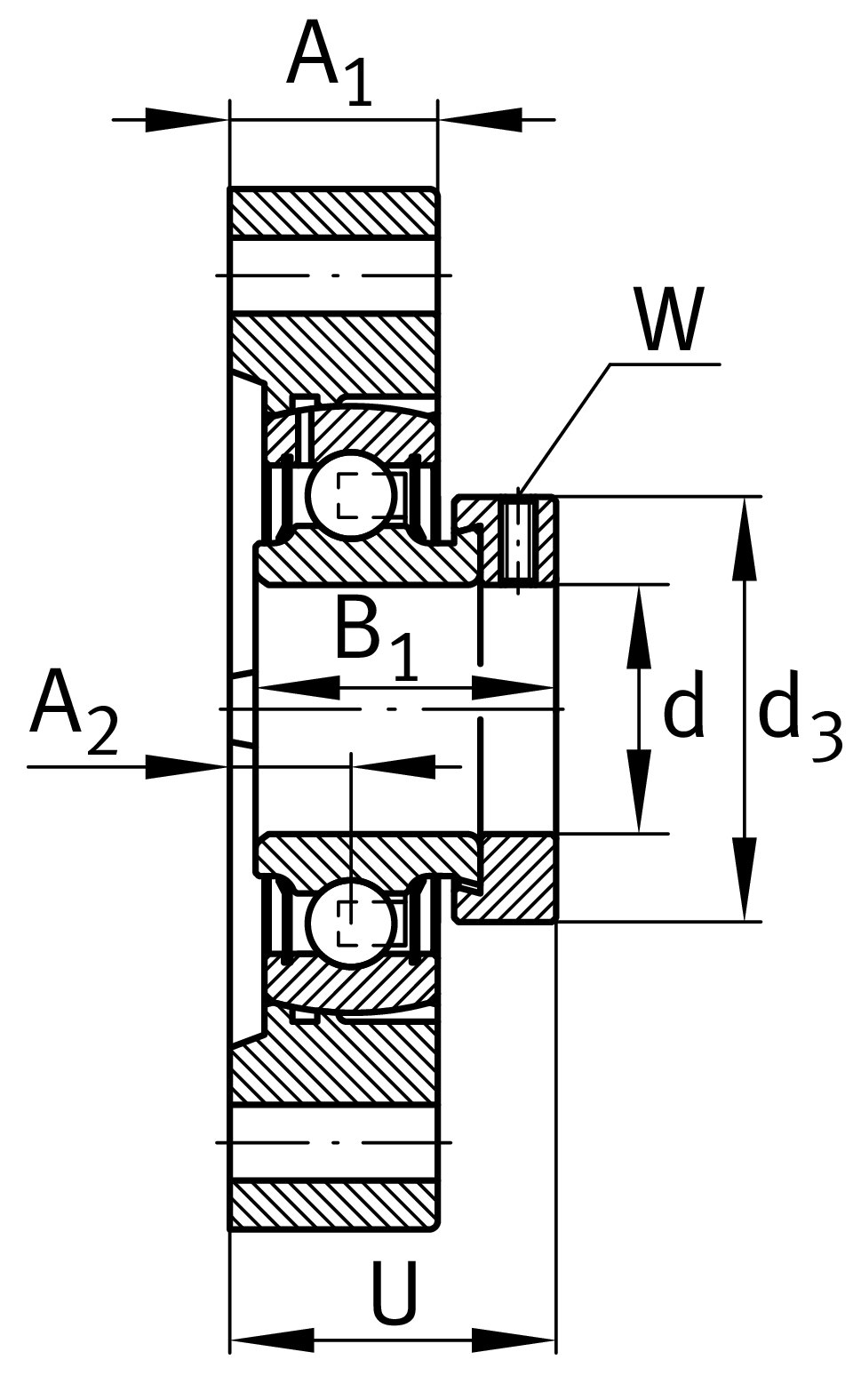

Dimensions
A1
24 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B1
43.8 mm
Locking collar total width
Q
1/4-28 UNF
Connection thread for lubrication
d3
58 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
GLCTE08-TV
Housing
GRAE40-NPP-B-FA107/125.5
Bearing designation
KASK08-S-G
Protecting cap

Temperature range
Tmin
-35 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTVPlastic
Manufacturing instructionFA125.5Bearing with Corrotect coating
