GLCTE40-FA125.8
Flanged housing unit GLCTE40-FA125.8
Thêm vào yêu cầu báo giá

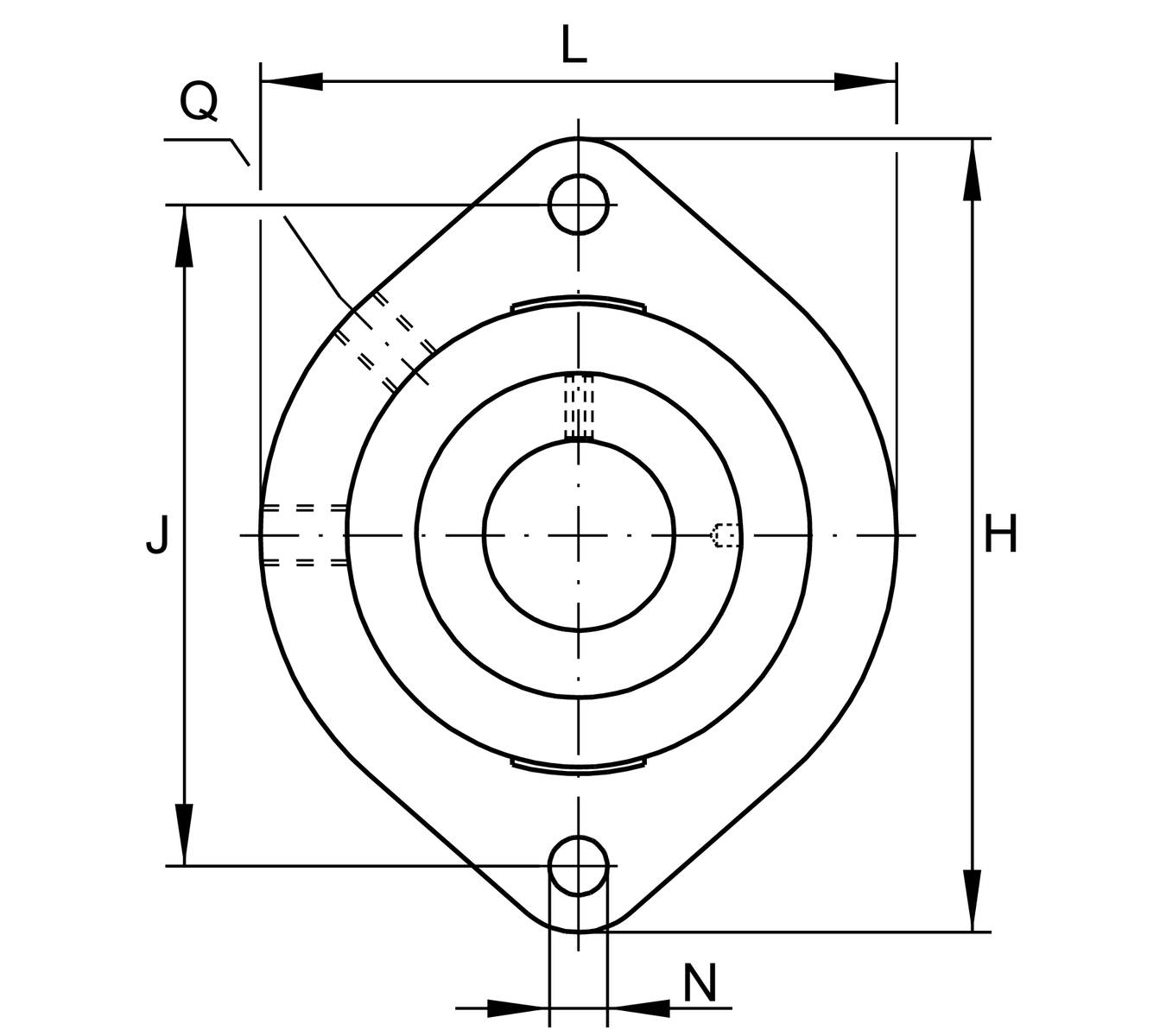

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
46.3 mm
Total height unit
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
≈m
1.27 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore
W
5 mm
Width across flats
n
2
Number of screwing holes

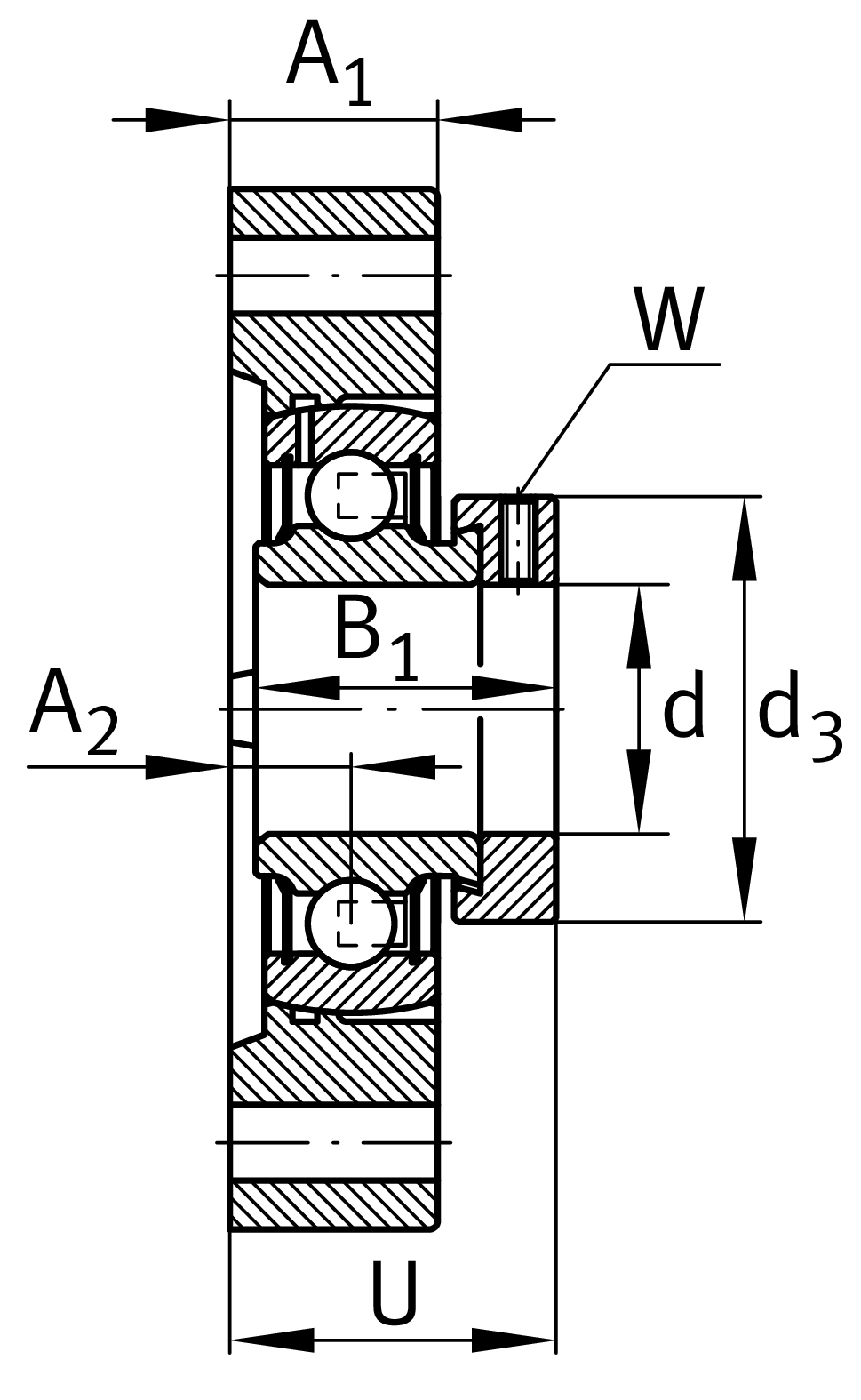

Dimensions
A1
26 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B1
43.8 mm
Locking collar total width
Q
M6
Connection thread for lubrication
d3
58 mm
Outside diameter eccentric locking collar

Additional information
GEHGLCTE08-GG-FA125.1
Housing
GRAE40-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Manufacturing instructionFA125.8Housing with Corrotect coating
