GLCTE40-TV-VA-FD
Flanged housing unit GLCTE40-TV-VA-FD
Thêm vào yêu cầu báo giá

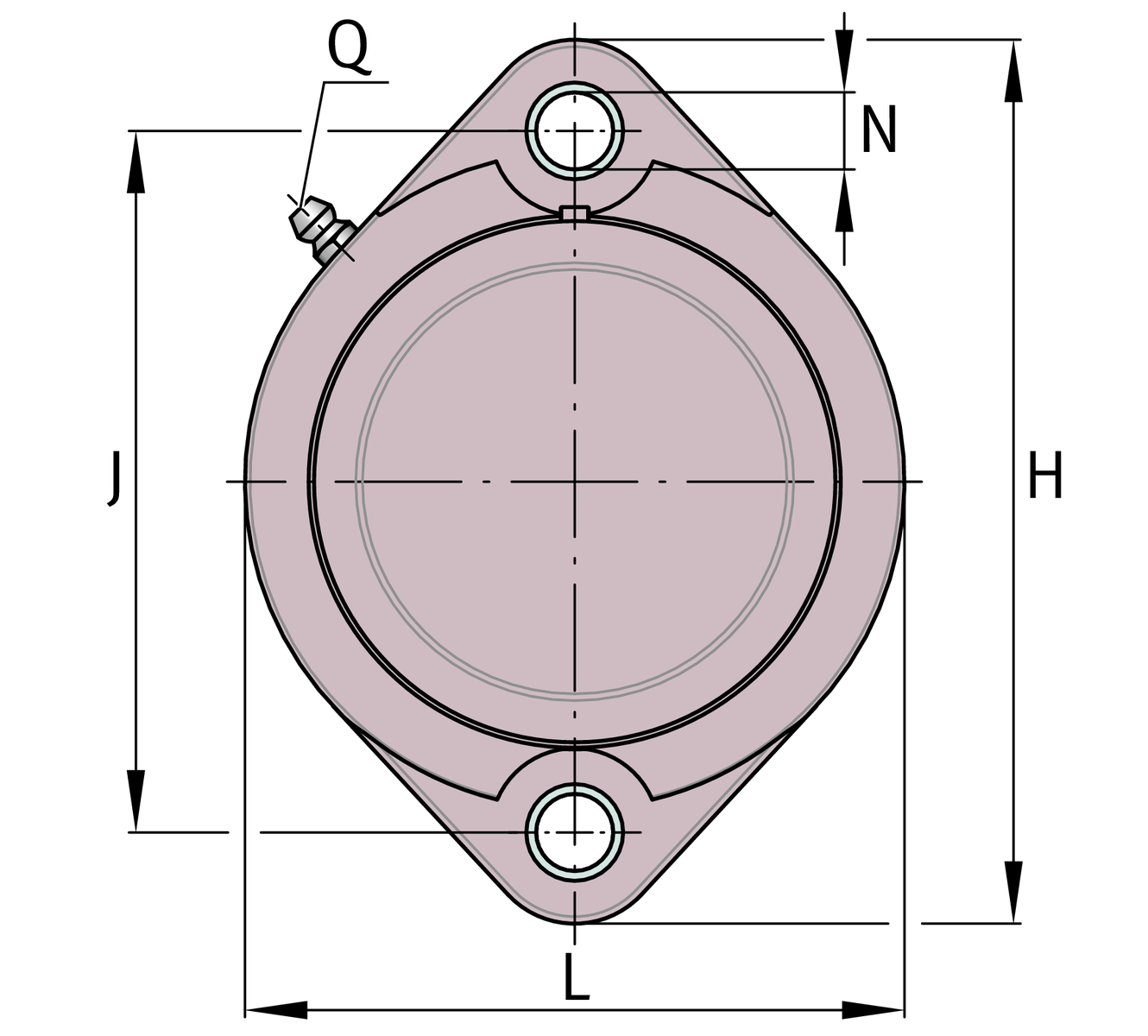

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
48.2 mm
Total height unit
Cr
29,520 N
Basic dynamic load rating, radial
C0r
18,140 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
C0r G
12,800 N
Load carrying capacity (housing)
≈m
0.82 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore
W
4 mm
Width across flats

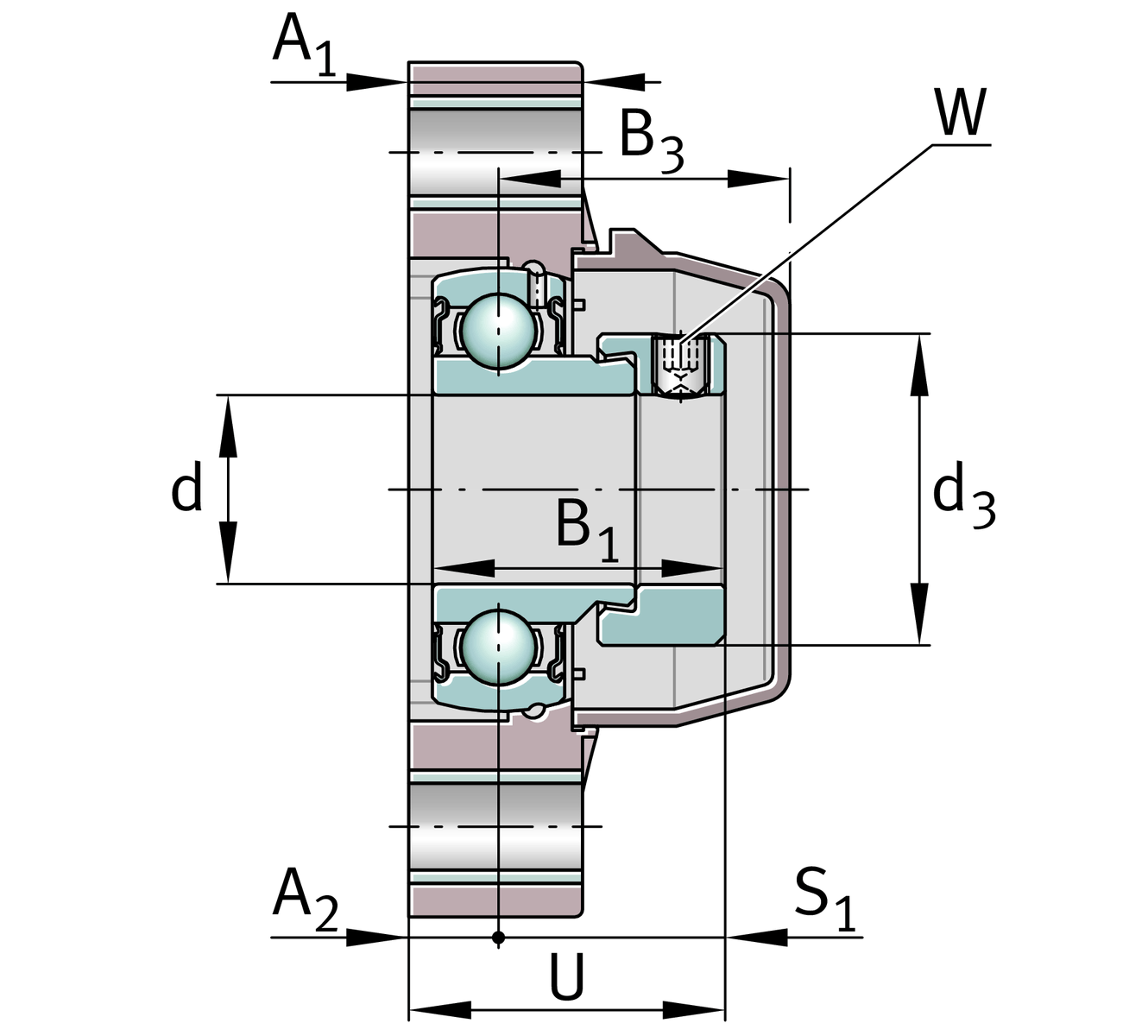

Dimensions
A1
24 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B1
43.7 mm
Locking collar total width
B3
47.5 mm
Distance housing centre to cap end
S1
34.7 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
60.3 mm
Outside diameter eccentric locking collar

Additional information
GEH.GLCTE08-TV-WHT
Housing
GE40-KRR-B-FA107-VA-FD
Bearing designation
KASK08-S-G-WHT
Protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTV-FDPlastic for food industry
