GRA35-XL
Flanged housing unit GRA35-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
35 mm
Bore diameter
H
122 mm
Height flange
H
122 mm
Flange width
U
32 mm
Total height unit
B1
39 mm
Locking collar total width
Cur
650 N
Fatigue load limit, radial
Cr
25,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
C0r G
6,400 N
Load carrying capacity (housing)
≈m
0.85 kg
Weight

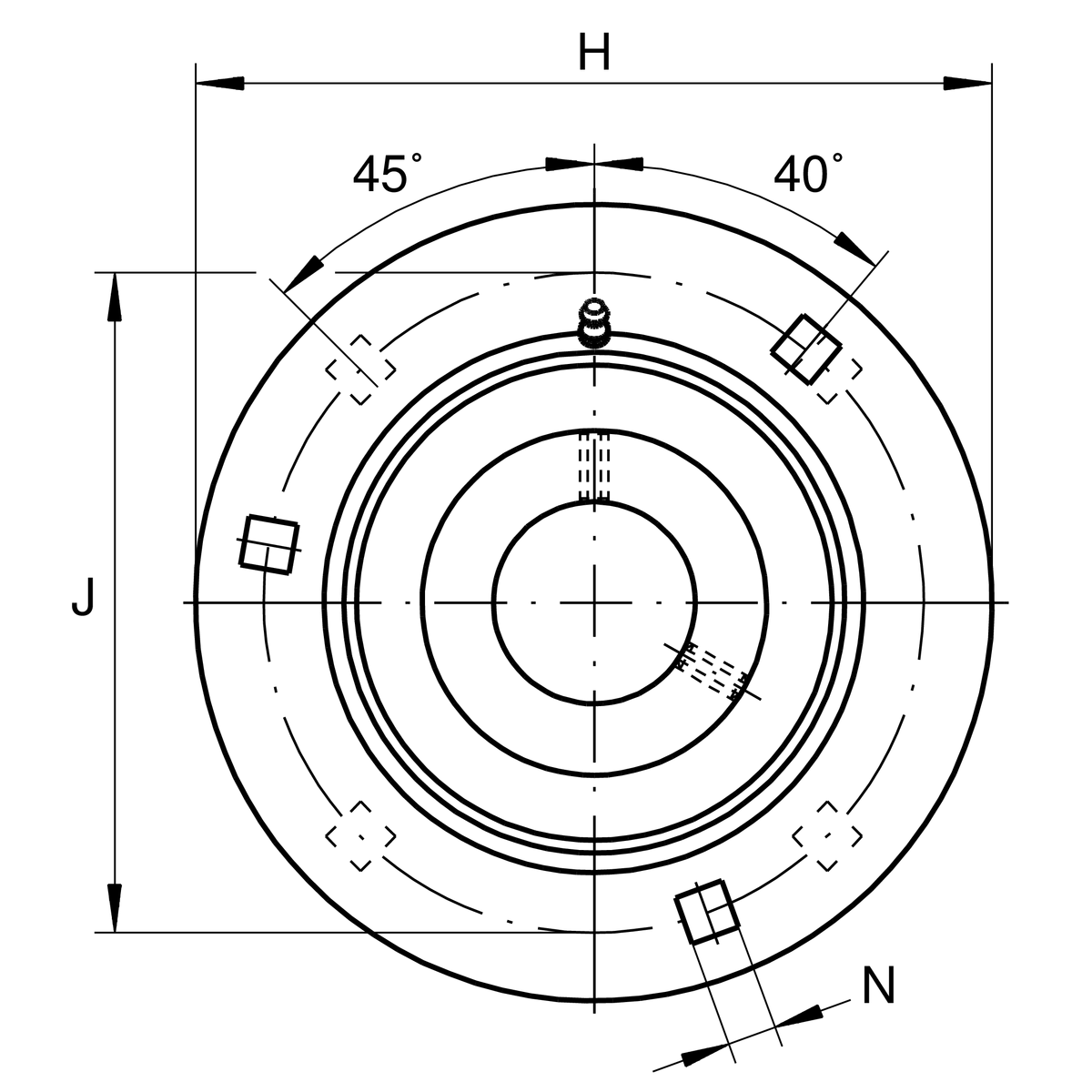

Mounting dimensions
J
100 mm
Pitch circle diameter (holes)
N
10.5 mm
Fixing square
n
3
Number of screwing holes
n
3
Number of screws

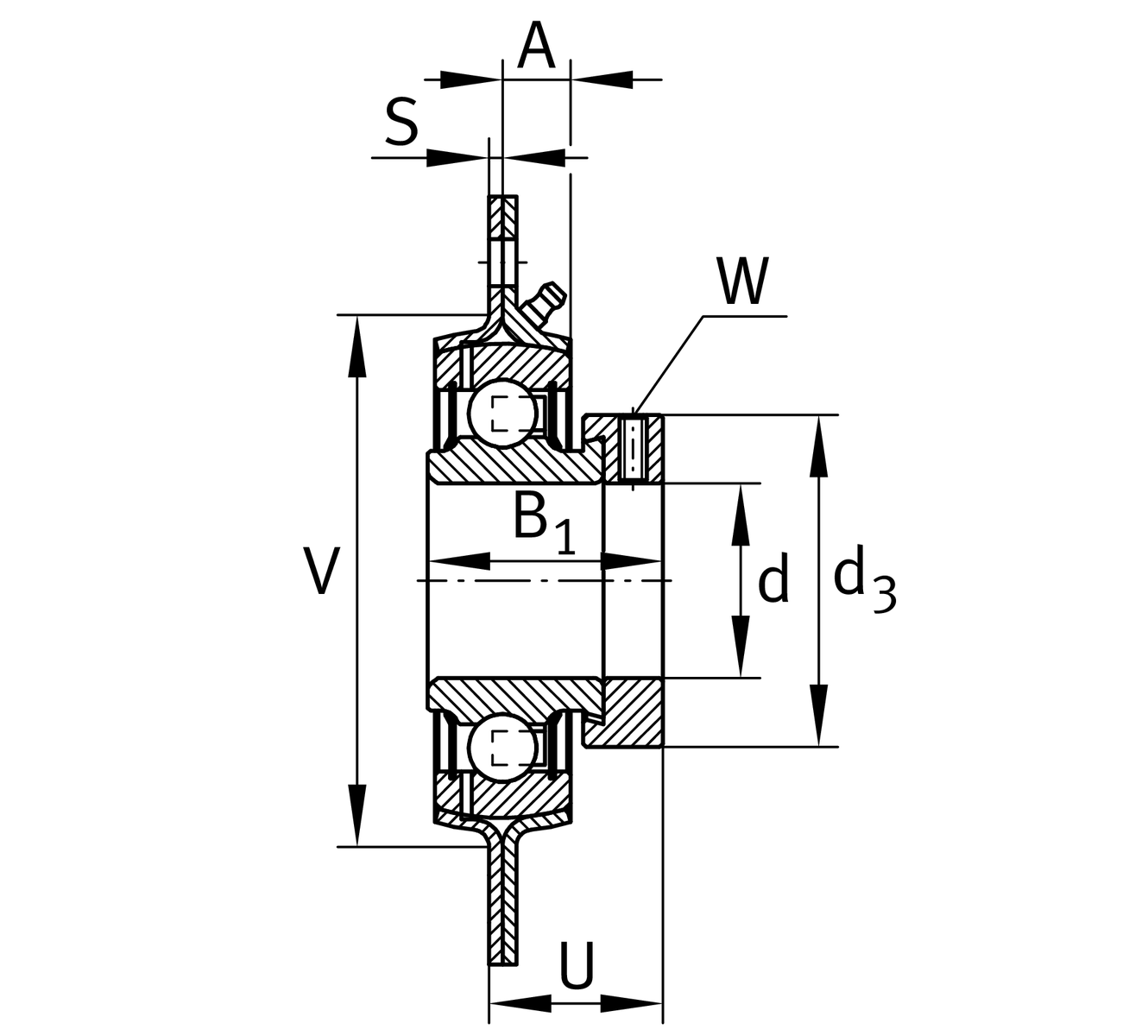

Dimensions
A
9.5 mm
Height housing
S
2.5 mm
Thickness of flange
V
81 mm
Shoulder diameter housing
d3
37.5 mm
Outside diameter eccentric locking collar
d3
55 mm
Outside diameter locking collar/locknut

Additional information
1
Number of housings
1
Number of housings 2
FLAN72-MSB
Housing
FLAN72-MSA
Housing (Part 2)
EXZ
Fixing
GRAE35-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
