Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| H | 147.5 mm | Height flange |
| H | 147.5 mm | Flange width |
| U | 36.2 mm | Total height unit |
| B1 | 43.8 mm | Locking collar total width |
| Cur | 1,030 N | Fatigue load limit, radial |
| Cr | 34,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| C0r G | 7,700 N | Load carrying capacity (housing) |
| ≈m | 1.31 kg | Weight |

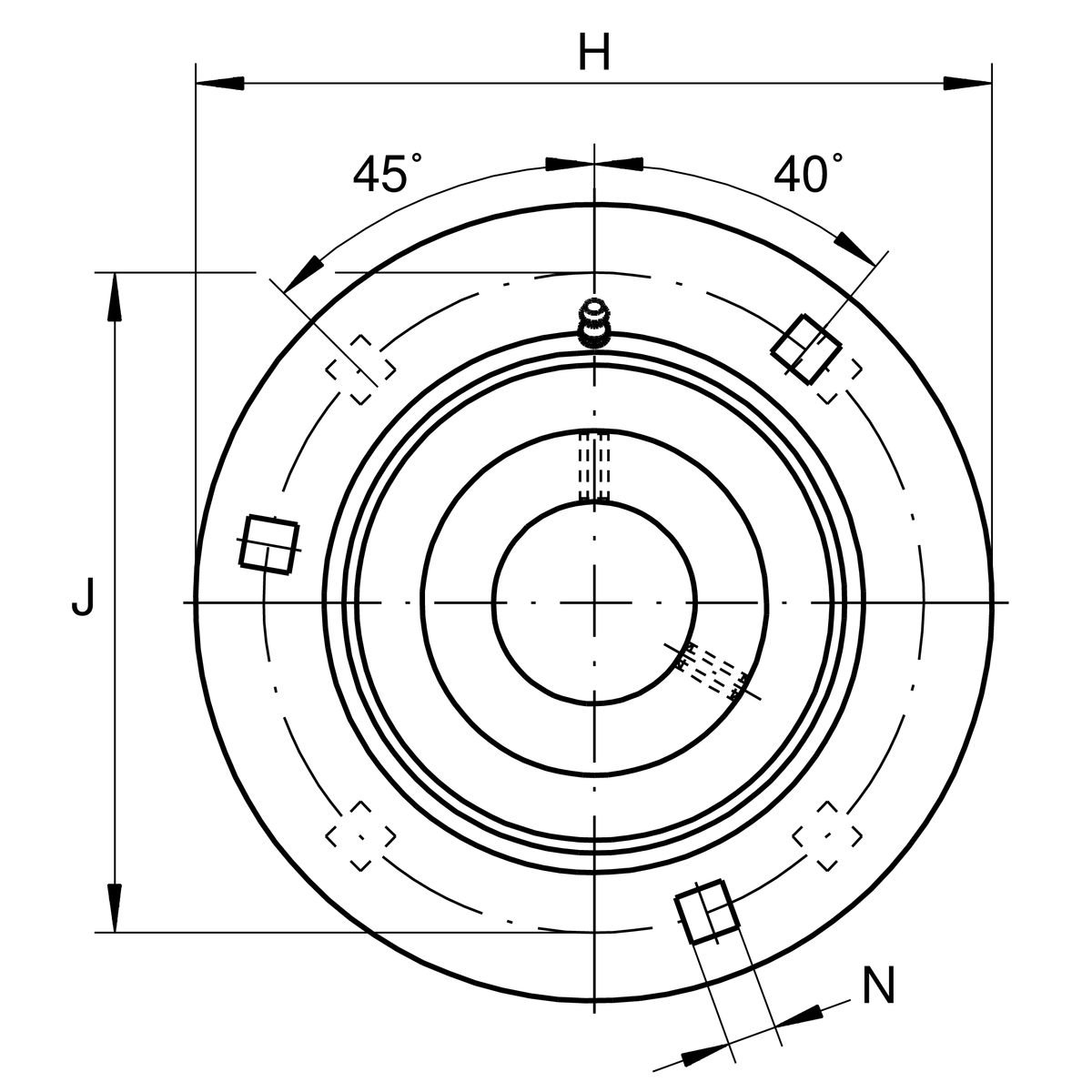

Mounting dimensions
| J | 119 mm | Pitch circle diameter (holes) |
| N | 13.5 mm | Fixing square |
| n | 4 | Number of screwing holes |
| n | 4 | Number of screws |

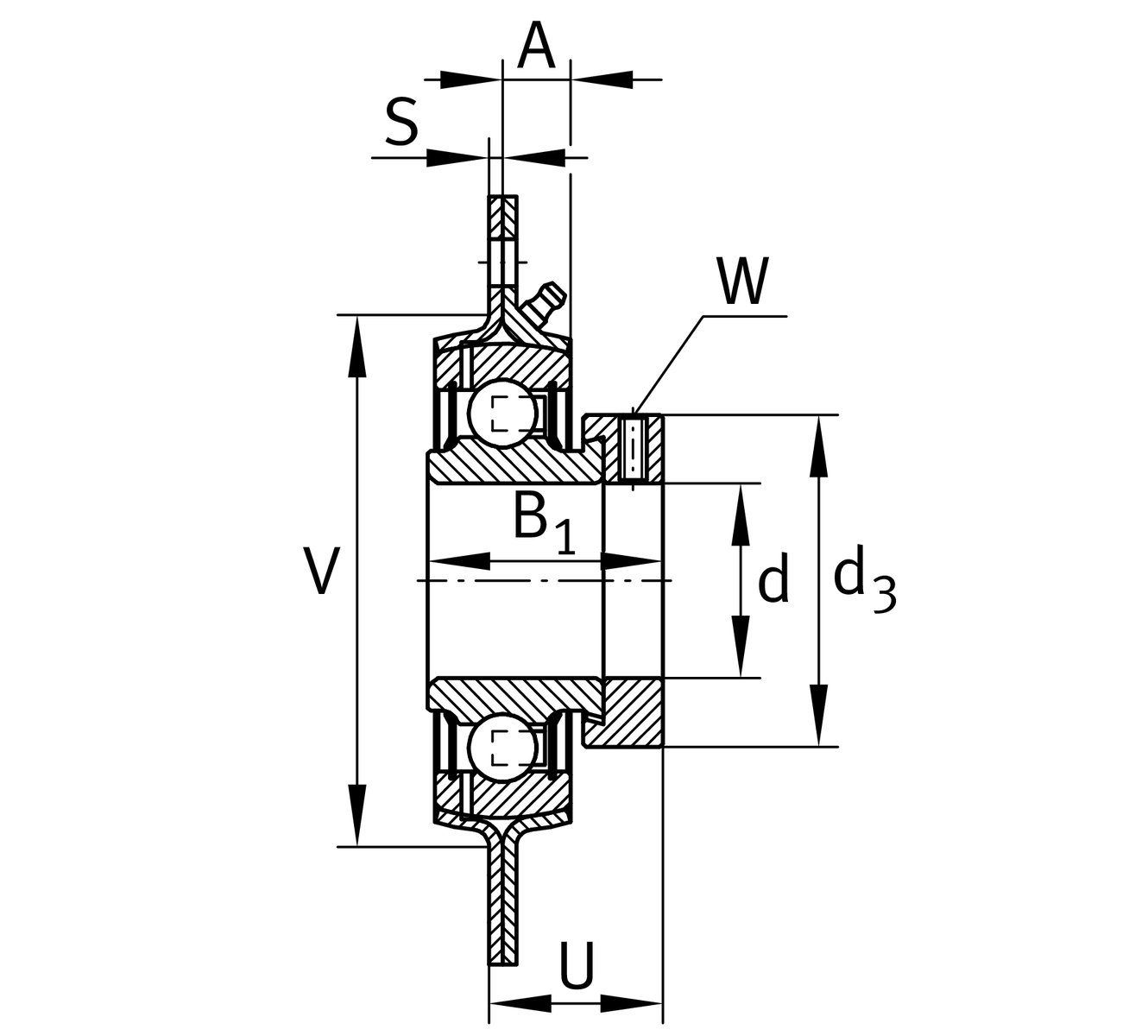

Dimensions
| A | 10.3 mm | Height housing |
| S | 3.5 mm | Thickness of flange |
| V | 90 mm | Shoulder diameter housing |
| d3 | 37.5 mm | Outside diameter eccentric locking collar |
| d3 | 58 mm | Outside diameter locking collar/locknut |
Additional information
1 | Number of housings | |
1 | Number of housings 2 | |
FLAN80-MSB | Housing | |
FLAN80-MSA | Housing (Part 2) | |
EXZ | Fixing | |
GRAE40-XL-NPP-B | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | Stahlblech | Steel sheet |
