Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| H | 112.7 mm | Height flange |
| H | 112.7 mm | Flange width |
| U | 29.2 mm | Total height unit |
| B1 | 35.8 mm | Locking collar total width |
| Cur | 480 N | Fatigue load limit, radial |
| Cr | 20,700 N | Basic dynamic load rating, radial |
| C0r | 11,300 N | Basic static load rating, radial |
| C0r G | 5,000 N | Load carrying capacity (housing) |
| ≈m | 0.64 kg | Weight |

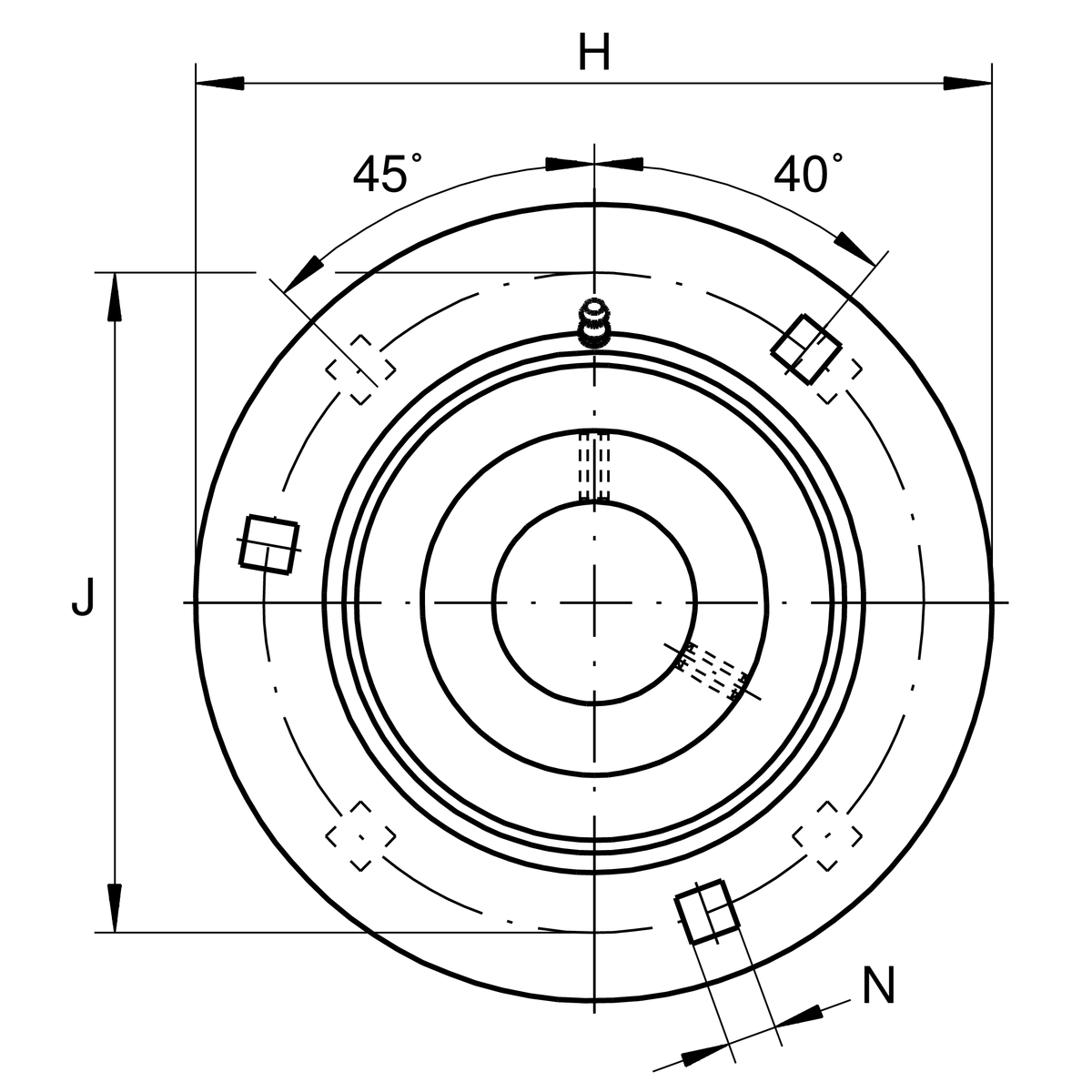

Mounting dimensions
| J | 90.5 mm | Pitch circle diameter (holes) |
| N | 10.5 mm | Fixing square |
| n | 3 | Number of screwing holes |
| n | 3 | Number of screws |

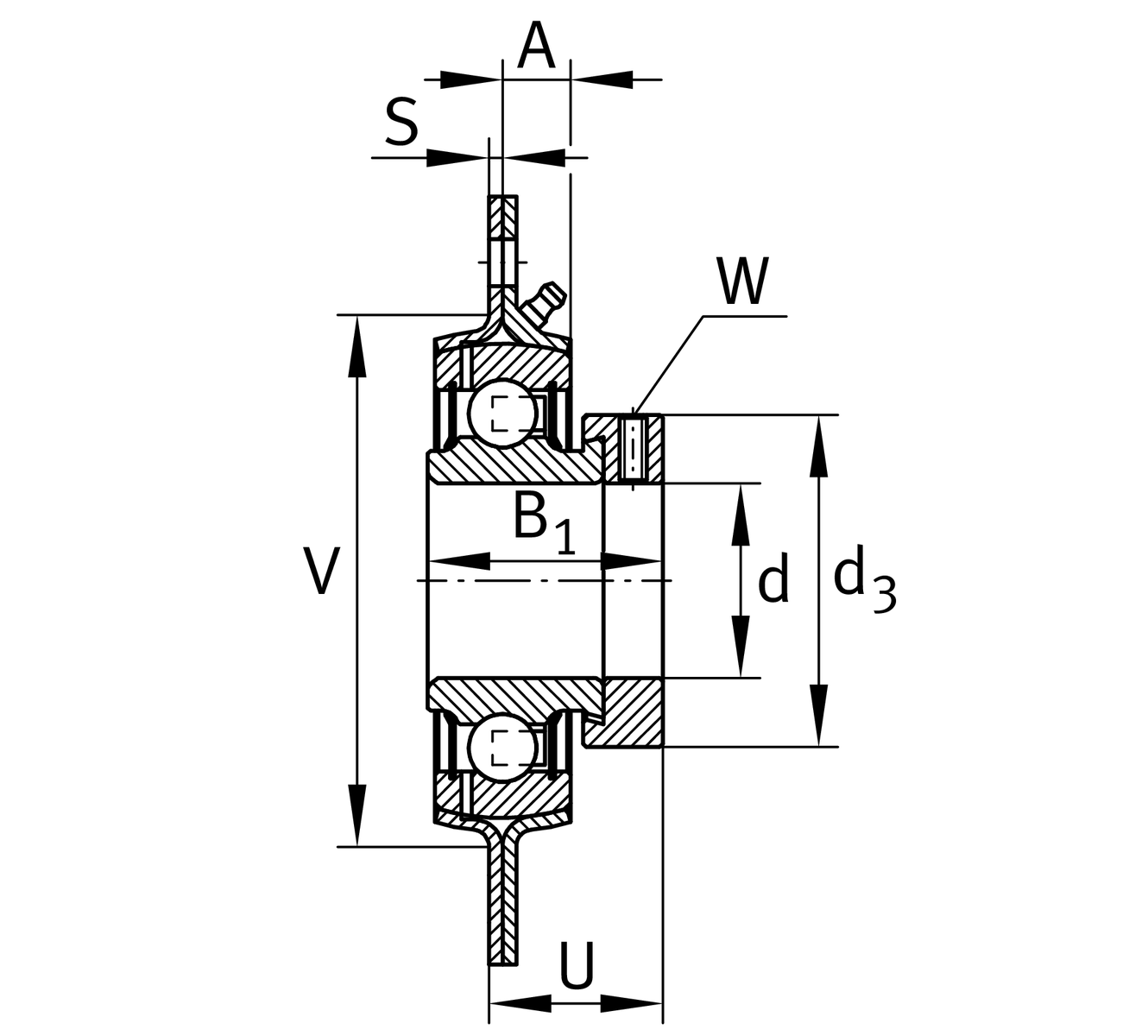

Dimensions
| A | 8.7 mm | Height housing |
| S | 2.5 mm | Thickness of flange |
| V | 71 mm | Shoulder diameter housing |
| d3 | 37.5 mm | Outside diameter eccentric locking collar |
| d3 | 44 mm | Outside diameter locking collar/locknut |
Additional information
1 | Number of housings | |
1 | Number of housings 2 | |
FLAN62-MSB | Housing | |
FLAN62-MSA | Housing (Part 2) | |
EXZ | Fixing | |
GRAE30-XL-NPP-B | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | Stahlblech | Steel sheet |
