GLCTE30-TV-FA125.5
Flanged housing unit GLCTE30-TV-FA125.5
Thêm vào yêu cầu báo giá

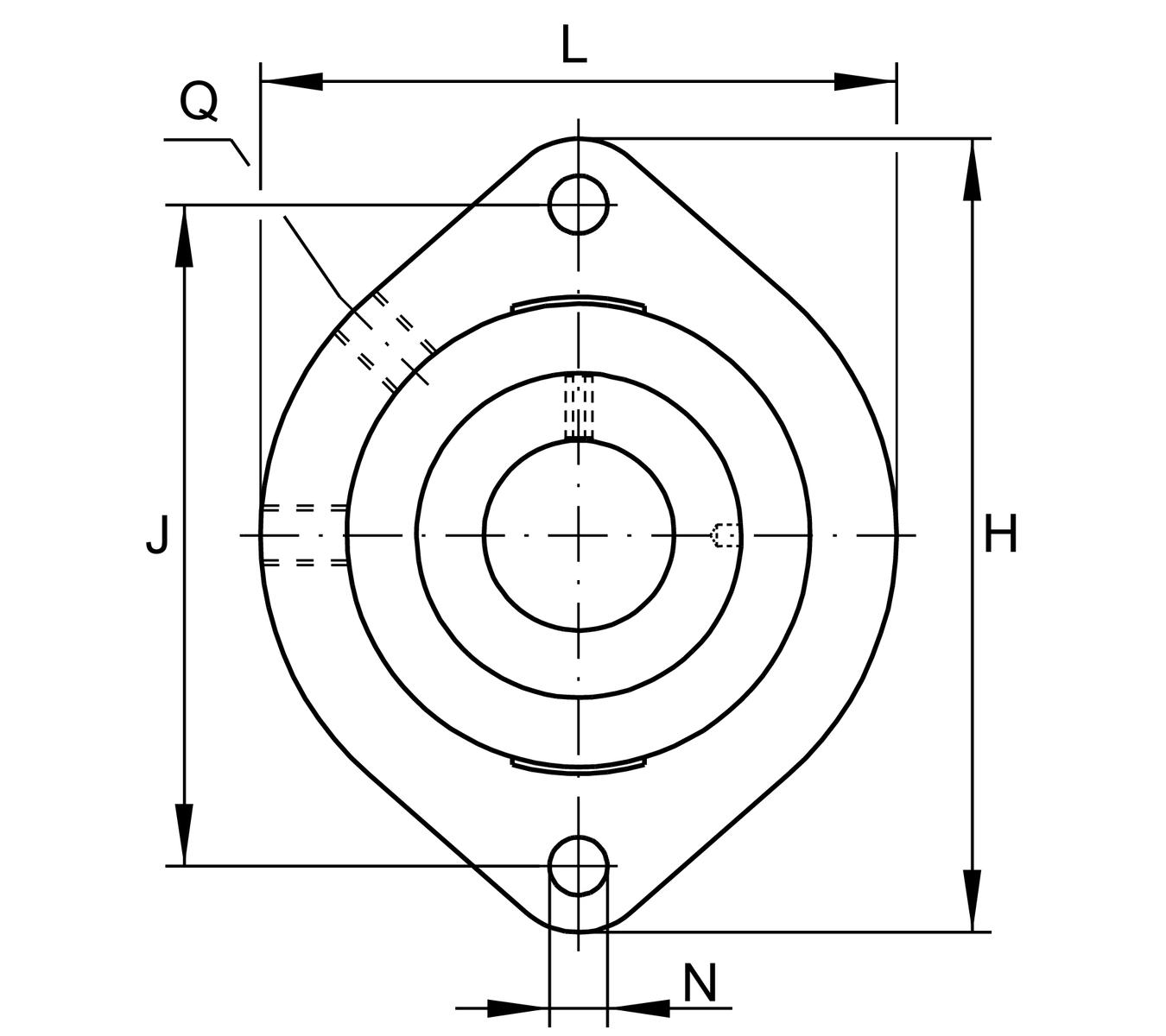

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
U
38.3 mm
Total height unit
Cr
17,100 N
Basic dynamic load rating, radial
C0r
9,200 N
Basic static load rating, radial
C0r G
12,000 N
Load carrying capacity (housing)
≈m
0.47 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
2
Number of screwing holes

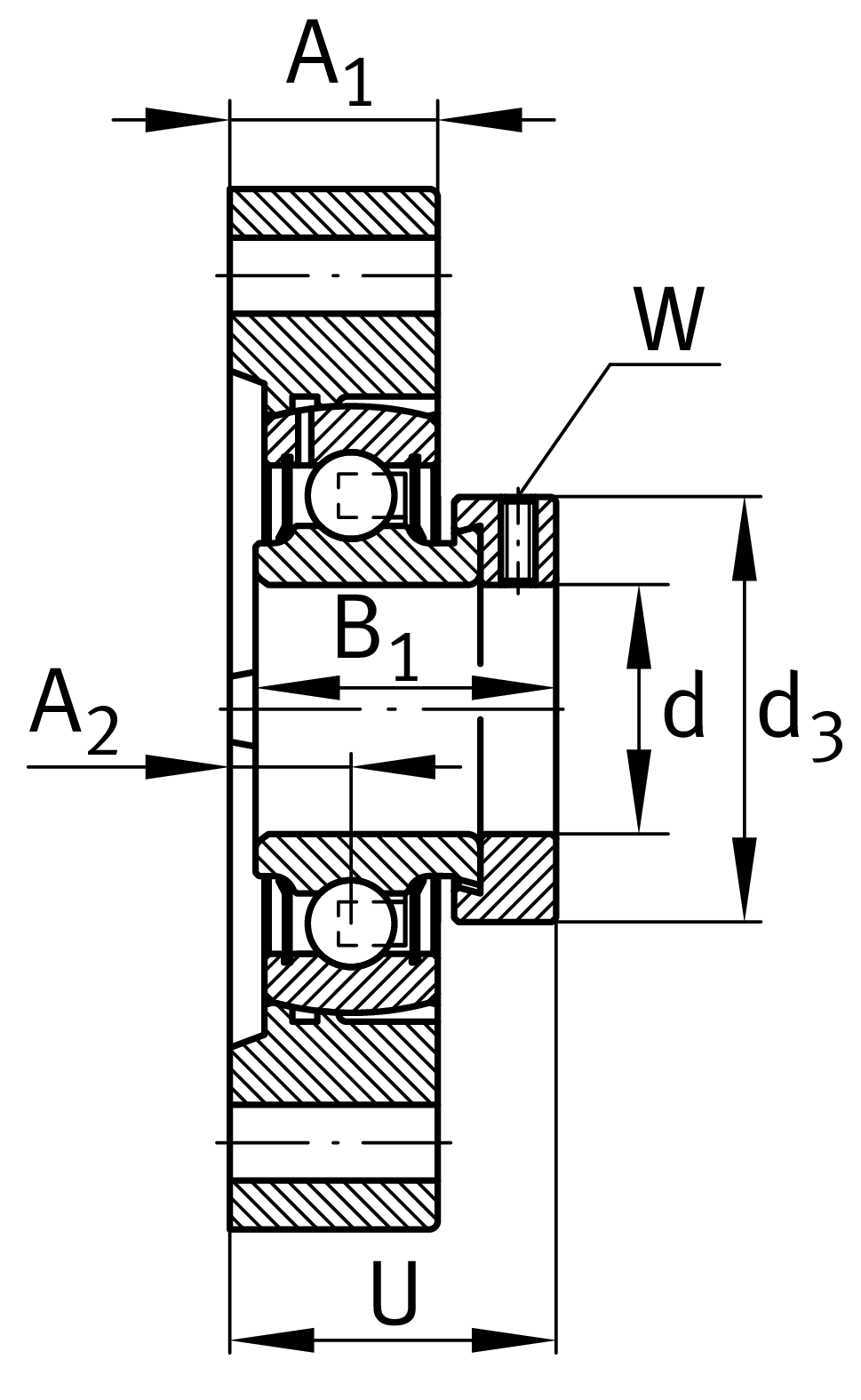

Dimensions
A1
20.5 mm
Thickness of flange
A2
11.5 mm
Distance raceway
B1
35.8 mm
Locking collar total width
Q
1/4-28 UNF
Connection thread for lubrication
d3
44 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
GLCTE06-TV
Housing
GRAE30-NPP-B-FA107/125.5
Bearing designation
KASK06-S-G
Protecting cap

Temperature range
Tmin
-35 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTVPlastic
Manufacturing instructionFA125.5Bearing with Corrotect coating
