Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| L | 84 mm | Flange width |
| H | 112.5 mm | Height flange |
| U | 38.2 mm | Total height unit |
| Cr | 19,500 N | Basic dynamic load rating, radial |
| C0r | 11,300 N | Basic static load rating, radial |
| Cur | 480 N | Fatigue load limit, radial |
| ≈m | 0.74 kg | Weight |

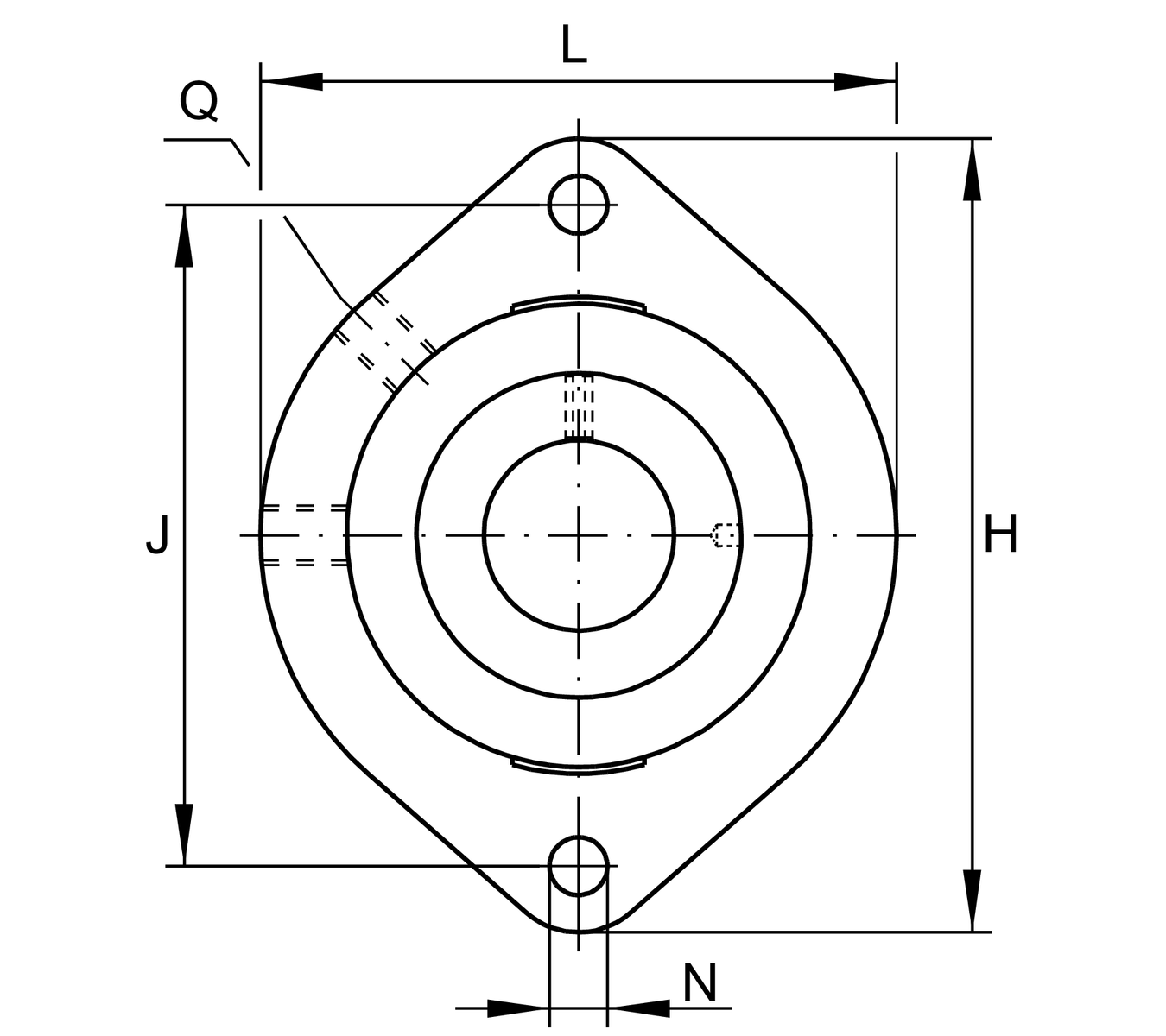

Mounting dimensions
| J | 90.5 mm | Distance fixing bore |
| N | 11.5 mm | Fixing bore |
| W | 4 mm | Width across flats |

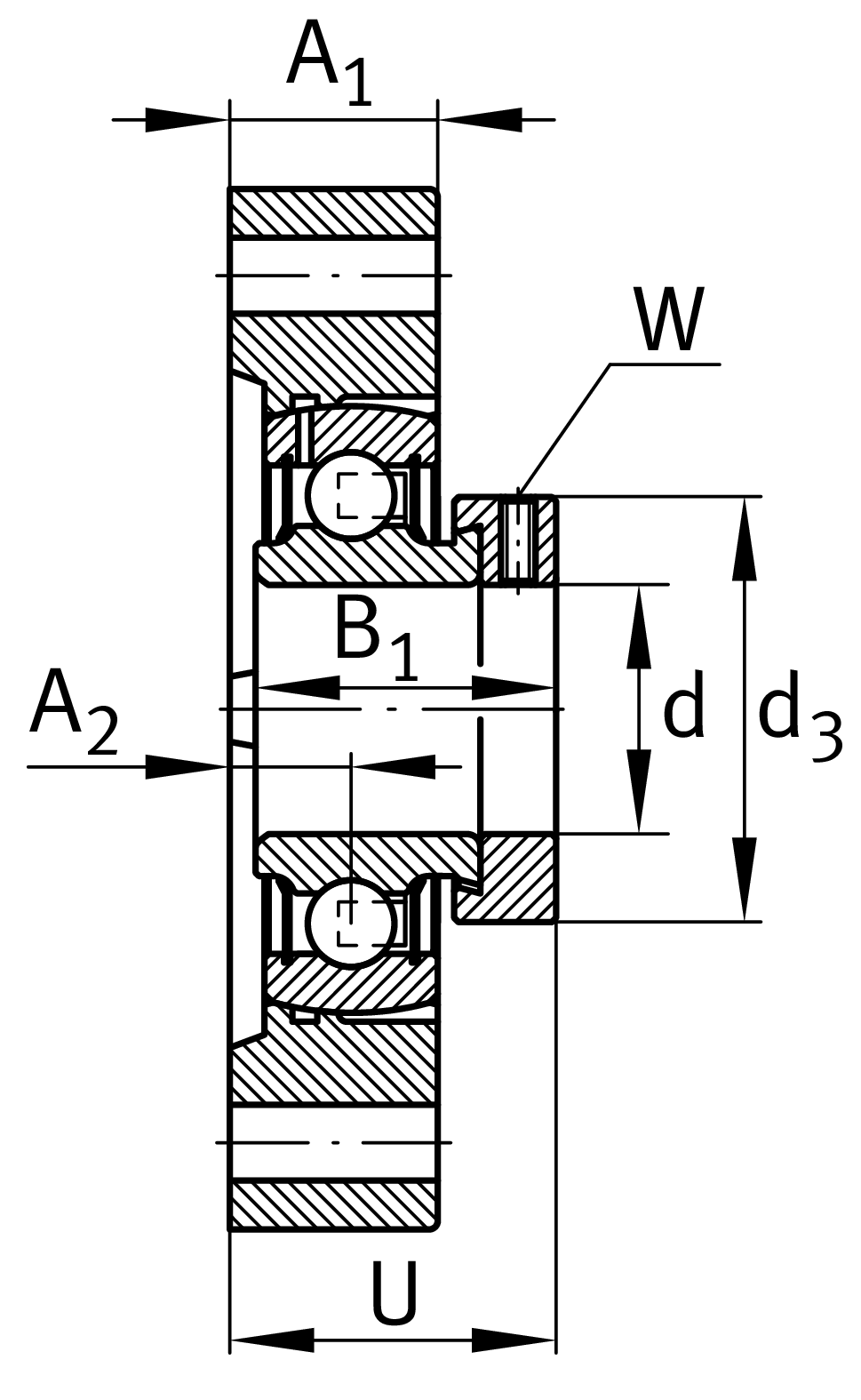

Dimensions
| A1 | 22.5 mm | Thickness of flange |
| A2 | 11.4 mm | Distance raceway |
| B1 | 35.8 mm | Locking collar total width |
| Q | M6 | Connection thread for lubrication |
| d3 | 44 mm | Outside diameter eccentric locking collar |
Additional information
GEHGLCTE06-GG-N-FA125.1 | Housing | |
GRAE30-XL-NPP-B-FA125.5 | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
| Manufacturing instruction | FA125 | Unit with Corrotect coating, corrosion-resistant |
