GLCTE30-TV-VA-FD
Flanged housing unit GLCTE30-TV-VA-FD
Thêm vào yêu cầu báo giá

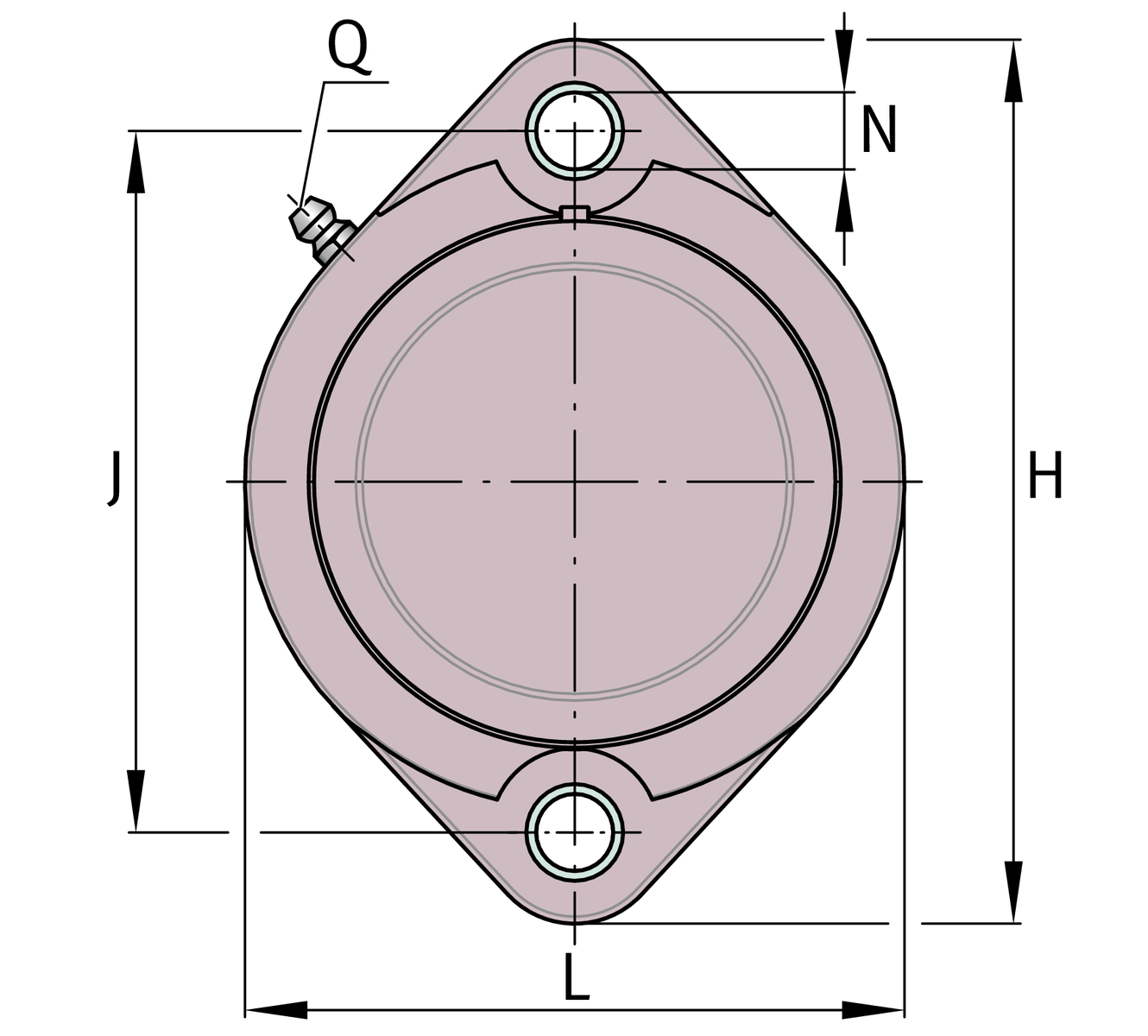

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112 mm
Height flange
U
39.1 mm
Total height unit
Cr
19,460 N
Basic dynamic load rating, radial
C0r
11,310 N
Basic static load rating, radial
Cur
475 N
Fatigue load limit, radial
C0r G
12,000 N
Load carrying capacity (housing)
≈m
0.4 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11 mm
Fixing bore
W
3 mm
Width across flats

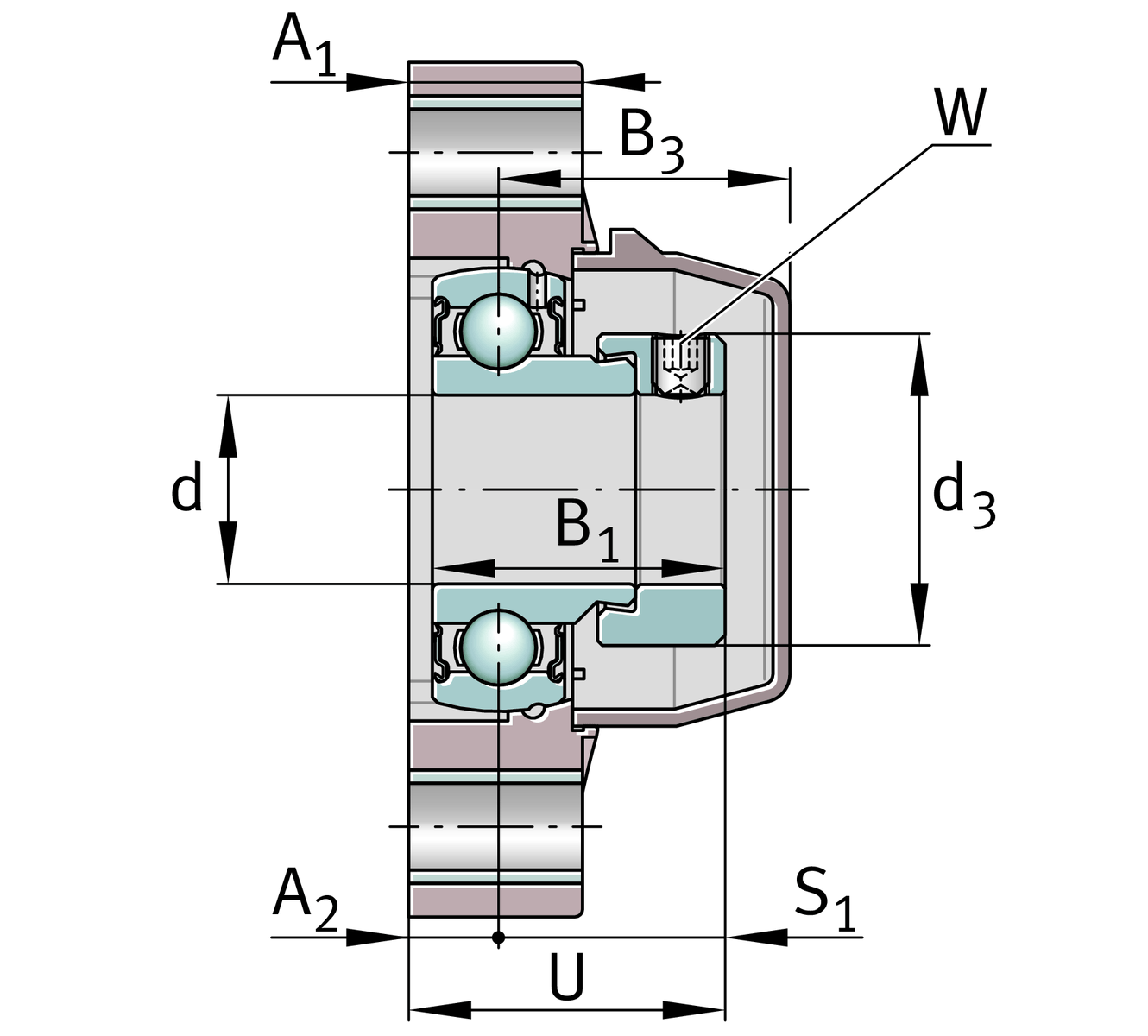

Dimensions
A1
20.5 mm
Thickness of flange
A2
11.4 mm
Distance raceway
B1
35.7 mm
Locking collar total width
B3
38.6 mm
Distance housing centre to cap end
S1
27.7 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
44.5 mm
Outside diameter eccentric locking collar

Additional information
GEH.GLCTE06-TV-WHT
Housing
GE30-KRR-B-FA107-VA-FD
Bearing designation
KASK06-S-G-WHT
Protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTV-FDPlastic for food industry
