TSHE25-XL-N
Plummer block housing unit TSHE25-XL-N
Thêm vào yêu cầu báo giá

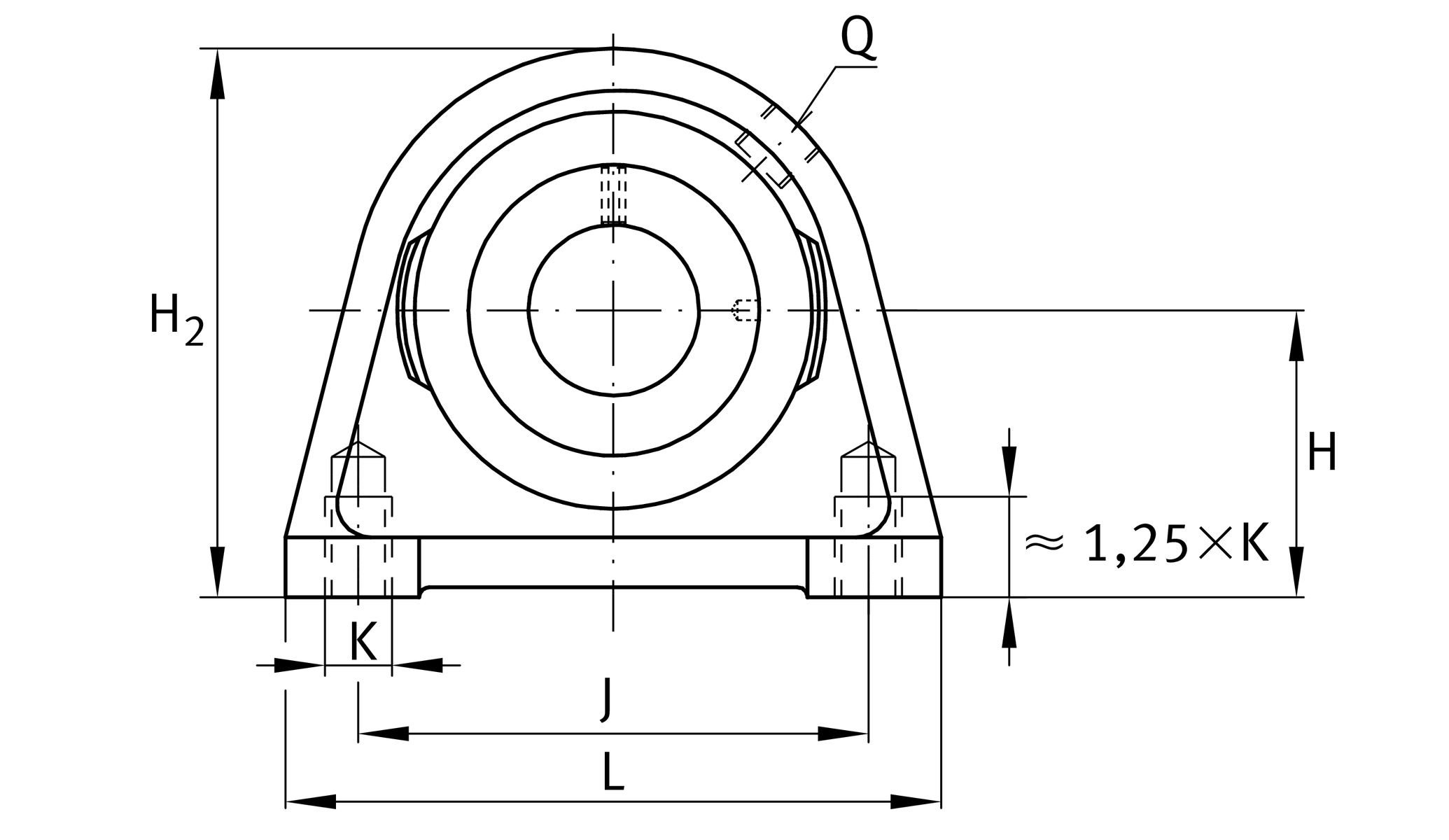

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
70 mm
Length total
H2
70 mm
Height
≈m
0.6 kg
Weight

Mounting dimensions
J
50.8 mm
Distance fixing bore
K
M10
Thread fixing bore

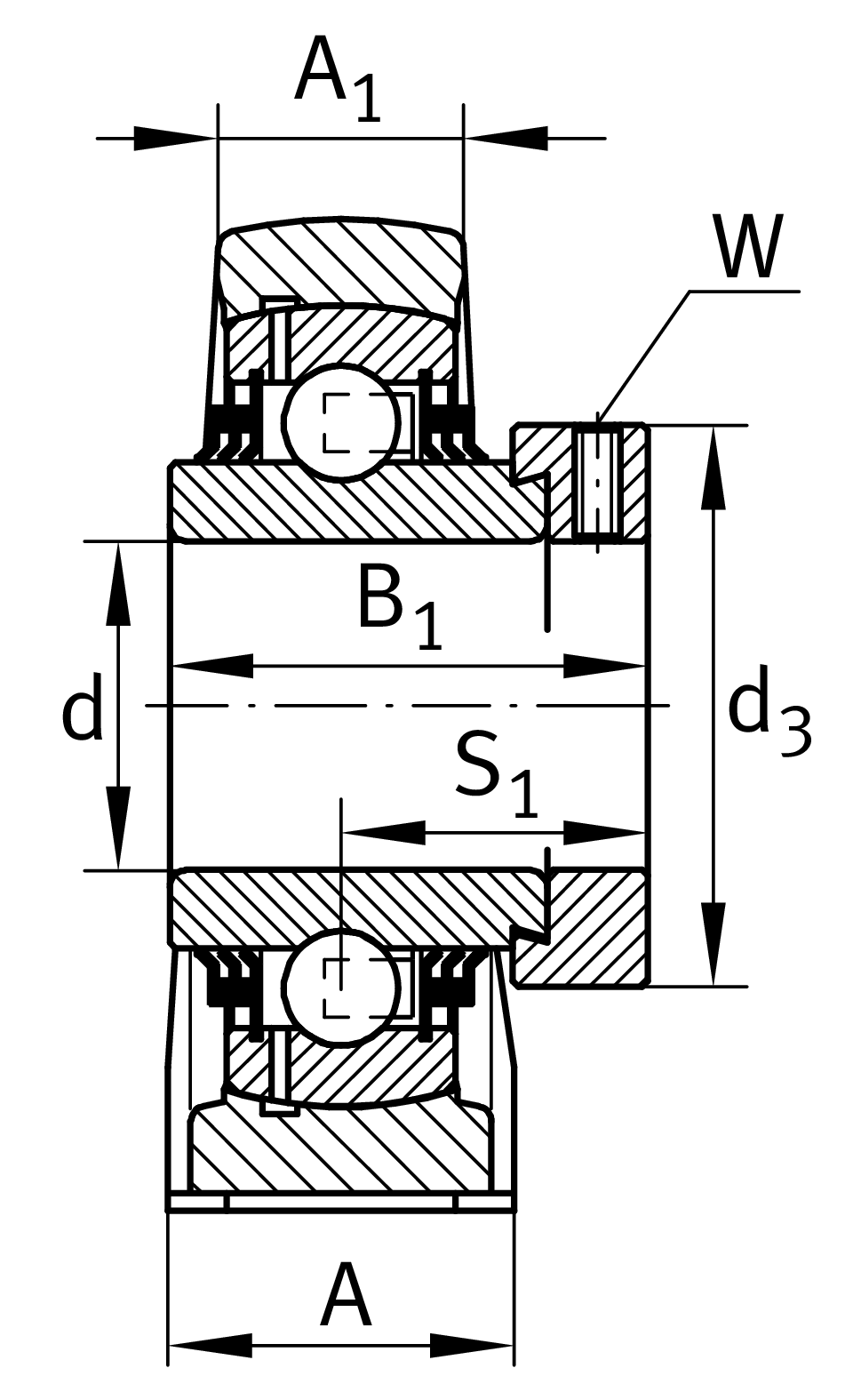

Dimensions
H
36.5 mm
Distance shaft axis
A
36 mm
Width (base)
A1
21 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
27 mm
Distance of raceway to locking collar

Additional information
SHE05
Housing
GE25-XL-KTT-B
Bearing designation
KASK05
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
