TSHE20-XL-N
Plummer block housing unit TSHE20-XL-N
Thêm vào yêu cầu báo giá

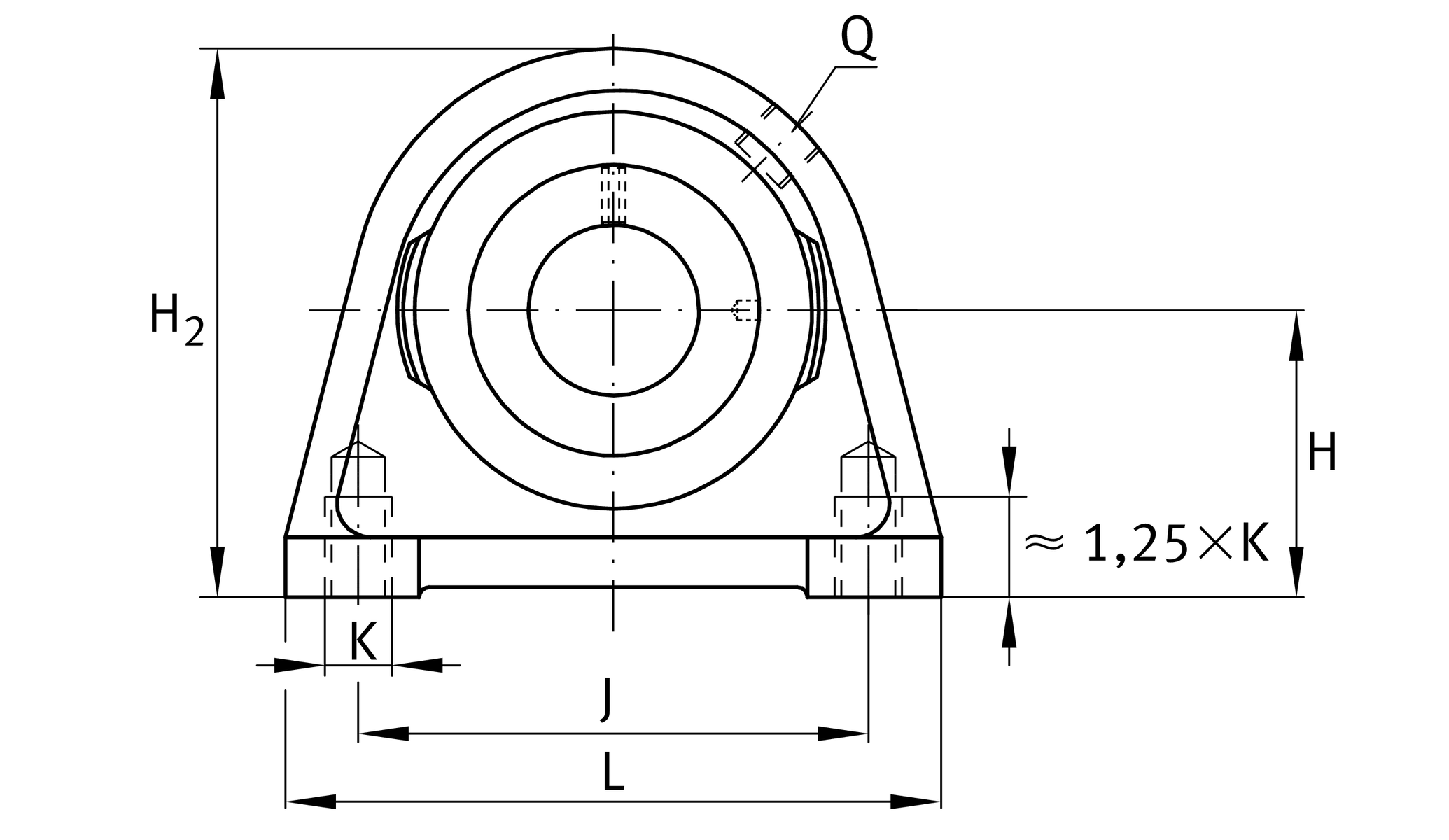

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
65 mm
Length total
H2
64 mm
Height
≈m
0.49 kg
Weight

Mounting dimensions
J
50.8 mm
Distance fixing bore
K
M8
Thread fixing bore

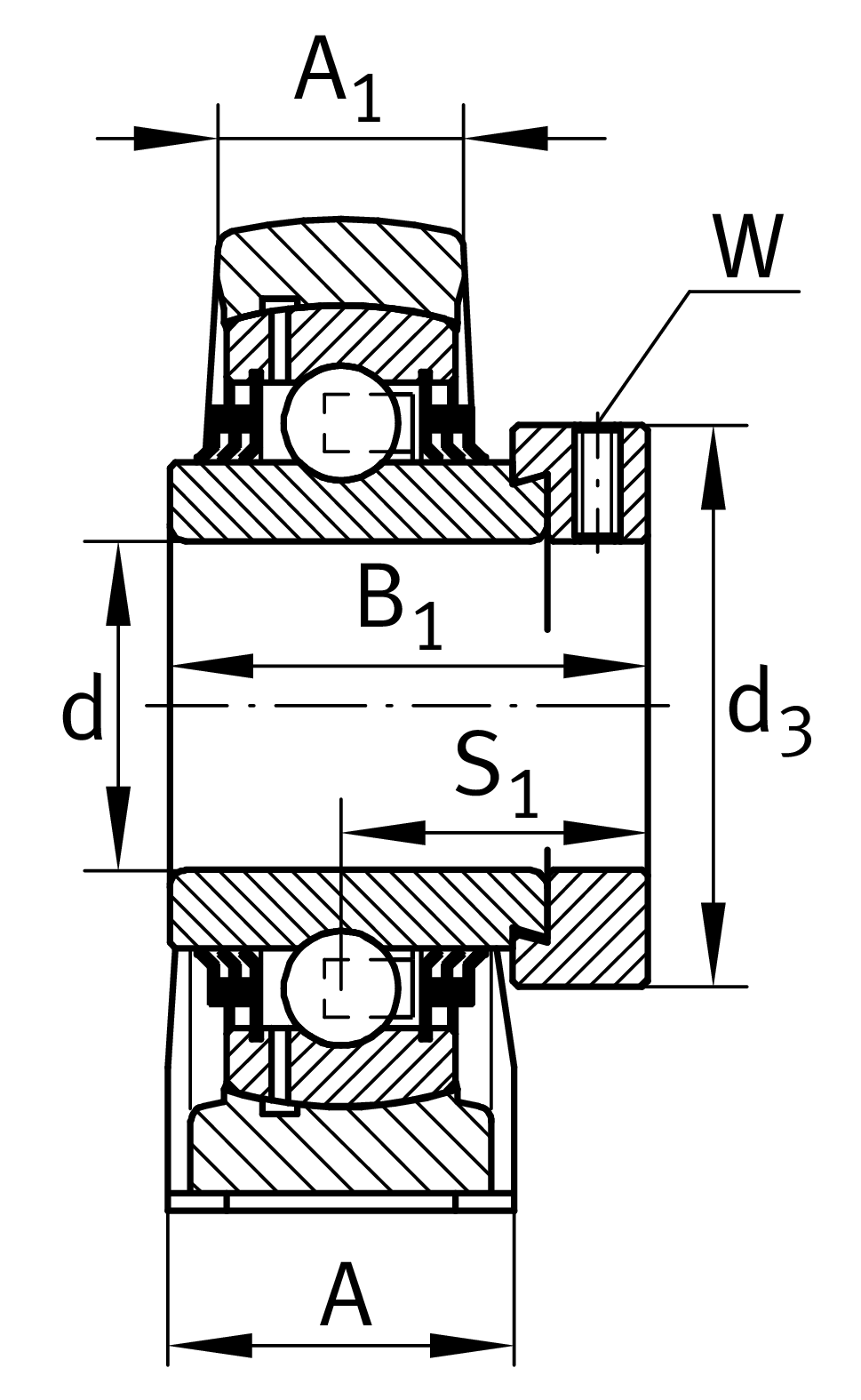

Dimensions
H
33.3 mm
Distance shaft axis
A
32 mm
Width (base)
A1
19 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
26.6 mm
Distance of raceway to locking collar

Additional information
SHE04
Housing
GE20-XL-KTT-B
Bearing designation
KASK04
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
