FAG INA Schaeffler
INA
TSHE30-XL-N
Plummer block housing unit TSHE30-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
98 mm
Length total
H2
82 mm
Height
≈m
0.99 kg
Weight

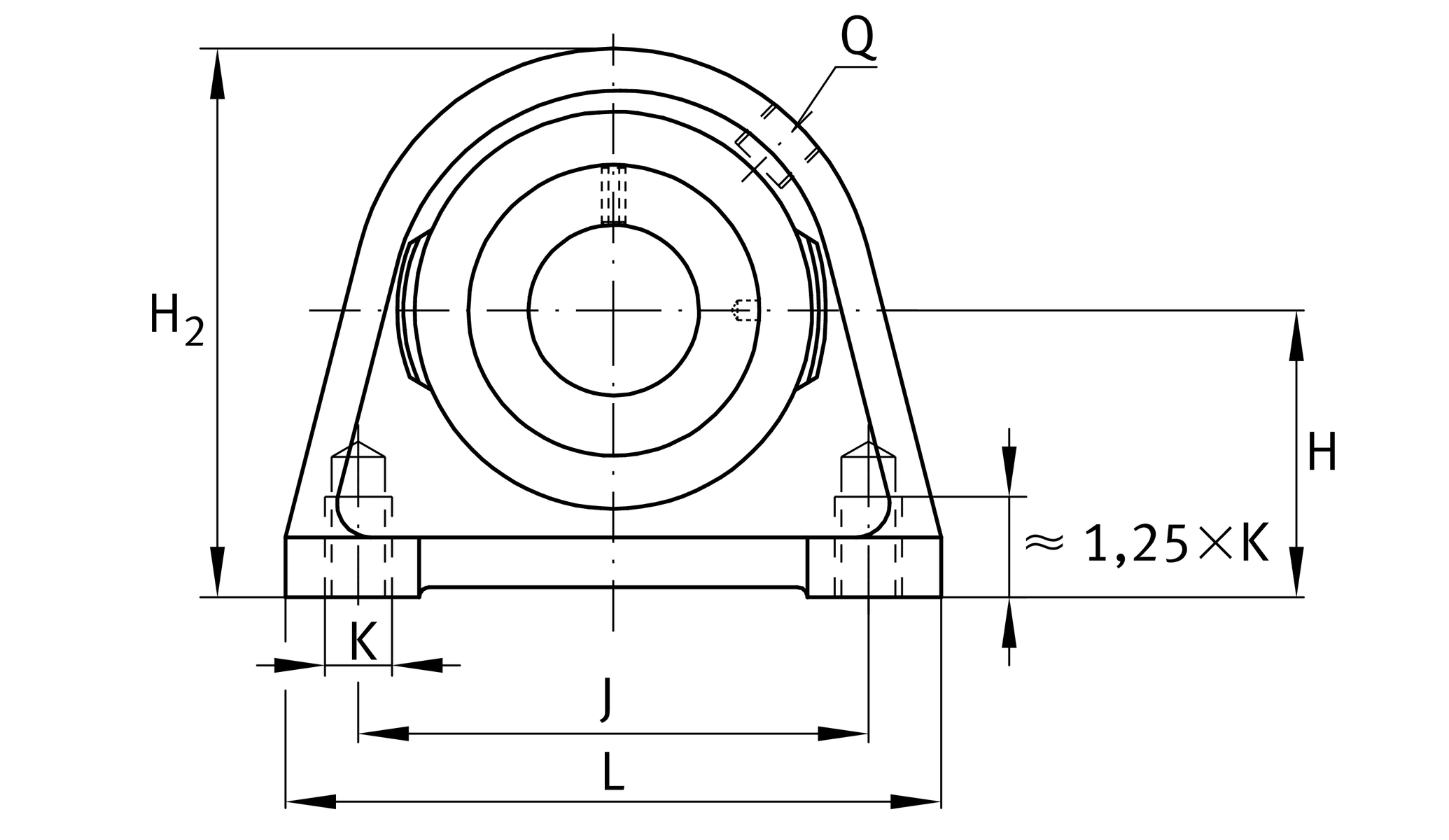

Mounting dimensions
J
76.2 mm
Distance fixing bore
K
M10
Thread fixing bore

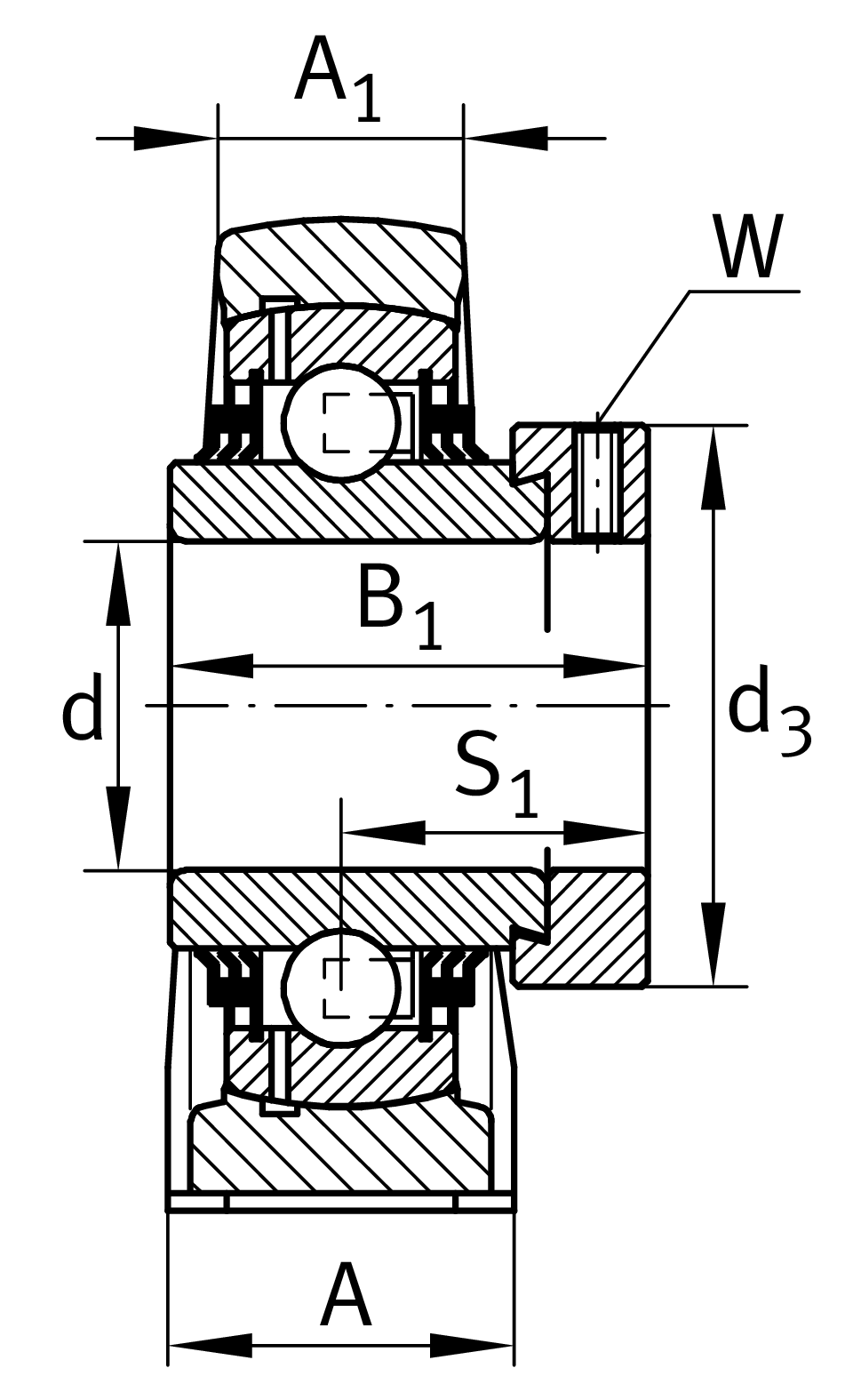

Dimensions
H
42.9 mm
Distance shaft axis
A
40 mm
Width (base)
A1
25 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
30.2 mm
Distance of raceway to locking collar

Additional information
SHE06
Housing
GE30-XL-KTT-B
Bearing designation
KASK06
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
