TSHE35-XL-N
Plummer block housing unit TSHE35-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
103 mm
Length total
H2
93 mm
Height
≈m
1.36 kg
Weight

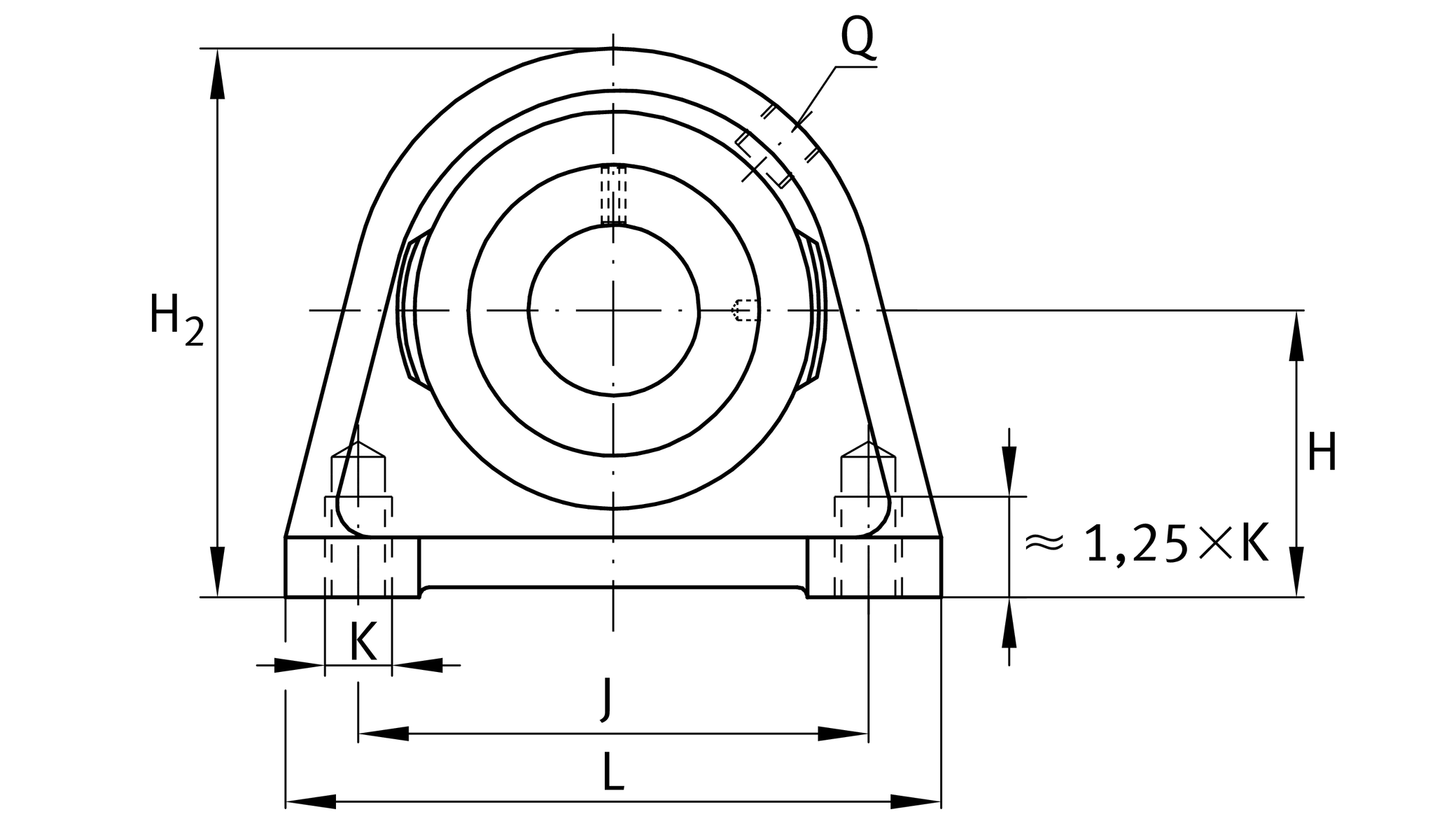

Mounting dimensions
J
82.6 mm
Distance fixing bore
K
M10
Thread fixing bore

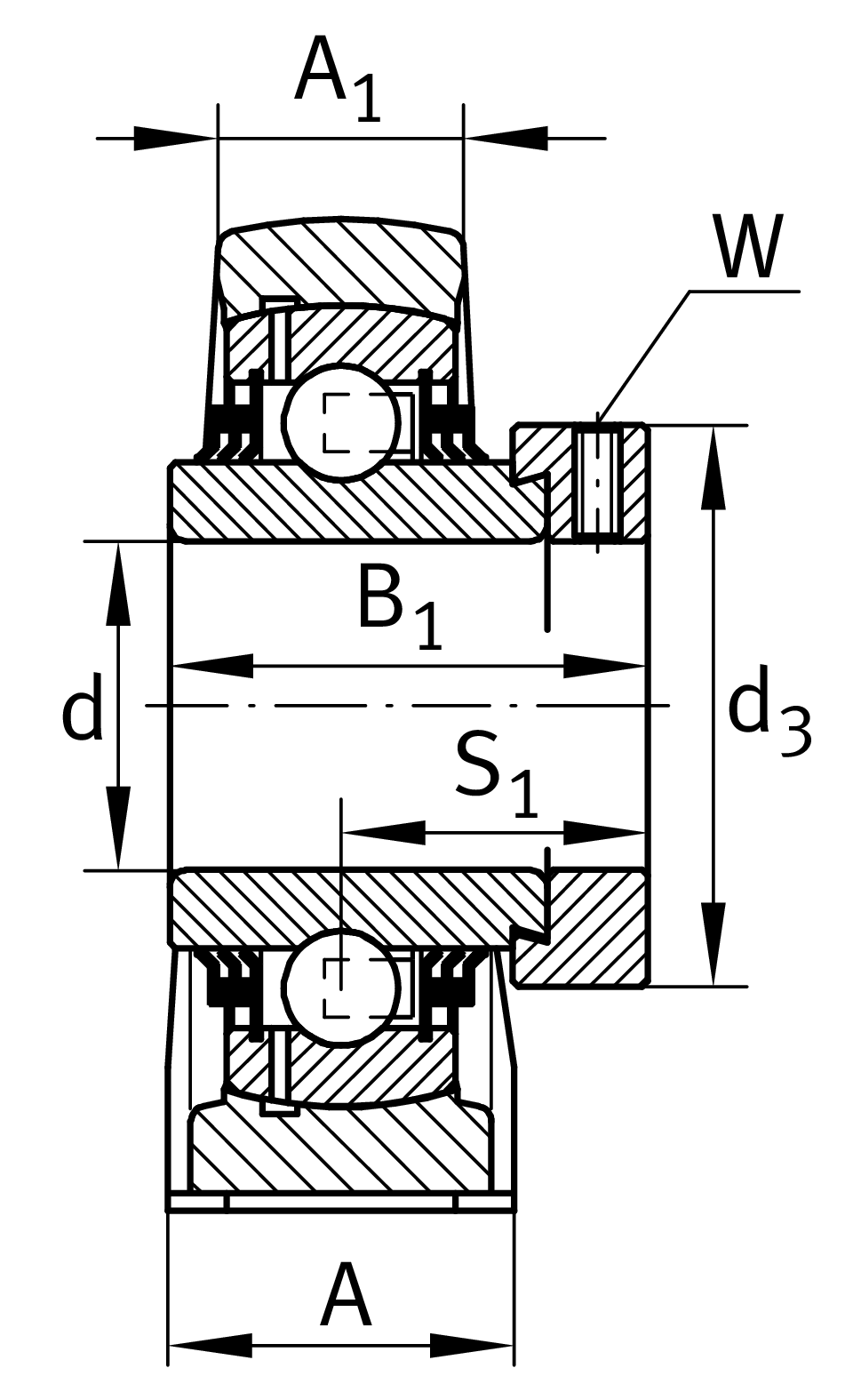

Dimensions
H
47.6 mm
Distance shaft axis
A
45 mm
Width (base)
A1
27 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
32.5 mm
Distance of raceway to locking collar

Additional information
SHE07
Housing
GE35-XL-KTT-B
Bearing designation
KASK07
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
