TSHE40-XL-N
Plummer block housing unit TSHE40-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
116 mm
Length total
H2
99 mm
Height
≈m
1.659 kg
Weight

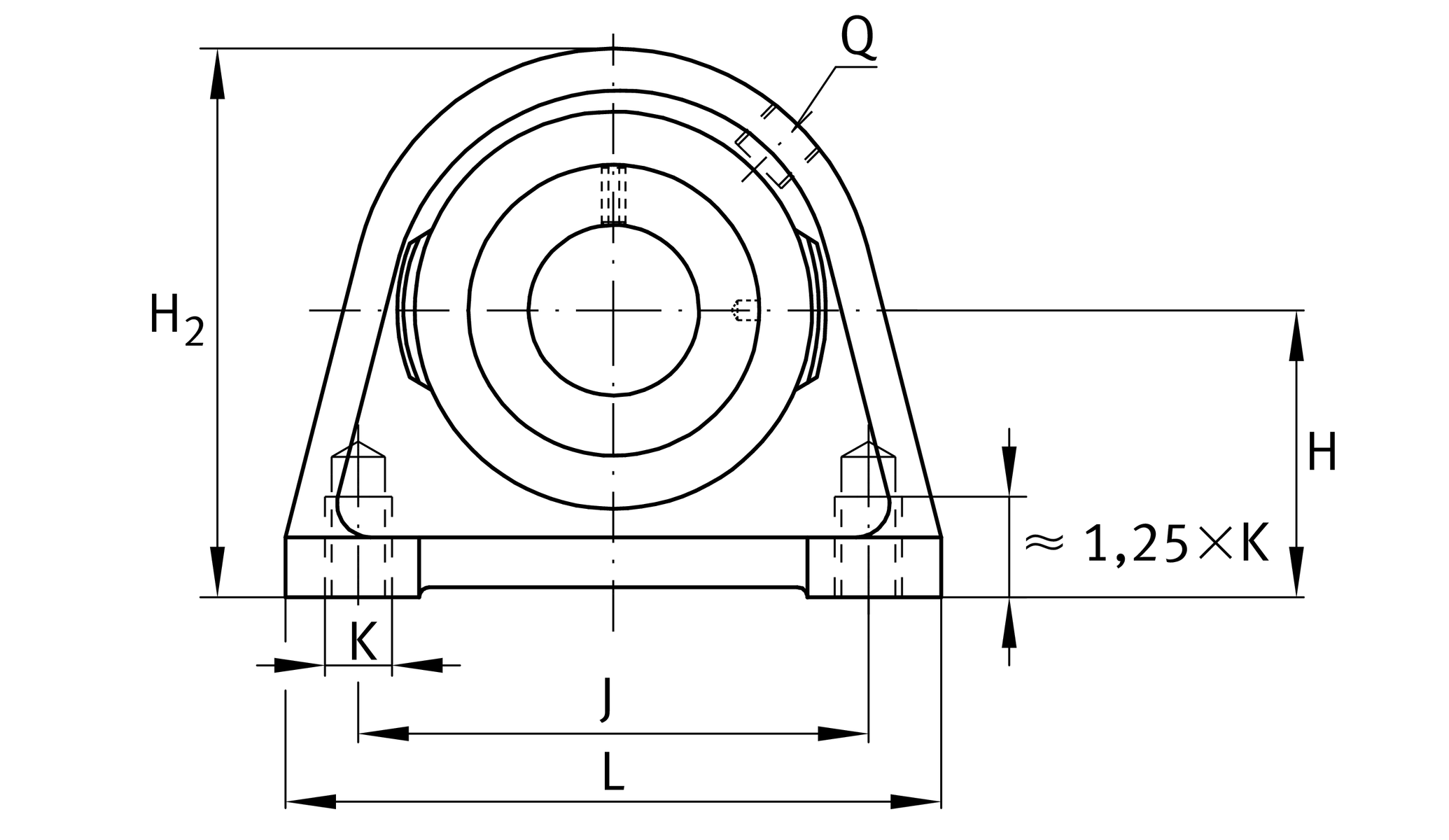

Mounting dimensions
J
88.9 mm
Distance fixing bore
K
M12
Thread fixing bore

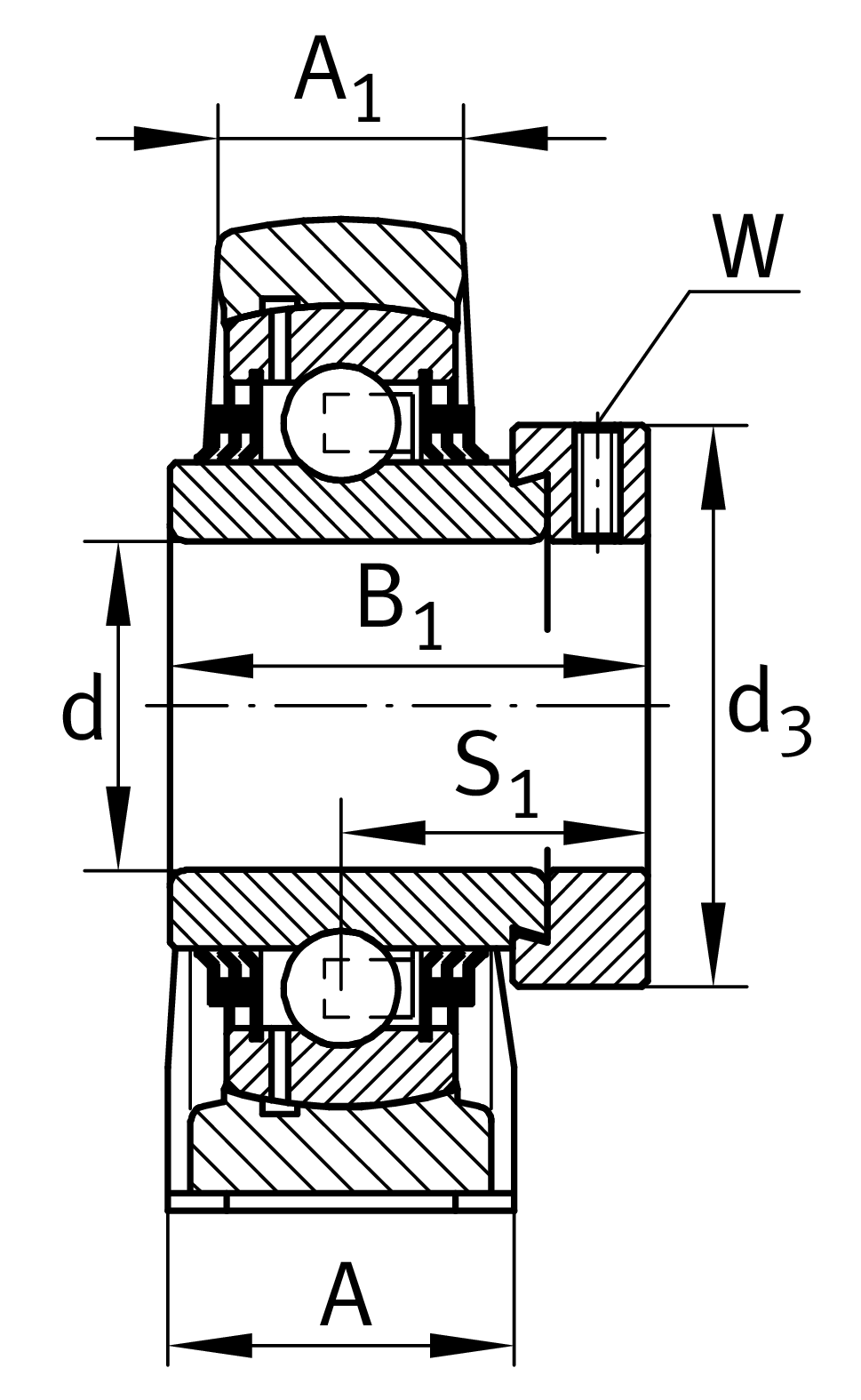

Dimensions
H
49.2 mm
Distance shaft axis
A
48 mm
Width (base)
A1
30 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
35.1 mm
Distance of raceway to locking collar

Additional information
SHE08
Housing
GE40-XL-KTT-B
Bearing designation
KASK08
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
