TSHE50-XL-N
Plummer block housing unit TSHE50-XL-N
Thêm vào yêu cầu báo giá

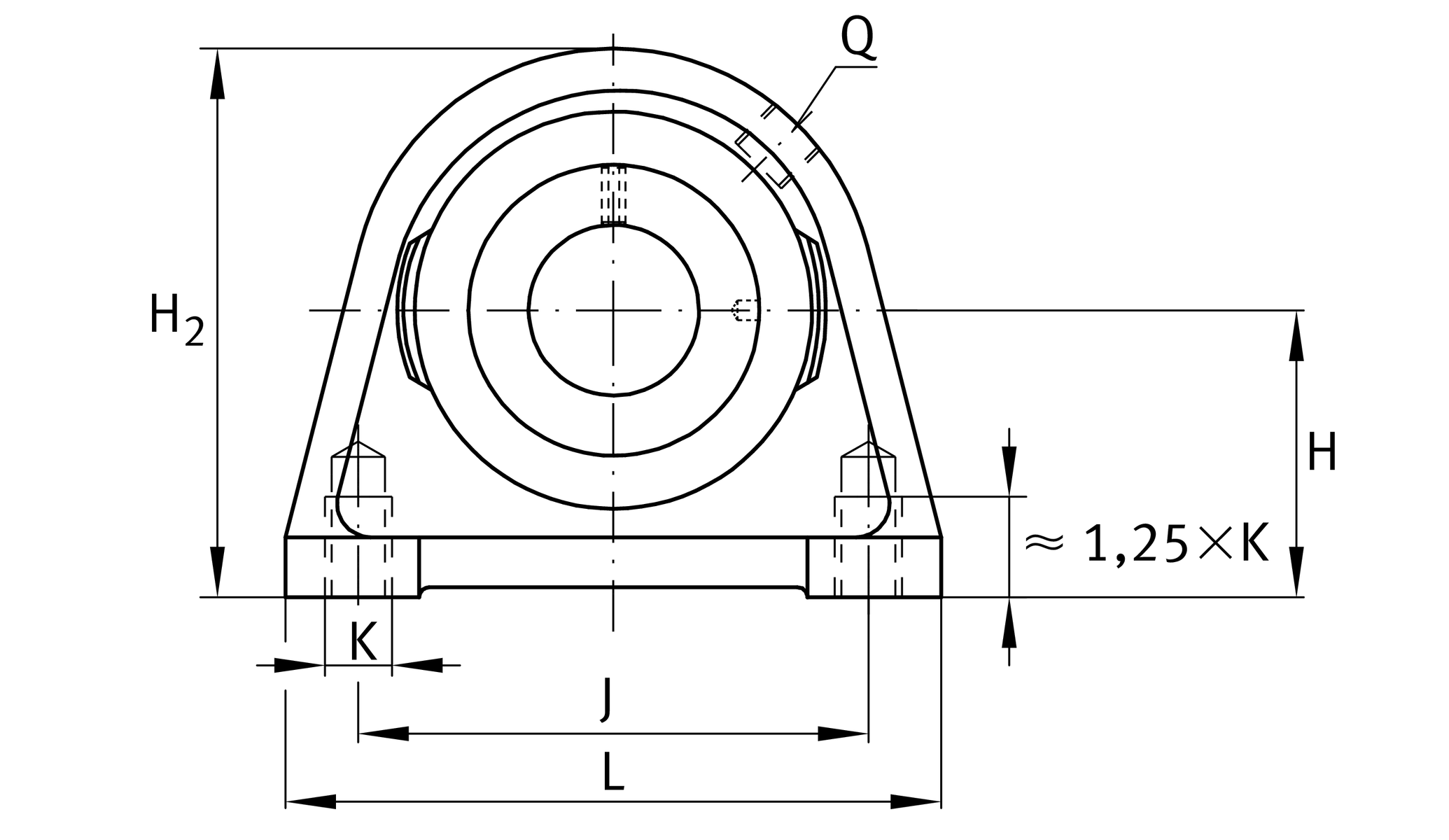

Main Dimensions & Performance Data
d
50 mm
Bore diameter
L
135 mm
Length total
H2
115 mm
Height
≈m
2.47 kg
Weight

Mounting dimensions
J
101.6 mm
Distance fixing bore
K
M16
Thread fixing bore

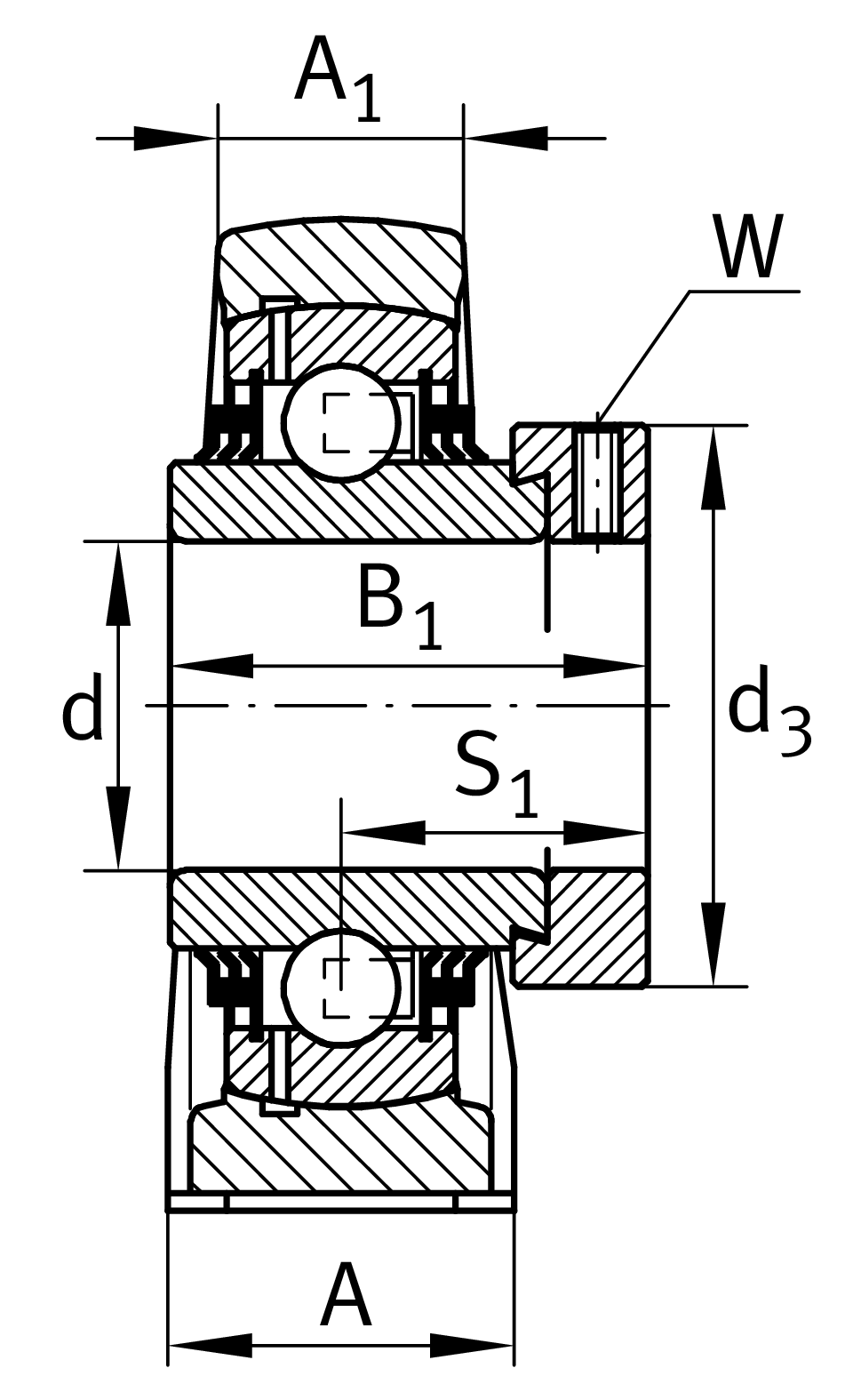

Dimensions
H
57.2 mm
Distance shaft axis
A
54 mm
Width (base)
A1
34 mm
Width (head)
Q
M6
Connection thread for lubrication
S1
38.2 mm
Distance of raceway to locking collar

Additional information
SHE10
Housing
GE50-XL-KTT-B
Bearing designation
KASK10
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
