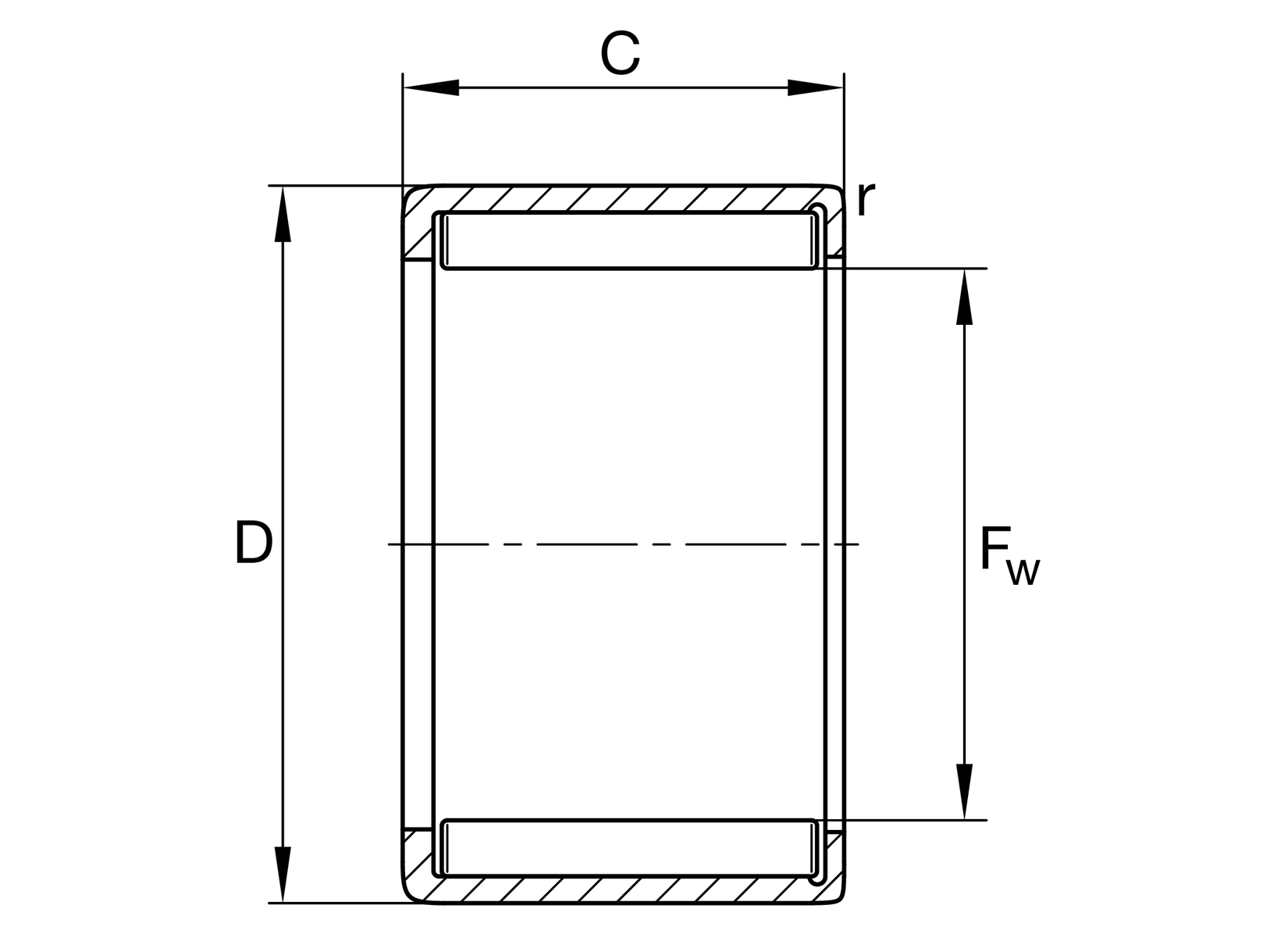

Main Dimensions & Performance Data
| Fw | 17.462 mm | Under roller diameter |
| D | 22.225 mm | Outside diameter |
| C | 9.525 mm | Width, outer ring |
| Cr | 9,300 N | Basic dynamic load rating, radial |
| C0r | 17,100 N | Basic static load rating, radial |
| Cur | 2,360 N | Fatigue load limit, radial |
| nG Grease | 6,300 1/min | Limiting speed for grease lubrication |
| ≈m | 8.53 g | Weight |
Dimensions
| rmin | 0.31 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
