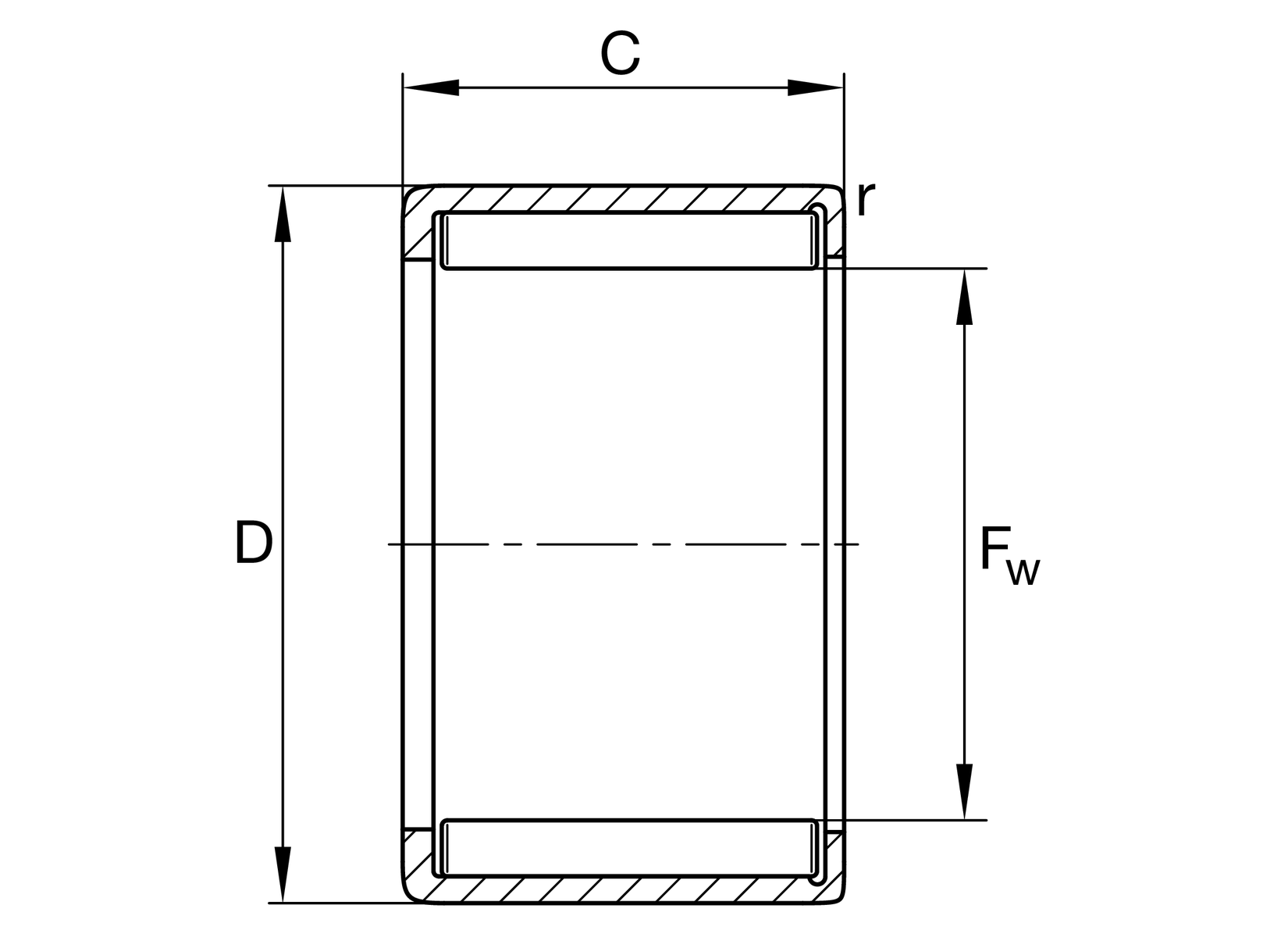

Main Dimensions & Performance Data
| Fw | 15.875 mm | Under roller diameter |
| D | 20.638 mm | Outside diameter |
| C | 7.938 mm | Width, outer ring |
| Cr | 7,400 N | Basic dynamic load rating, radial |
| C0r | 12,400 N | Basic static load rating, radial |
| Cur | 1,620 N | Fatigue load limit, radial |
| nG Grease | 6,800 1/min | Limiting speed for grease lubrication |
| ≈m | 6.65 g | Weight |
Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
