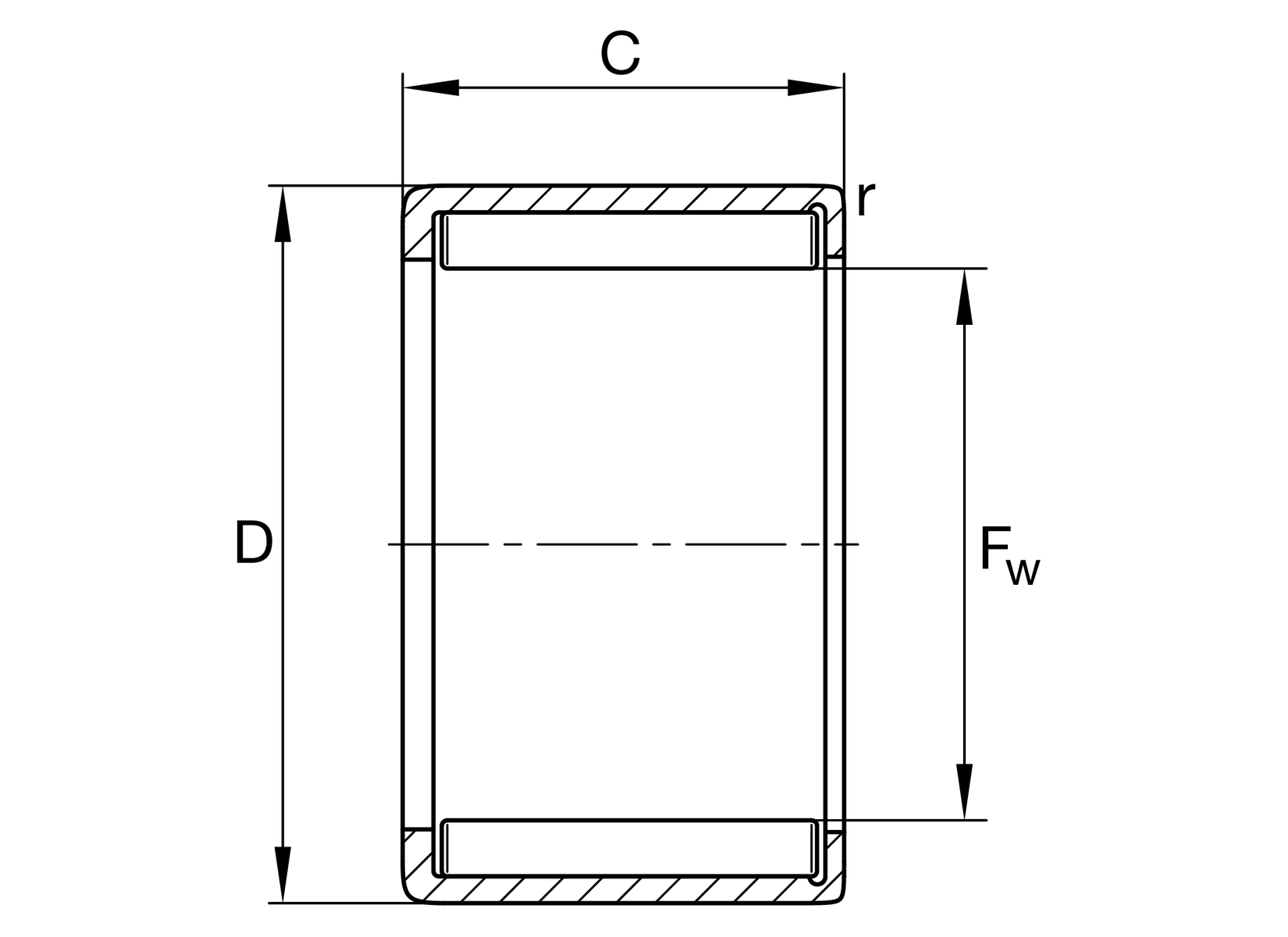

Main Dimensions & Performance Data
| Fw | 31.75 mm | Under roller diameter |
| D | 38.1 mm | Outside diameter |
| C | 31.65 mm | Width, outer ring |
| Cr | 47,000 N | Basic dynamic load rating, radial |
| C0r | 129,000 N | Basic static load rating, radial |
| Cur | 19,000 N | Fatigue load limit, radial |
| nG Grease | 3,500 1/min | Limiting speed for grease lubrication |
| ≈m | 71.04 g | Weight |
Dimensions
| rmin | 0.5 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
