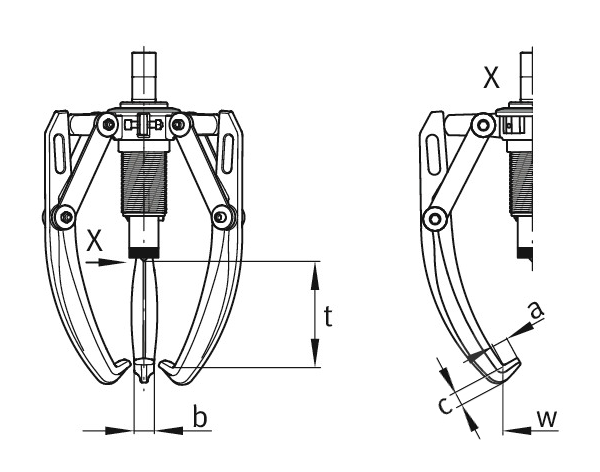

Technical data
| wmin | 160 mm | Grip width, min. |
| wmax | 860 mm | Grip width, max. |
| tmax | 455 mm | Grip depth, max. |
| a | 23 mm | |
| b | 60 mm | |
| c | 35 mm | |
159 mm | Stroke | |
| FP | 490 kN | Pulling force |
| ≈m | 140 kg | Weight |
Additional information
two- or three-arm puller (convertible); separate hand pump required | Usability | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
Your current product variant
| Series | HXP | 2/3-Arm, self-centering with separate hand pump |
