Technical data

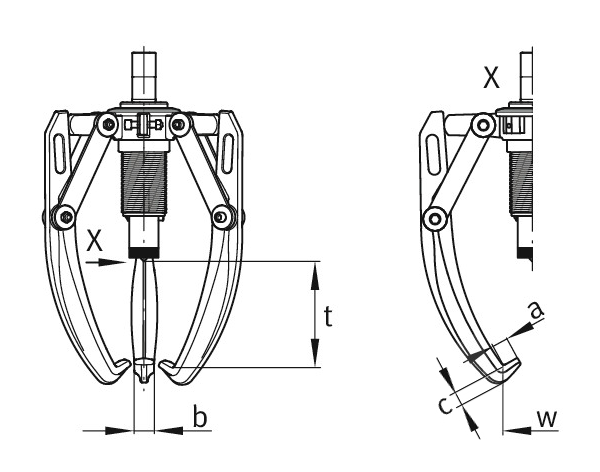

| wmin | 120 mm | Grip width, min. |
| wmax | 620 mm | Grip width, max. |
| tmax | 415 mm | Grip depth, max. |
| a | 20 mm | |
| b | 33 mm | |
| c | 27 mm | |
111 mm | Stroke | |
| FP | 290 kN | Pulling force |
| ≈m | 34 kg | Weight |
Additional information
two- or three-arm puller (convertible); separate hand pump required | Usability | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
Your current product variant
| Series | HXP | 2/3-Arm, self-centering with separate hand pump |
