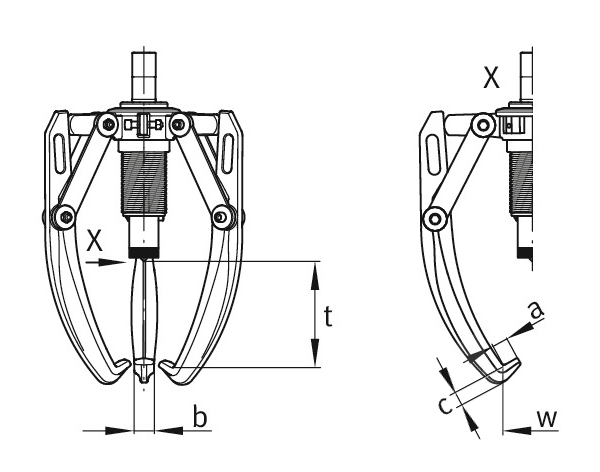

Technical data
| wmin | 110 mm | Grip width, min. |
| wmax | 520 mm | Grip width, max. |
| tmax | 325 mm | Grip depth, max. |
| a | 15 mm | |
| b | 29 mm | |
| c | 16.5 mm | |
111 mm | Stroke | |
| FP | 190 kN | Pulling force |
| ≈m | 24 kg | Weight |
Additional information
two- or three-arm puller (convertible); separate hand pump required | Usability | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
Your current product variant
| Series | HXP | 2/3-Arm, self-centering with separate hand pump |
