HXP-123
Hydraulic two-/three-arm puller HXP-123
Thêm vào yêu cầu báo giá

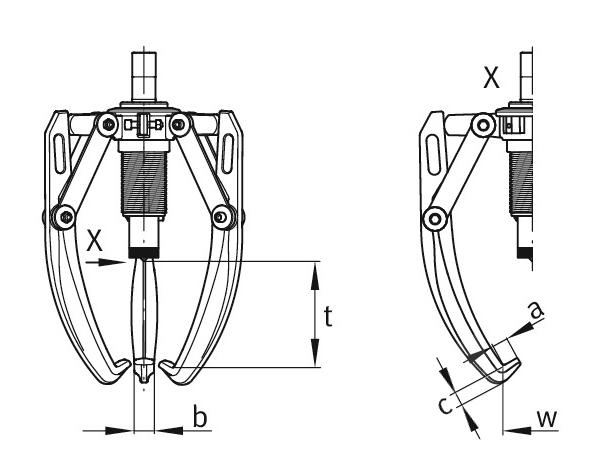

Technical data
wmin
100 mm
Grip width, min.
wmax
515 mm
Grip width, max.
tmax
300 mm
Grip depth, max.
a
13 mm
b
27.5 mm
c
13 mm
85 mm
Stroke
FP
110 kN
Pulling force
≈m
11.7 kg
Weight

Additional information
two- or three-arm puller (convertible); separate hand pump required
Usability
Safety net or safety blanket, thrust piece, extension adapter, carrying case
Included in delivery

Your current product variant
SeriesHXP2/3-Arm, self-centering with separate hand pump
